Codix 143
Codix 143

Service counter electronic

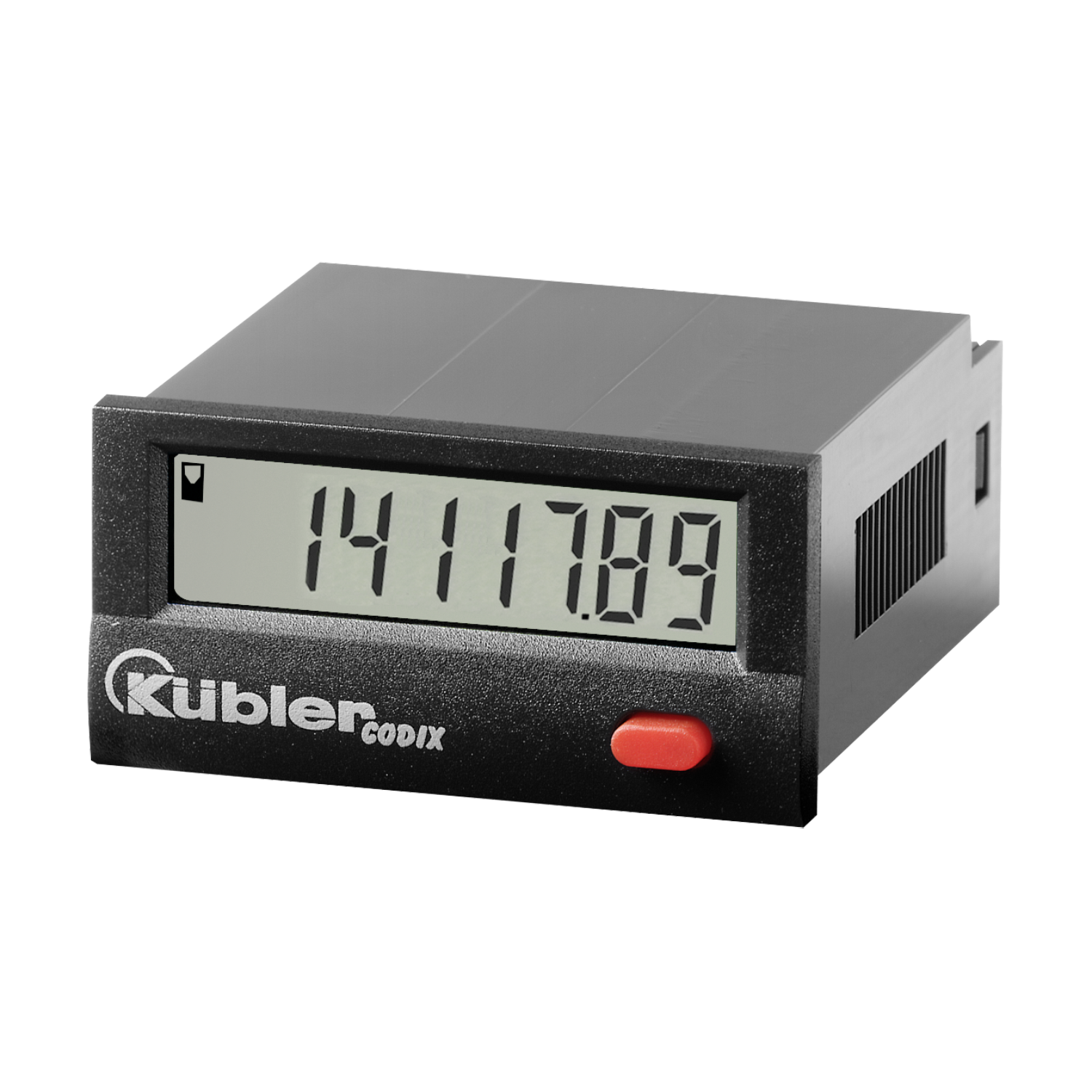

Codix 143

  • Manual / electric reset
  • Optionally factory programmable
  • Output signal and message text on reaching the preset
  • Dimension
    · 48 x 24 mm | 45 x 22 mm
  • Power supply:
      · 10...30 V DC
  • Display 7-digit number, LCD

Service time counter for PNP, NPN input signals.

The service counter Codix 143 is a voltage supplied simple hour meter, with 7-digit LCD display for PNP, NPN input signals, optionally factory programmable.

Mechanical
Model electronic
Function Hour meters / timers
Dimension 1 48 x 24 mm | 45 x 22 mm
Protection level IP65
Working temperature -20 °C ... +65 °C
Weight 40 g
Reset electronic

(1) Front panel size | Panel cut-out
Electrical
Power supply 10...30 V DC
Signal input NPN
PNP
Functional
  • Direct display of the total time
  • Display of the service preset and its distant signal at the touch of a button
  • Preset output as display text and transistor output
  • Distant signal for the service intervals as display text
  • Manual or electrical reset of display or service intervals
  • Fast PNP or damped NPN control via separate inputs
User-friendly
  • Power supply from 10 to 30 V
  • Storage of values in EEPROM
  • Service intervals preprogrammed e.g.: Service at 5000.00 h (Service), warning signal at 4900.00 h (Preservice), flashing text message in the display (Service or Preservice)
  • Reset button with multiple function lockable via separate input
  • Reset to delivery status also possible
  • Factory programmable
Data sheet

Codix 141 / 143

PDF ∼ 604,7 KB | 08.2024
DE
EN
FR
Operation Manual

Codix 141 / 143

Multilingual: German, English, English (USA), French, Italian, Spanish
PDF ∼ 2,9 MB | 03.2023

Declaration of conformity

Codix 140 / 141 / 142 / 143 CE

Multilingual: German, English, French
PDF ∼ 103,0 KB | 04.2022

Mechanical CAD / STEP

Codix 143

∼ 2,2 MB | 02.2014

Electronic CAD / ePlan

Codix 143

ZIP ∼ 1,4 MB | 03.2021

Accessories

Bezel adapter set

Bezel adapter set

Adapter front frame 72x36mm to 48x24mm for cutout 68x33mm to cutout 45x22.2mm. Available as a set in black and silver anodized.

2 front frame black and silver, 1 balance frame.
162.704.set
Data sheet
Adapter front bezel
DE EN FR

Blind housing 13x, 14x

Blind housing 13x, 14x

Blind housing for 22.2x45mm and 25x50mm cutout.

Blind housing, clamping bracket, seals, adapter front frame.
G.003.836
Data sheet
Enclosure blind
DE EN FR

Sealing cover K1

Sealing cover K1

Flexible sealing cap for front frame F1B and adapter front frame N003001 made of soft PVC with painted sheet steel frame and mounting screws. IP65 protection according to DIN 40050 when installed. Suitable for B15.31, B16.31, B16.30, B18.30, F1B15.01, F1B16.01, F1B16.00 and F1B18.00. With adapter frame N.003.001 for 130, 131, 132, 133, 134, 135, 136, 140, 141, 142, 143, 520, 521, 522, 523, 524, 52U, 52P, 52T.

Sealing cap (PVC) with sheet steel frame, 2 mounting screws M4x15.
Grau G.008.300
Schwarz G.008.301
Data sheet
Sealing cover
DE EN FR

Mounting frame, 24x48

Mounting frame, 24x48

For the installation of all counters, timers, process devices with DIN dimensions 24x48mm or 50x25mm. Cutout 25x50mm. For snap-on mounting on 35mm DIN top hat rail.

Meter holder (chrome-plated sheet steel), DIN hat-rail adapter (fiber-reinforced polyamide).
G.300.004
Data sheet
Mounting frame
DE EN FR

Bezel adapter

Bezel adapter

Adapter front frame 50x60mm for cutout F1B 54x29mm to 45x22.2mm for screw fastening with seal. Available in black.
N.003.001
Data sheet
Adapter front bezel (2)
DE EN FR

Transparent cover, lockable

Transparent cover, lockable

Screw-on transparent cover for front frame F1B and adapter front frame N003001, 1 DV, lockable for dimension F1. With seal over M4 mounting screws with own frame. Suitable for B15.31, B16.31, B16.30, B18.30, F1B15.01, F1B16.01, F1B16.00 and F1B18.00. With adapter frame N.003.001 for 130, 131, 132, 133, 134, 135, 136, 140, 141, 142, 143, 520, 521, 522, 523, 524, 52U, 52P, 52T.

Transparent cover, seal, 2 mounting screws.
N.003.002
Data sheet
Transparent cover 2
DE EN FR

Sealing gasket N.511029

Sealing gasket N.511029

Outer dimension: 48 x 24 [1.89 x 0.945"]
Inner dimension: 45 x 22 [1.772 x 0.866"]
N.511029
Data sheet
Gaskets
DE EN FR

Bezel adapter 37.1

Bezel adapter 37.1

Adapter front frame 37.1 for front panel cutout 50x25mm to 45x22.2mm with screw fastening. Available in black, gray and anthracite.
Schwarz T.008.161
Anthrazit T.008.181
Data sheet
Adapter front bezel
DE EN FR

Slip on bezel 37.2

Slip on bezel 37.2

Adapter front frame 37.2 for front panel cutout 50x25mm to 45x22.2mm. Available in black, gray and anthracite.
Schwarz T.008.165
Anthrazit T.008.180
Data sheet
Adapter front bezel
DE EN FR

Bezel adapter

Bezel adapter

Adapter front frame 48x48mm to 48x24mm for cutout 45x45mm to cutout 45x22.2mm. Available in black.
T.008.883
Data sheet
Adapter front bezel (2)
DE EN FR
