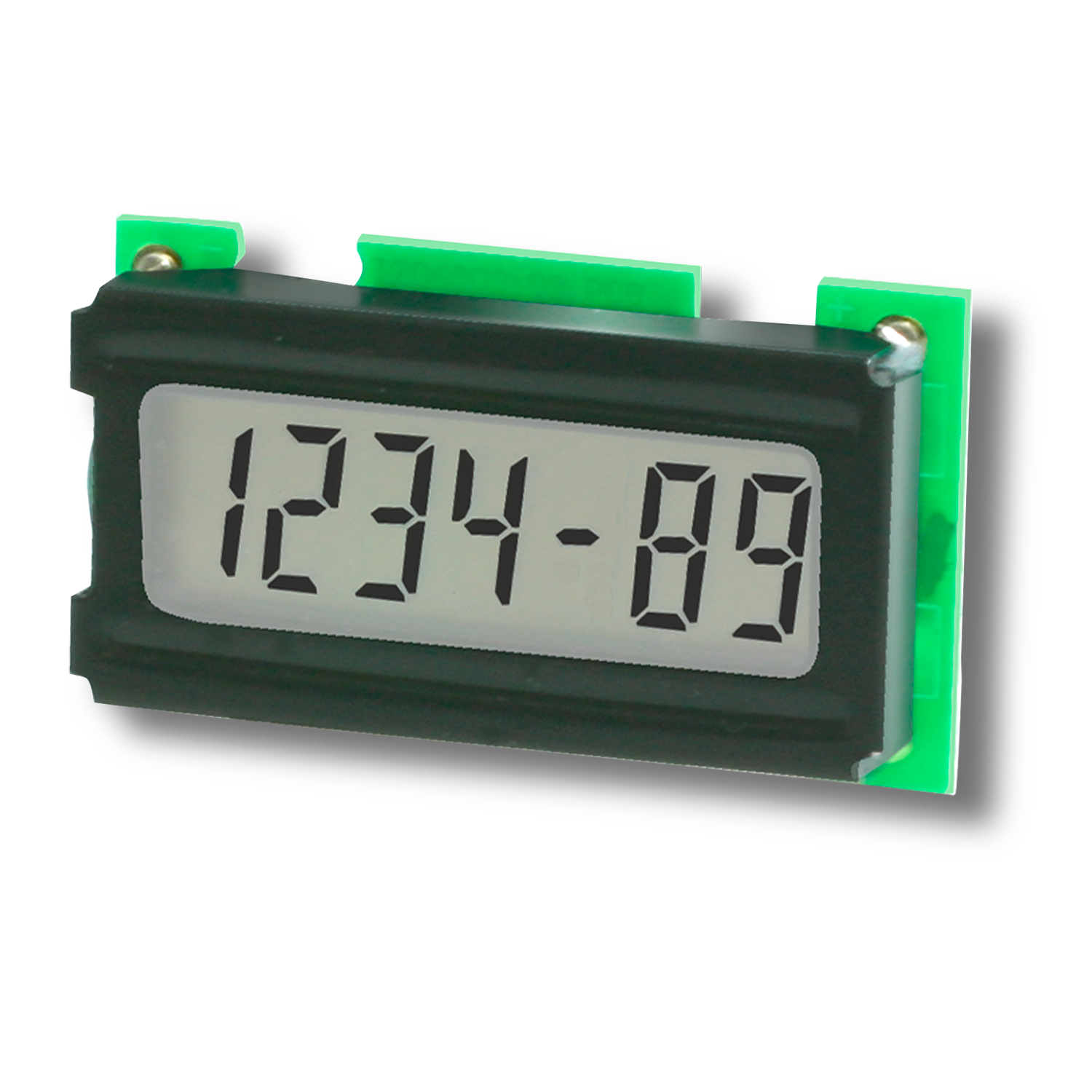

Hour meter electronic

194

  • Display range up to 9999-99 hours
  • Wide temperature range
  • Electrical reset
  • Dimension
    · 32 x 19 mm
  • Power supply:
      · 4,75...15 V DC
      · 9...60 V DC
  • Display 6-digit number, LCD

Hour meter with 2 voltage ranges.

The time counter module type 194 for circuit board mounting with 6-digit LCD display has 2 voltage ranges (4.75 to 15 V DC and 9 to 60 V Due to the very wide temperature range it is extremely robust and suitable for many applications.

Mechanical
Model electronic
Function Hour meters / timers
Dimension 1 32 x 19 mm
Working temperature -40 °C ... +85 °C
Weight 8 g

(1) Front panel size | Panel cut-out
Electrical
Power supply 4,75...15 V DC
9...60 V DC
Signal input PNP
Efficient
  • Display range up to 9999-99 hours
  • 6-digit LCD display, 6 mm high
  • Low power consumption
  • Wide voltage and temperature range
  • High shock and vibration resistance
Simple
  • Non-volatile memory (no battery)
  • Counting start with power supply applied
  • Electrical reset
  • Very high reliability
  • Small size and very reasonable price
Data sheet

194

PDF ∼ 799,9 KB | 03.2024
DE
EN
FR
Declaration of conformity

Codix 190 / 194 CE

Multilingual: German, English, French
PDF ∼ 101,6 KB | 04.2022

Mechanical CAD / STEP

194

∼ 393,8 KB | 10.2020

Electronic CAD / ePlan

194

ZIP ∼ 1,3 MB | 03.2021
