Position displays with limit values electronic

570T

  • SSI formats
    from 8 to 32 bits
  • 4 switching and/or 2 relay outputs and RS232 interface
  • Scalable analog output
  • New: Tachometer
  • Dimension
    · 96 x 48 mm | 92 x 45 mm
  • Power supply:
      · 115 V AC
      · 230 V AC
      · 18...30 V DC
  • Display 8-digit number, LCD Touchscreen
Analog ±10 V
RS232
RS485
TTL / RS422
Modbus
SSI, binary

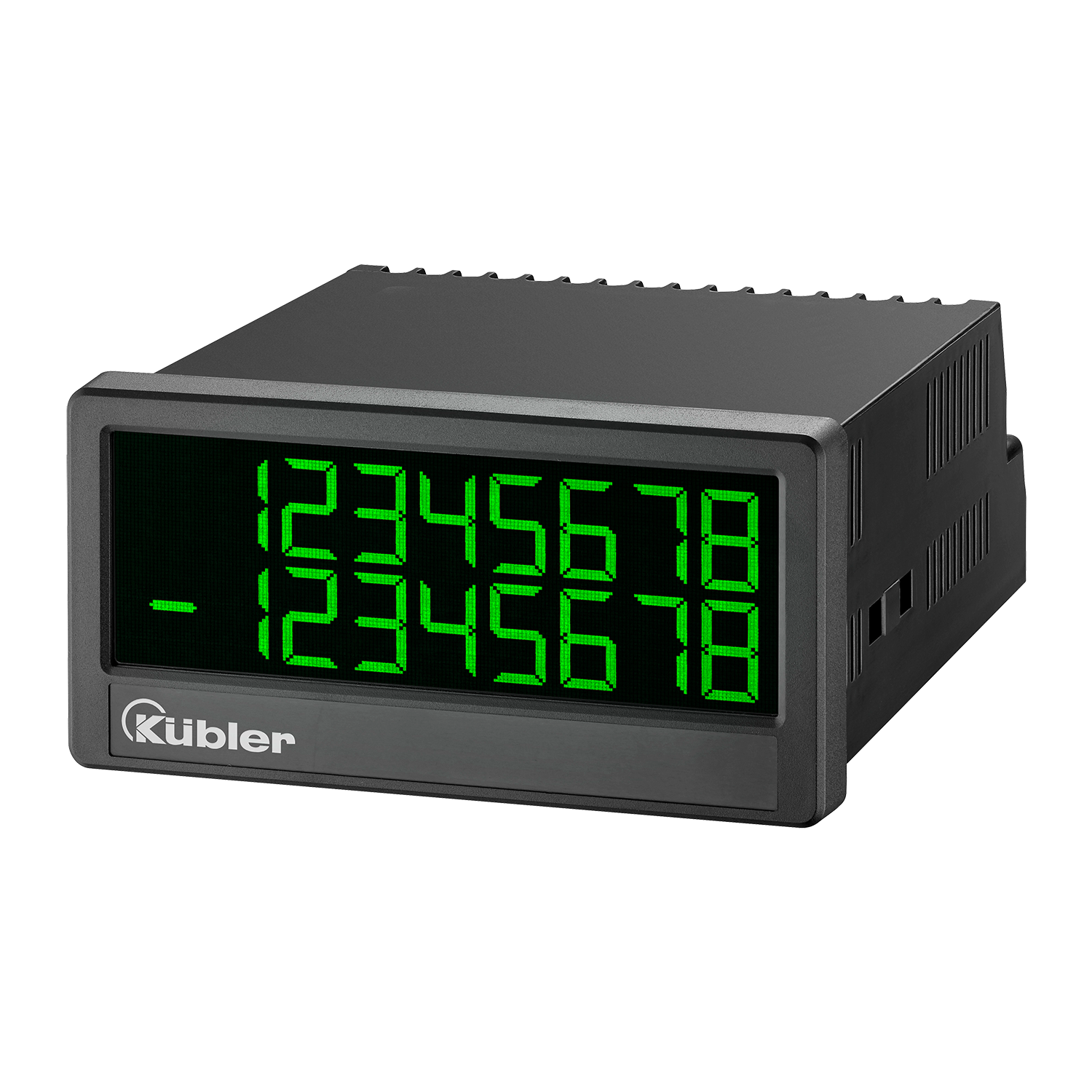

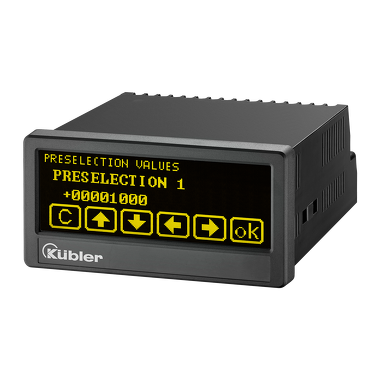

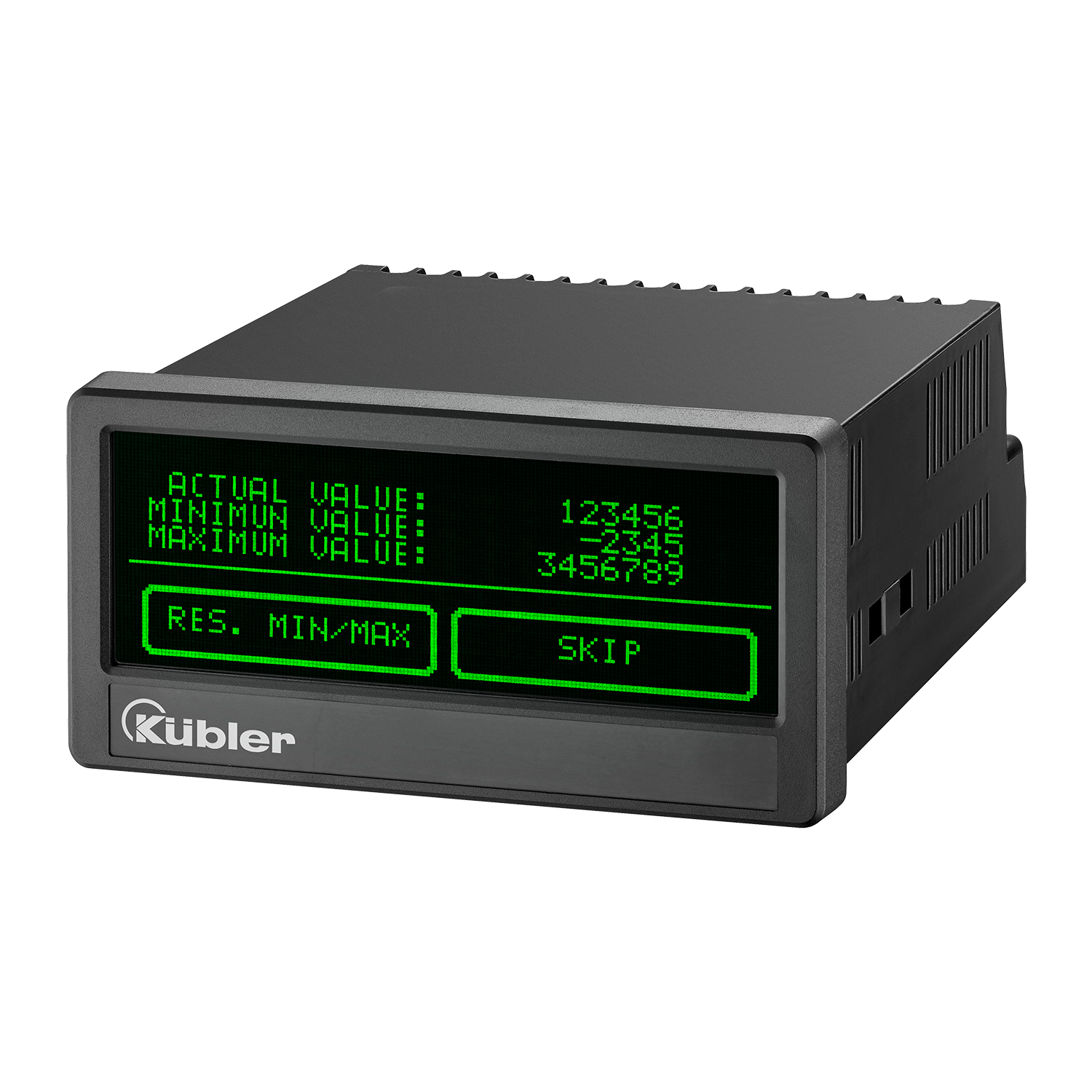

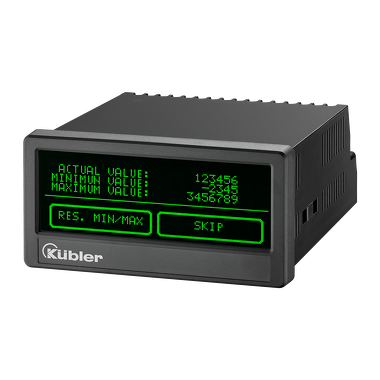

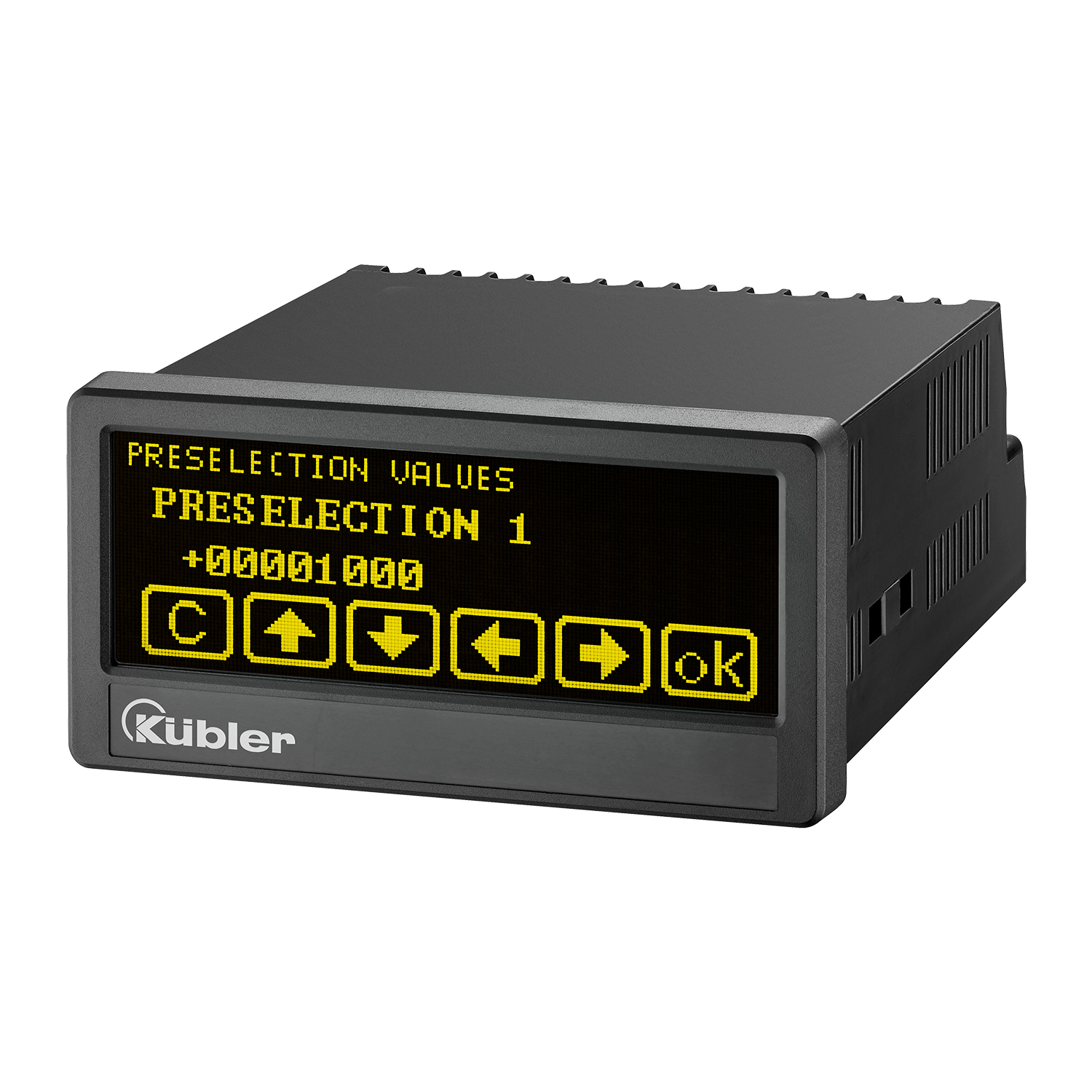

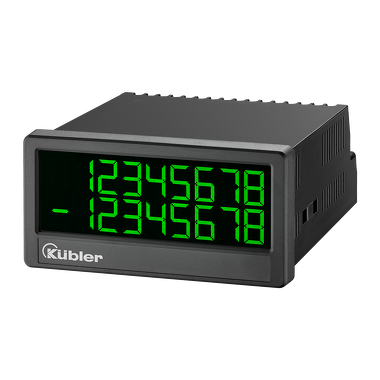

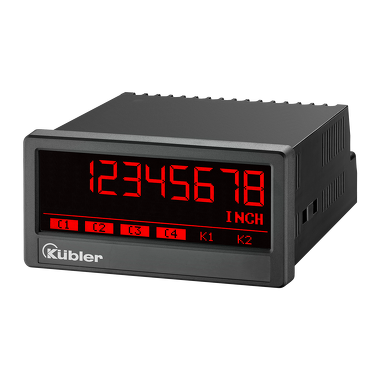

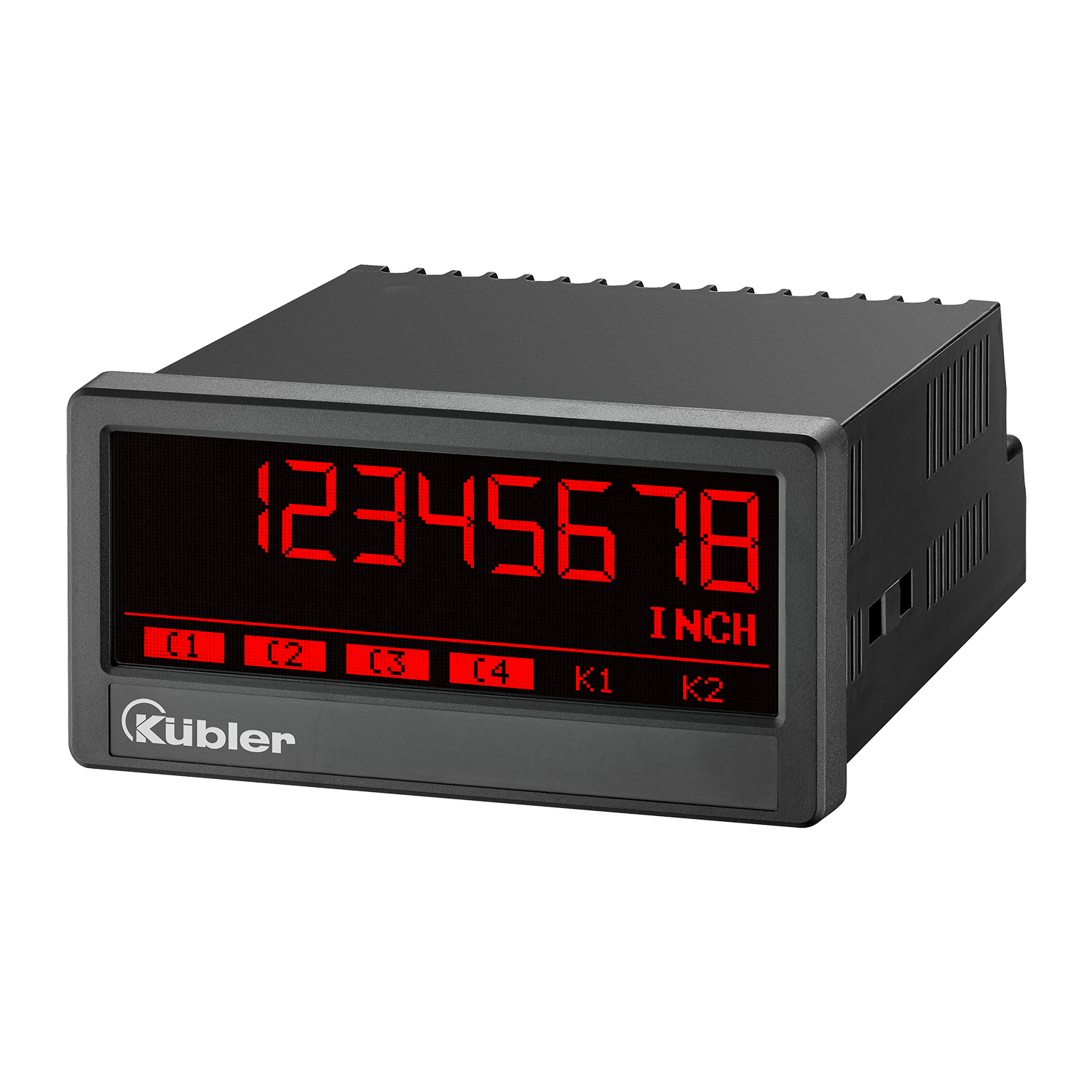

SSI touch position display for absolute SSI sensors.

The fast SSI display Type 570T is designed for absolute SSI encoders up to 32 bit resolution. It can be used as master or slave display.
With simple bit assignment and bit blanking, the scalable, linearizable display can also be cascaded to extend the display range as desired. Output options include 4 limit values, analog output or RS232 or RS485 interface.

Mechanical
Model electronic
Functions Frequency display
Position displays without limit values
Preset counter
Tachometer without limitvalues
Tachometer with limit values
Position displays with limit values
Dimension 1 96 x 48 mm | 92 x 45 mm
Protection level IP20
IP65
Working temperature -20 °C ... +60 °C
Weight 200 g
Reset electronic

(1) Front panel size | Panel cut-out
Electrical
Power supply 115 V AC
230 V AC
18...30 V DC
Signal input TTL / RS422
PNP
SSI, binär
SSI, gray
Signal output Analog ±10 V
Analog 0...10 V
Analog 0...20 mA
Analog 4–20 mA
RS232
RS485
2 x Relais
4 x PNP
Interfaces Modbus
Printer CR/LF
Drivecom DIN ISO 1745
Properties
  • Designed for SSI formats from 8 to 32 bits.
  • 4 switching outputs as limits or presets (response time < 1 ms), also programmable with trailing preset.
  • Scalable analog output (response time < 1 ms), resolution 16 bit, -10 to +10 V, 0 to 20 mA or 4 to 20 mA.
  • RS232 or RS485 serial interface for reading and writing data.
  • Version with 2 relay outputs as limits or presets; also programmable as trailing presets.
  • Gray or binary code.
  • 96 x 48 mm DIN housing, IP65.
  • New: additional speed display.

Benefits
  • AC and DC supply voltage in one device.
  • Master or slave operation.
  • Screw terminal connection.
  • SSI clock frequencies from 100 Hz to 1 MHz.
  • Display can be adjusted by scaling and offset programming.
  • Large 13 mm high LCD display, 8 digits, with adjustable brightness. 3-color – red / green / yellow – programmable.
  • Concentricity function.
  • Linearization over 24 points.
  • Bit blanking.
  • Display of position and speed.
Data sheet

570T

PDF ∼ 1,2 MB | 03.2024
DE
EN
FR
Operation Manual

570T

PDF ∼ 2,7 MB | 12.2020
DE
EN
FR

OS10 - Standard software

PDF ∼ 5,4 MB | 07.2024
DE
EN
Manual

57x/SK RS232 RS485 SERPRO Serial communication protocol

Multilingual: German, English
PDF ∼ 342,2 KB | 11.2018

Declaration of conformity

570T 571T 573T CE

Multilingual: German, English, French
PDF ∼ 107,5 KB | 04.2022

Software

Standard + SafeConfig OS10

Multilingual: German, English, French
ZIP ∼ 69,3 MB | 05.2024

Mechanical CAD / STEP

57xT

ZIP ∼ 5,5 MB | 06.2019

Electronic CAD / ePlan

570T

ZIP ∼ 1,4 MB | 03.2021

Accessories

Mounting frame, 48x96

Mounting frame, 48x96

For the installation of all devices with DIN dimensions 48x96mm. For mounting the devices on a DIN rail.
G.300.005
Data sheet
Mounting frame
DE EN FR
