 901
 901

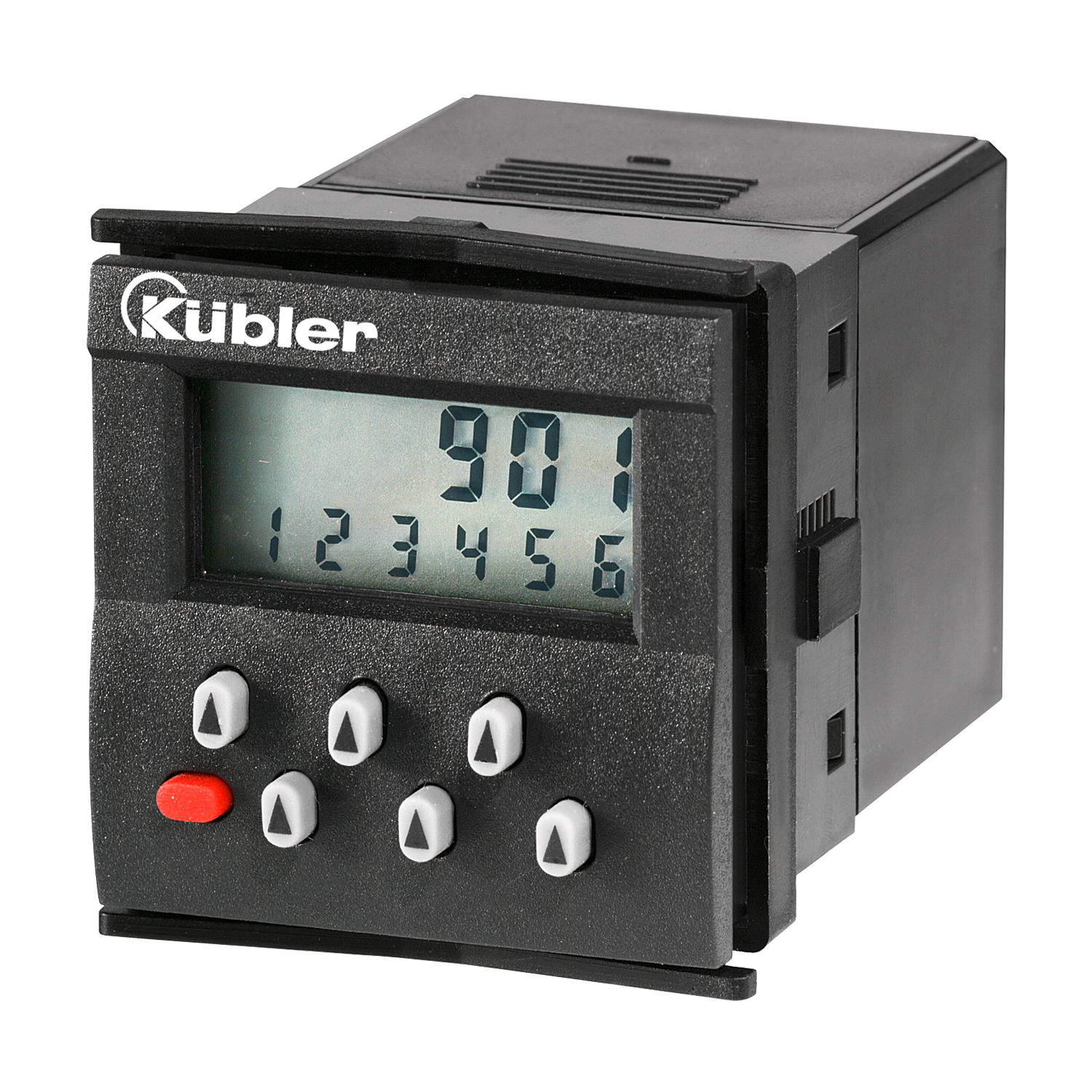

Preset counter electronic

901

  • Manual / electric reset
  • No internal power supply needed
  • Clock generator function
  • Dimension
    · 48 x 48 mm | 45 x 45 mm
  • Power supply:
      · via battery
  • Display 6-digit number, LCD

Pulse and time preset counter with AC/DC or NPN counting and reset inputs.

The Type 901 is a battery operated simple pulse and time preset counter with 12 to 250 V AC/DC or NPN Counting and reset inputs. The 6-digit, 2-line LCD display shows the actual value and setpoint.

Mechanical
Model electronic
Functions Multifunction devices
Time preset counter
Short-time meter
Dimension 1 48 x 48 mm | 45 x 45 mm
Protection level IP65
Working temperature -20 °C ... +65 °C
Weight 80 g
Reset electronic

(1) Front panel size | Panel cut-out
Electrical
Power supply via battery
Signal input PNP
12...250 VAC/DC
Signal output 1 x Relais
Efficient
  • Counting and reset input electrically isolated from the counter: Input level 12 to 250 V AC/DC
  • 2-line LCD display for counter reading and preset. The switching status of the output and active time measurement are displayed.
Simple
  • Simple programming
  • Simple preset input; one key for each decade
  • Pluggable screw terminals
  • Replacement for electromechanical preset counters
  • No internal power supply needed
  • Clock generator function
Data sheet

901

PDF ∼ 5,8 MB | 08.2024
DE
EN
FR
Operation Manual

901

Multilingual: German, English, English (USA), French, Italian, Spanish
PDF ∼ 1,6 MB | 03.2023

Programming instruction

Typ 901

Multilingual: German, English, French, Italian, Spanish
PDF ∼ 135,0 KB | 04.2024

Declaration of conformity

901 CE

Multilingual: German, English, French
PDF ∼ 106,5 KB | 04.2022

Mechanical CAD / STEP

901

∼ 4,2 MB | 09.2024

Electronic CAD / ePlan

901

ZIP ∼ 2,5 MB | 03.2021

Product Certificates

UL Canada - Counters and process devices

PDF ∼ 78,6 KB | 01.2019
EN

UL USA - Counters and process devices

PDF ∼ 76,1 KB | 01.2019
EN

Accessories

Transparent cover, lockable

Transparent cover, lockable

Transparent cover lockable with adapter frame for meter with installation dimension 45x45mm on cutout 50x50mm.

Seal, 2 mounting screws.
G.008.143
Data sheet
Transparent cover 1
DE EN FR

Transparent cover, key lock

Transparent cover, key lock

Transparent cover lockable with adapter frame for meter with installation dimension 45x45mm on cutout 50x50mm.

Seal, 2 mounting screws.
G.008.153
Data sheet
Transparent cover 1
DE EN FR

Sealing cover K2

Sealing cover K2

Flexible sealing cap for dimension F2, IP65 protection. Suitable for BVa15.13, BVa15.31, BVa15.33 and HVa15.31 within F2B. 2 B counters or 2 HB counters and MVs16.03 in frame F2M and junction box 926.1. 716, 717 901, 907, 908, 923, 924 with adapter frame 45 (T.008.860).
Grau G.008.302
Schwarz G.008.303
Data sheet
Sealing cover
DE EN FR

Bezel adapter 60

Bezel adapter 60

Push-on frame for front panel cutout diameter 60mm to 45x45mm.
N.510.226
Data sheet
Adapter front bezel (3)
DE EN FR

Sealing gasket N.511003

Sealing gasket N.511003

Outer dimension: 60 x 75 [2.363 x 2.953"]
Inner dimension: 54.4 x 54.4 [2.142 x 2.142"]
N.511.003
Data sheet
Gaskets
DE EN FR

Sealing gasket N.511028

Sealing gasket N.511028

Outer dimension: 48 x 48 [1.89 x 1.89"]
Inner dimension: 45 x 45 [1.772 x 1.772"]
N.511028
Data sheet
Gaskets
DE EN FR

Bezel adapter 72

Bezel adapter 72

Adapter front frame for 68x68mm to 45x45mm cutout; additional holding frame available. Available in black and gray.
Grau T.008.176
Schwarz T.008.177
Gegenhalter T.009.420
Data sheet
Adapter front bezel (3)
DE EN FR

Bezel adapter 55

Bezel adapter 55

Adapter frame 55 for electric meter with 45x45mm installation space for 50x50mm cutout. Available in anthracite.
T.008.853
Data sheet
Adapter front bezel
DE EN FR

Adapter 45

Adapter 45

Adapter 75x60mm for 50x50mm to 45x45mm cutout for screw mounting. Available in black.
T.008.860
Data sheet
Adapter front bezel (3)
DE EN FR
