 H57
 H57

Hour meter electromechanical

H57

  • High shock resistance
  • High protection, IP65
  • No zero position
  • Dimension
    · 48 x 48 mm | 45 x 45 mm
    · 55 x 55 mm | 50 x 50 mm
    · 72 x 72 mm
    · Ø 72 mm
  • Power supply:
      · 20...30 V AC
      · 42...48 V AC
      · 187...264 V AC
      · 360...440 V AC
      · 10...30 V DC
      · 100...130 V DC
  • Display 7-digit number, mech. roller counter

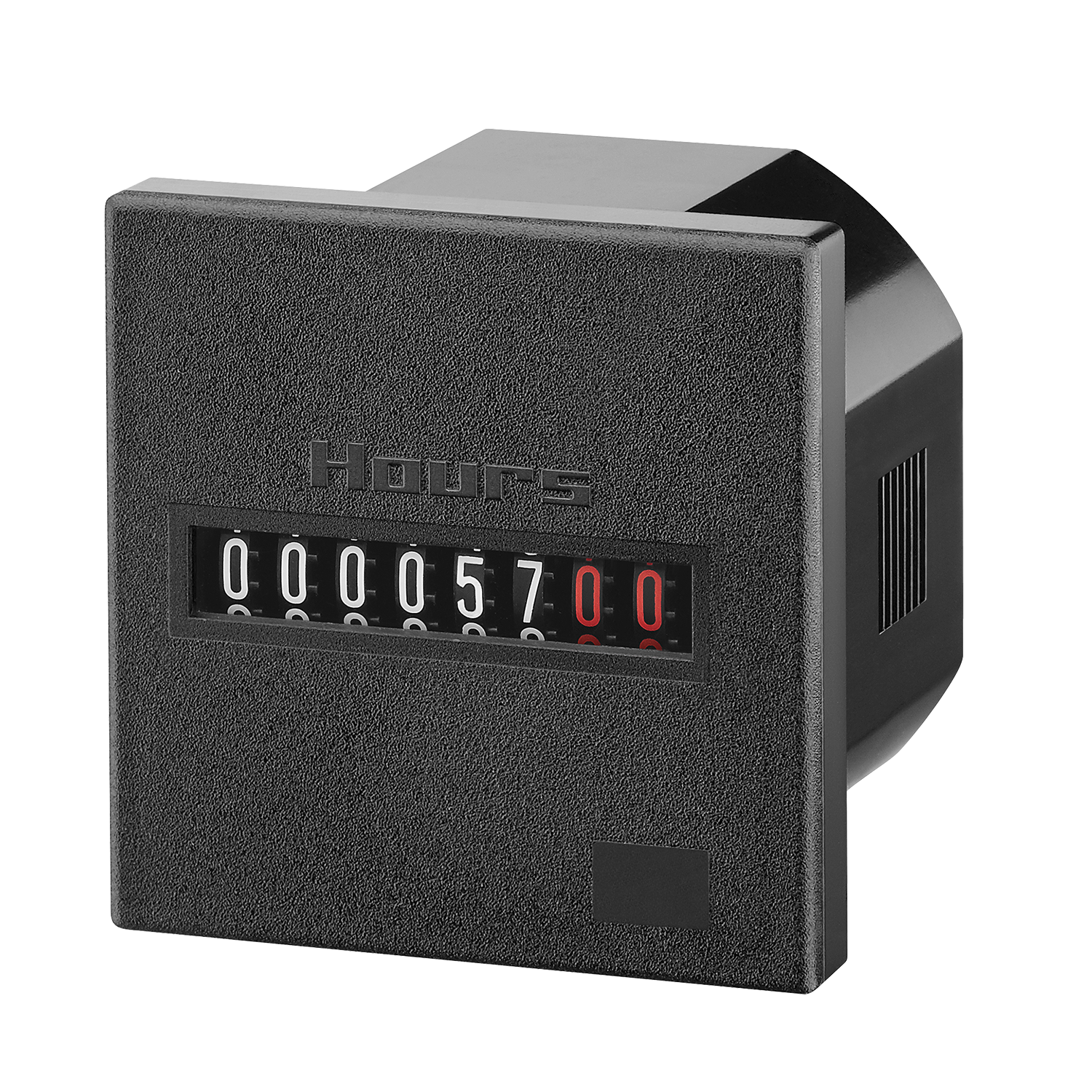

Hour meter with small installation depth.

The H 57, H 57.55, H 57.72 and AH 57 hour meters have a very high shock resistance.
They can be used in various application areas as built-in / surface-mounted meters with a small installation depth. These non-resettable counters are extremely tamper-proof.

Mechanical
Model electromechanical
Function Hour meters / timers
Dimension 1 48 x 48 mm | 45 x 45 mm
55 x 55 mm | 50 x 50 mm
72 x 72 mm
Ø 72 mm
Protection level IP52
Working temperature -15 °C ... +50 °C
Weight 48 g

(1) Front panel size | Panel cut-out
Electrical
Power supply 20...30 V AC
42...48 V AC
187...264 V AC
360...440 V AC
10...30 V DC
100...130 V DC
Properties
  • 7- or 8-digit hour meter.
  • High shock and impact resistance Without zero position, small installation depth.
  • Optically large digits.
  • IP52 protection (optional IP65), mounting position: any.
  • UL certification
  • Different front panel sizes

- H 57 48 x 48 mm
- H 57.55 55 55 x 55 mm
- H 57.72 72 72 x 72 mm
- AH 57 48 x 48 mm for DIN rail

Benefits
  • 5 years warranty 1).
  • High reliability: this makes it easier to sell your end product.
  • Retains value in the event of power failure.
  • Long service life.
Applications
General time counting, maintenance intervals for measuring devices (ventilation, oxygen, dialysis), small devices UV lamps, display panels in vehicles.

1)  When used as specified in the technical data.
Data sheet

H57 / AH57

PDF ∼ 388,3 KB | 08.2024
DE
EN
FR
Declaration of conformity

H57 / AH57 CE

Multilingual: German, English, French
PDF ∼ 72,1 KB | 01.2024

Product Certificates

UL Canada - Counters and process devices

PDF ∼ 78,6 KB | 01.2019
EN

UL USA - Counters and process devices

PDF ∼ 76,1 KB | 01.2019
EN
Notice

Safety instructions for electromechanical meters

Multilingual: German, English, French, Italian, Spanish
PDF ∼ 147,7 KB | 04.2015

Accessories

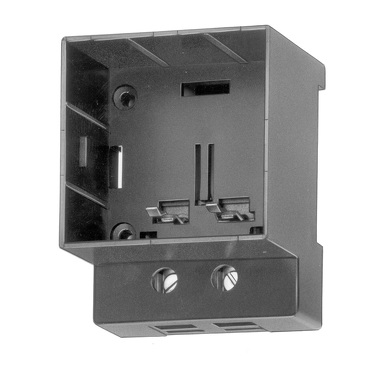

Base mount socket

Base mount socket

Mounting base for H57 on DIN rail. Available in black.
Schwarz G.008.040
Data sheet
Other accessories 1
DE EN FR

Transparent cover, lockable

Transparent cover, lockable

Transparent cover lockable with adapter frame for meter with installation dimension 45x45mm on cutout 50x50mm.

Seal, 2 mounting screws.
G.008.143
Data sheet
Transparent cover 1
DE EN FR

Transparent cover, key lock

Transparent cover, key lock

Transparent cover lockable with adapter frame for meter with installation dimension 45x45mm on cutout 50x50mm.

Seal, 2 mounting screws.
G.008.153
Data sheet
Transparent cover 1
DE EN FR

Bezel adapter 60

Bezel adapter 60

Push-on frame for front panel cutout diameter 60mm to 45x45mm.
N.510.226
Data sheet
Adapter front bezel (3)
DE EN FR

Sealing gasket N.511016

Sealing gasket N.511016

Outer dimension: 72 x 72 [2.835 x 2.835"]
Inner dimension: diameter 50.5 / 45 [1.988 / 1.772"]
N.511016
Data sheet
Gaskets
DE EN FR

Sealing gasket N.511017

Sealing gasket N.511017

Outer dimension: 55 x 55 [2.166 x 2.166"]
Inner dimension: diameter 50.5 / 45 [1.988 / 1.772"]
N.511017
Data sheet
Gaskets
DE EN FR

Sealing gasket N.511018

Sealing gasket N.511018

Outer dimension: 48 x 48 [1.89 x 1.89"]
Inner dimension: diameter 50 / 45 [1.969 / 1.772"]
N.511018
Data sheet
Gaskets
DE EN FR

Sealing gasket N.511028

Sealing gasket N.511028

Outer dimension: 48 x 48 [1.89 x 1.89"]
Inner dimension: 45 x 45 [1.772 x 1.772"]
N.511028
Data sheet
Gaskets
DE EN FR

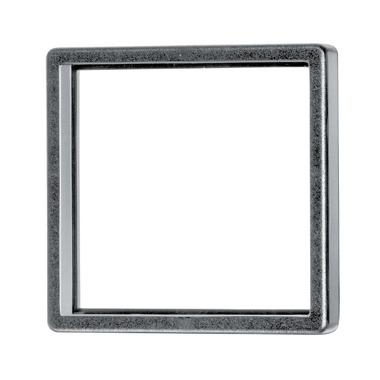

Bezel adapter 55

Bezel adapter 55

Adapter frame 55 for cutout 50x50mm to 45x45mm. Available in black and gray.
Grau T.008.170
Schwarz T.008.171
Data sheet
Adapter front bezel (2)
DE EN FR

Bezel adapter 72

Bezel adapter 72

Adapter front frame for 68x68mm to 45x45mm cutout; additional holding frame available. Available in black and gray.
Grau T.008.176
Schwarz T.008.177
Gegenhalter T.009.420
Data sheet
Adapter front bezel (3)
DE EN FR
