 HR76  HR76
 HR76  HR76

Hour meter electromechanical

HR76

  • High shock resistance
  • High protection, IP65
  • Extremely tamper-proof
  • Dimension
    · Ø 58 mm | Ø 50,5 mm
    · Ø 71 mm
  • Power supply:
      · 115 V AC
      · 230 V AC
      · 10...80 V DC
  • Display 6-digit number, mech. roller counter

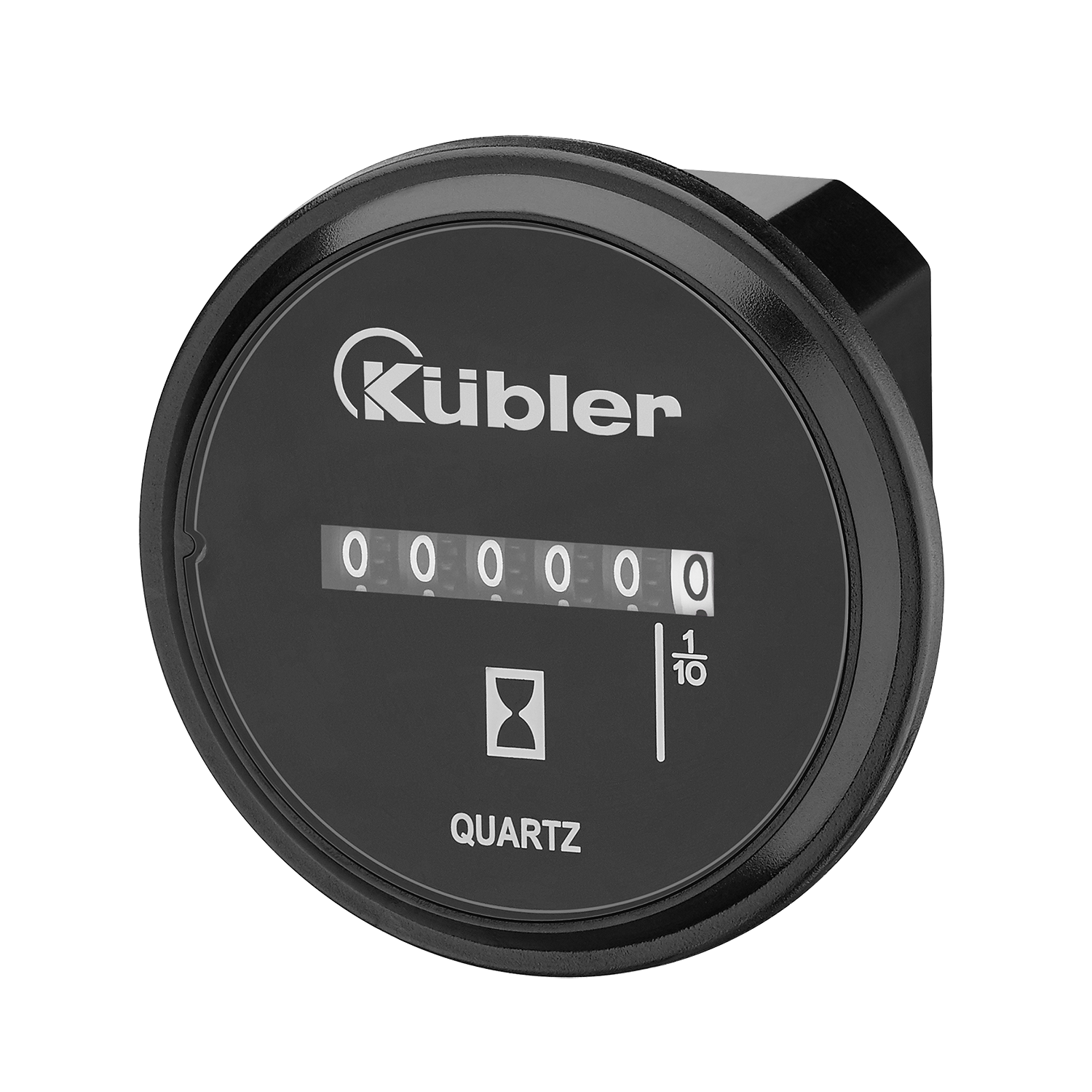

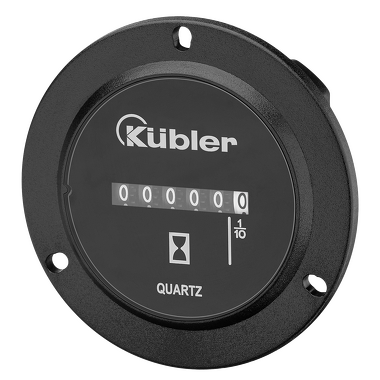

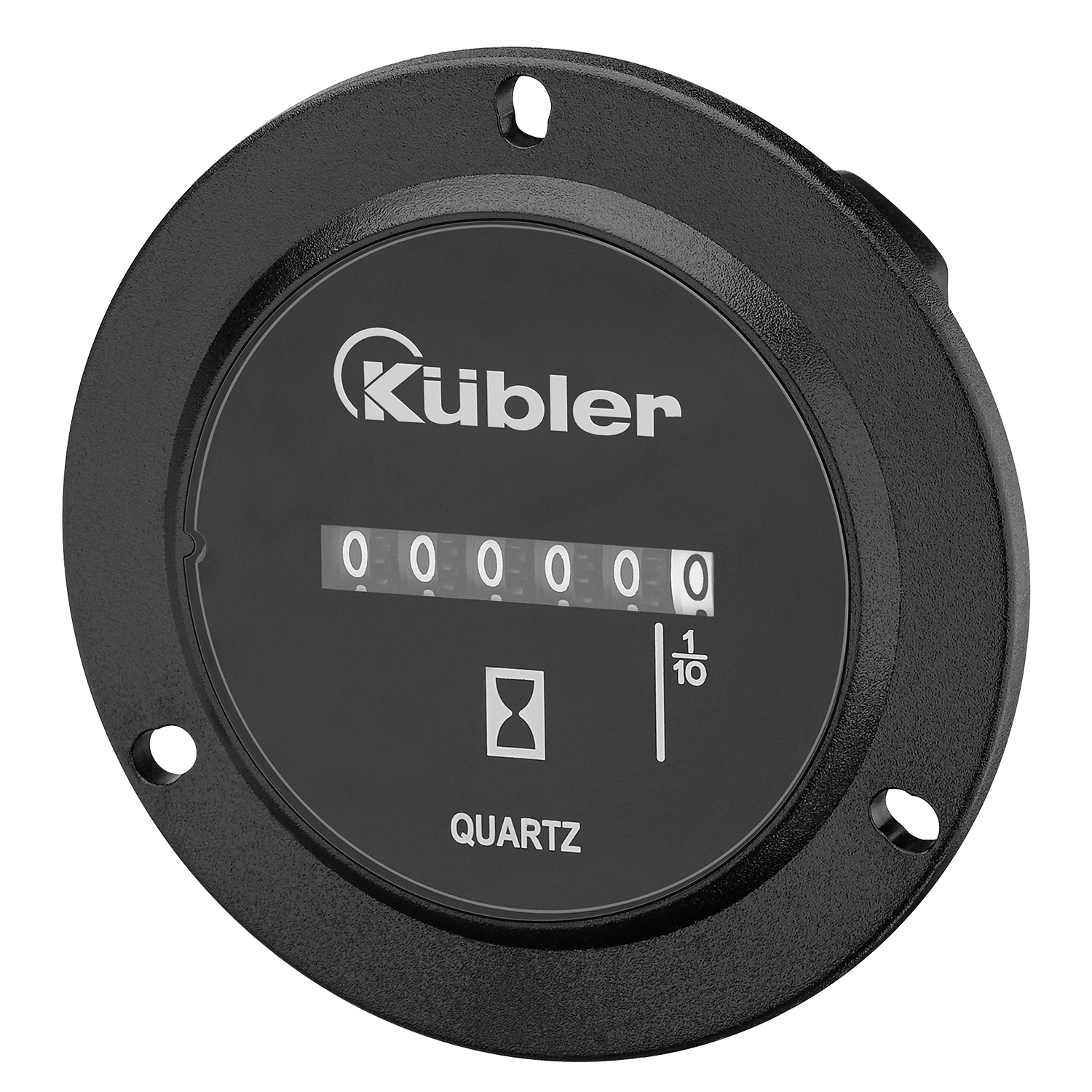

Hour meter for round front panel cut-outs.

The HR 76 hour meters have a very high shock resistance. As built-in counters for round front panel cutouts, they can be used in various application areas. These non-resettable counters are very robust and extremely tamper-proof.

Mechanical
Model electromechanical
Function Hour meters / timers
Dimension 1 Ø 58 mm | Ø 50,5 mm
Ø 71 mm
Protection level IP65
Working temperature -30 °C ... +65 °C
Weight 56 g

(1) Front panel size | Panel cut-out
Electrical
Power supply 115 V AC
230 V AC
10...80 V DC
Properties
  • 6-digit display
  • Very inexpensive
  • High shock resistance
  • Low energy consumption
  • Optically large digits
  • IP65 protection
  • Retains value in the event of power failure
  • Long service life
Benefits
  • 50/60 Hz in one device
  • Small installation depth
  • Waterproof from front and rear
Applications
Recording of operating hours for construction machinery, agricultural machinery, compressors, power generators
Data sheet

HR76

PDF ∼ 285,4 KB | 08.2024
DE
EN
FR
Declaration of conformity

HR76 CE

Multilingual: German, English, French
PDF ∼ 169,3 KB | 02.2023

Product Certificates

HR76 - UL

PDF ∼ 100,5 KB | 01.2021
EN
Notice

Safety instructions for electromechanical meters

Multilingual: German, English, French, Italian, Spanish
PDF ∼ 147,7 KB | 04.2015

Accessories

Fastener

Fastener

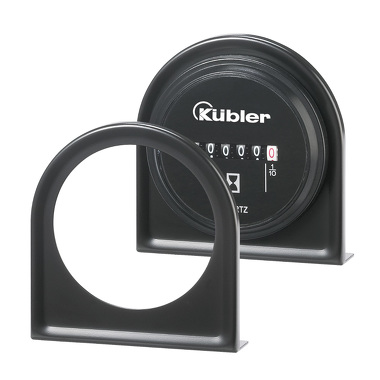

Holder for mounting the HR76 on a flat surface. Available in black.
N.510.199
Data sheet
Other accessories 1
DE EN FR

Sealing gasket N.511150

Sealing gasket N.511150

Outer dimension: diameter 71.1 [2.799"]
Inner dimension: diameter 50.8 [2"]
N.511150
Data sheet
Gaskets
DE EN FR
