 K05
 K05

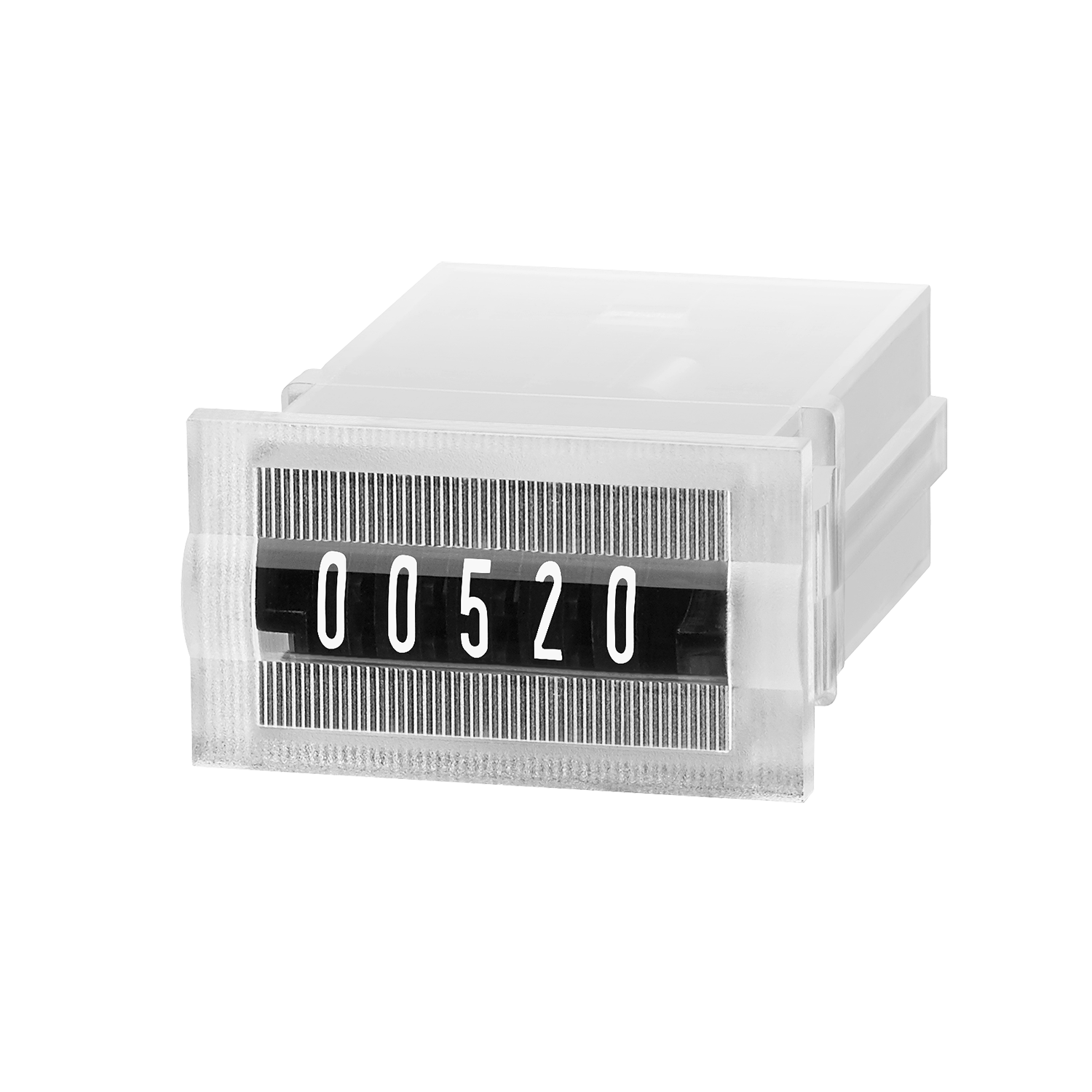

Pulse counter electromechanical

K05

  • High shock resistance
  • Retains value in the event of power failure
  • High protection, IP65
  • Dimension
    · 25 x 13,8 mm
    · 25,2 x 31 mm
    · 28 x 15 mm | 24 x 13 mm
    · 30 x 20 mm | 27 x 14 mm
  • Power supply:
      · 115 V AC
      · 230 V AC
      · 3 V DC
      · 4,5 V DC
      · 12 V DC
      · 24 V DC
  • Display 5-digit number, mech. roller counter

Micro pulse counter, 5-digit.

The micro totalizer families K 04 to K 07 and AK 07 offer many variants and can be used in both DC and AC applications. As built-in, surface-mounted and print counters with very high shock resistance, they can be used in various application areas.

Mechanical
Model electromechanical
Dimension 1 25 x 13,8 mm
25,2 x 31 mm
28 x 15 mm | 24 x 13 mm
30 x 20 mm | 27 x 14 mm
Protection level IP65
Working temperature -10 °C ... +60 °C
Weight 18 g

(1) Front panel size | Panel cut-out
Electrical
Power supply 115 V AC
230 V AC
3 V DC
4,5 V DC
12 V DC
24 V DC
Properties
  • Low power consumption; suitable for battery operation.
  • Very compact design, optically large digits.
  • Various reading options.
  • Built-in meters with injection-molded snap-in springs, surface-mounted meters with screw mounting or print meters for circuit board mounting.
  • Versions with additional magnetic shielding by sheet steel housing (K 0X.40 and K 0X.50).
Benefits
  • Machine solderable and washable.
  • Retains value in the event of power failure.
  • High shock resistance, long service life, IP65 protection.
Applications
General quantity counting, alarm systems, coin-operated machines, electricity meters, vending and gambling machines, photocopying machines, medical technology, washing systems
Data sheet

K04 / K05 / K06 / K07 / AK07

PDF ∼ 792,3 KB | 08.2024
DE
EN
FR
Declaration of conformity

K04 / K05 / K06 / K07 / AK07 / SK07 CE

Multilingual: German, English, French
PDF ∼ 169,5 KB | 02.2023

Product Certificates

UL Canada - Counters and process devices

PDF ∼ 78,6 KB | 01.2019
EN

UL USA - Counters and process devices

PDF ∼ 76,1 KB | 01.2019
EN
Notice

Safety instructions for electromechanical meters

Multilingual: German, English, French, Italian, Spanish
PDF ∼ 147,7 KB | 04.2015

Accessories

Cables and connectors
