Displays, Counters and Process devices for different applications
Electromechanical. Electronic. Pneumatic. 100% readability. Reliable and long-lasting – Made in Germany.Product found: 88
K04
Micro pulse counter, 4-digit.- High shock resistance
- Retains value in the event of power failure
- High protection, IP65
- Dimension, mm
-
30 x 20 mm | 27 x 14 mm
- Power supply
-
· 115 V AC
· 230 V AC
· 3 V DC
· 4,5 V DC
· 12 V DC
· 24 V DC - Display
-
4-digit number, mech. roller counter
K05
Micro pulse counter, 5-digit.- High shock resistance
- Retains value in the event of power failure
- High protection, IP65
- Dimension, mm
-
30 x 20 mm | 27 x 14 mm
- Power supply
-
· 115 V AC
· 230 V AC
· 3 V DC
· 4,5 V DC
· 12 V DC
· 24 V DC - Display
-
5-digit number, mech. roller counter

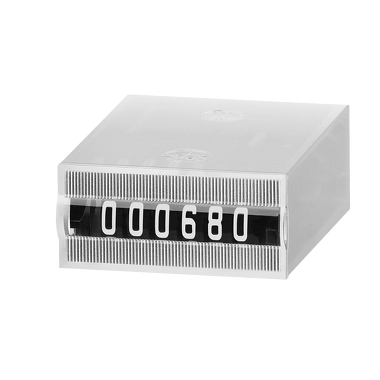

K06
Micro pulse counter, 6-digit.- High shock and vibration resistance
- Retains value in the event of power failure
- High protection, IP65
- Dimension, mm
-
32 x 15 mm | 30 x 13 mm
- Power supply
-
· 115 V AC
· 230 V AC
· 3 V DC
· 4,5 V DC
· 12 V DC
· 24 V DC - Display
-
6-digit number, mech. roller counter

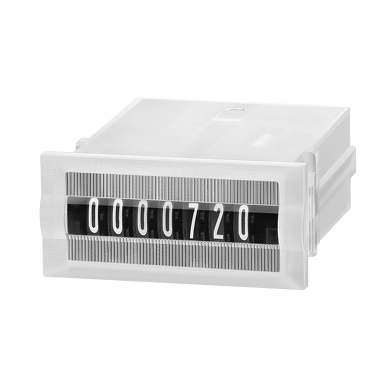

K07 / AK07
Micro pulse counter, 7-digit.- High shock resistance
- Retains value in the event of power failure
- High protection, IP65
- Dimension, mm
-
29 x 36 mm
- Power supply
-
· 115 V AC
· 230 V AC
· 3 V DC
· 4,5 V DC
· 12 V DC
· 24 V DC - Display
-
7-digit number, mech. roller counter
SK07
Micro pulse counters – surface-mounted and DIN rail counters.- High shock resistance
- No zero position
- Retains value in the event of power failure
- Dimension, mm
-
30 x 58 mm
- Power supply
-
· 115 V AC
· 230 V AC
· 12 V DC
· 24 V DC - Display
-
7-digit number, mech. roller counter

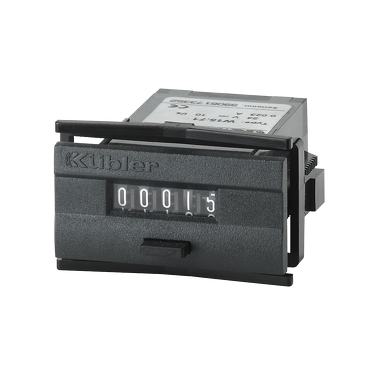

W15
Mini pulse counter, 5-digit with zeroing.- Low power consumption
- Adding
- Different front panel sizes
- Dimension, mm
-
48 x 24 mm | 45 x 22 mm
- Power supply
-
· 115 V AC
· 230 V AC
· 12 V DC
· 24 V DC - Display
-
5-digit number, mech. roller counter

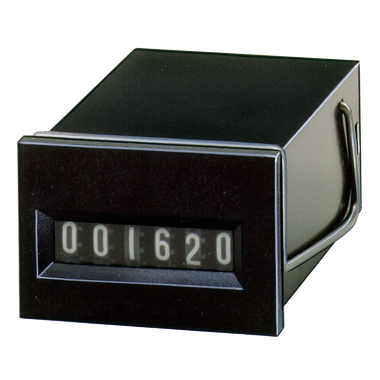

W16
Mini pulse counter, 6-digit without zeroing.- Low power consumption
- Adding
- Different front panel sizes
- Dimension, mm
-
34 x 23 mm | 31,5 x 20,5 mm
- Power supply
-
· 115 V AC
· 230 V AC
· 12 V DC
· 24 V DC - Display
-
6-digit number, mech. roller counter

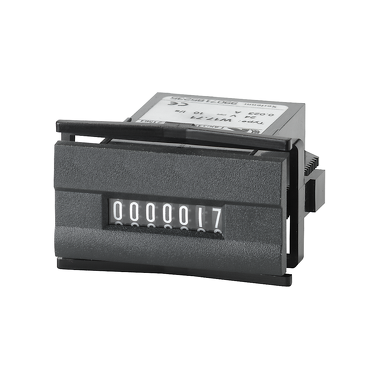

W17
Mini pulse counter, 7-digit without zeroing.- Low power consumption
- Adding
- Different front panel sizes
- Dimension, mm
-
48 x 24 mm | 45 x 22 mm
- Power supply
-
· 115 V AC
· 230 V AC
· 12 V DC
· 24 V DC - Display
-
7-digit number, mech. roller counter

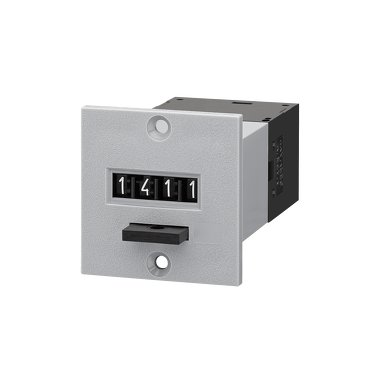

Bk14
Pulse counter with zeroing.- Can be reset manually
- Extremely robust
- Different front panel sizes
- Dimension, mm
-
39 x 40 mm | 30,3 x 25 mm
- Power supply
-
· 115 V AC
· 230 V AC
· 12 V DC
· 24 V DC - Display
-
4-digit number, mech. roller counter

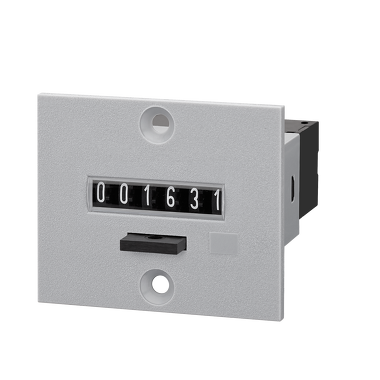

B16
Totaling counter with/without reset.- Extremely robust
- Lockable zero position
- Different front panel sizes
- Dimension, mm
-
60 x 50 mm | 50 x 25 mm
- Power supply
-
· 115 V AC
· 230 V AC
· 12 V DC
· 24 V DC - Display
-
6-digit number, mech. roller counter

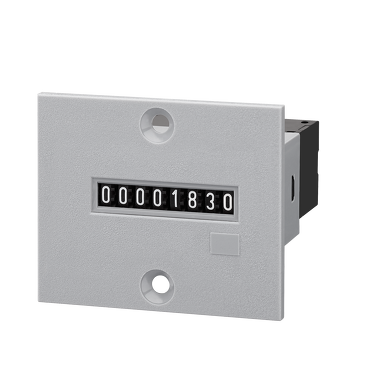

B18
Totaling counter without zeroing.- Extremely robust
- Very long service life
- Different front panel sizes
- Dimension, mm
-
60 x 50 mm | 50 x 25 mm
- Power supply
-
· 115 V AC
· 230 V AC
· 12 V DC
· 24 V DC - Display
-
8-digit number, mech. roller counter

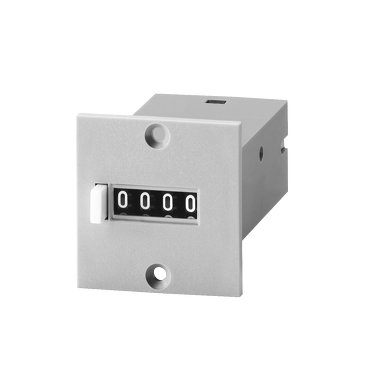

Mk14
Pulse counter with manual zeroing.- Protection up to IP41
- Manual reset
- Quantity and event counting
- Dimension, mm
-
39 x 40 mm | 30,3 x 25 mm
- Power supply
-
· 115 V AC
· 230 V AC
· 12 V DC
· 24 V DC - Display
-
4-digit number, mech. roller counter

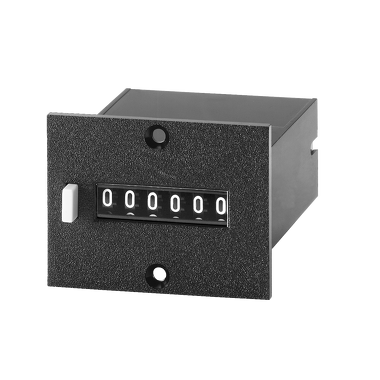

Mk16
Pulse counter with manual and electric zeroing.- Protection up to IP41
- Integrated electrical zero position
- Quantity and event counting
- Dimension, mm
-
53 x 40 mm | 48 x 24 mm
- Power supply
-
· 115 V AC
· 230 V AC
· 12 V DC
· 24 V DC - Display
-
6-digit number, mech. roller counter

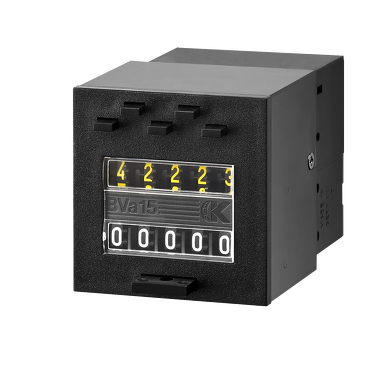

BVa15
Preset counter – adding with standing preset.- Manual zeroing
- Counter reading and preset permanently visible
- Contact remains toggled until zero position is reached
- Dimension, mm
-
60 x 75 mm | 50 x 50 mm
- Power supply
-
· 115 V AC
· 230 V AC
· 24 V DC - Display
-
5-digit number, mech. roller counter

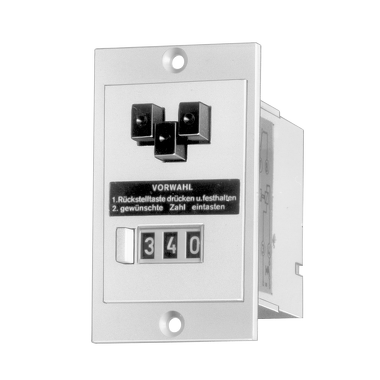

MVs13
Subtracting miniature preset counter.- Manual / electric reset
- Extremely compact
- Potential-free changeover switch when zero is reached
- Dimension, mm
-
39 x 68 mm | 33,3 x 50 mm
- Power supply
-
· 115 V AC
· 230 V AC
· 24 V DC - Display
-
2 / 3-digit number, mech. roller counter
