360 Sendix 5883FS2 Sendix 5883FS2
Sendix 5883FS2 Sendix 5883FS2

Encoders Absolute multiturn

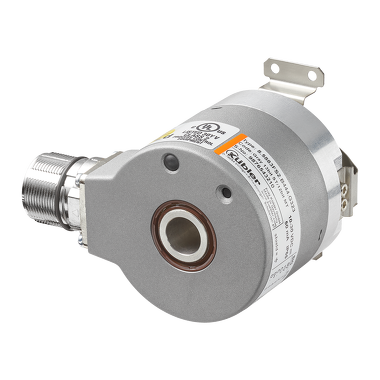

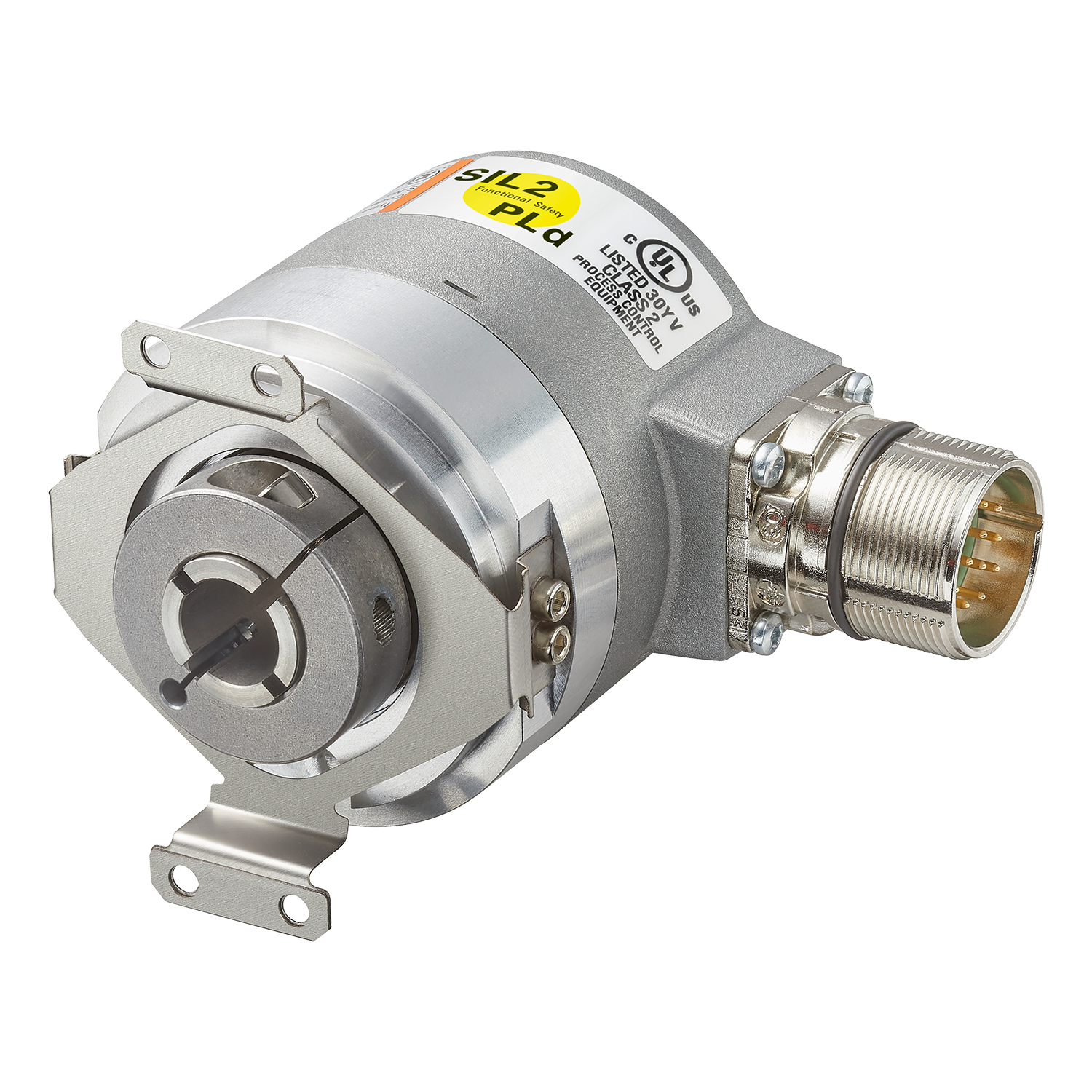

Sendix 5883FS2

  • For safe drive technology
  • Certified solution
  • Reliable
  • Dimension Ø 58 mm
  • 2.048 ppr incremental
  • 17 bits singleturn
  • 12 bits multiturn
  • Max 14 mm hollow shaft, through
SSI + 2048 ppr SinCos
BiSS + 2048 ppr SinCos

Safe position acquisition up to SIL2/PLd.

The absolute encoders Singleturn Sendix 5863FS2 / 5883FS2 are suitable for use in safety-related applications up to SIL2 according to EN 61800-5-2 or PLd according to EN ISO 13849-1. The specially interlocked bearings in the Safety Lock™ design, the high integration density of the OptoASIC-based components and the stable die-cast housing make them perfect for demanding outdoor applications up to IP67.

Mechanical
Dimension Ø 58 mm
Shaft type 10 mm hollow shaft, through
12 mm hollow shaft, through
14 mm hollow shaft, through
Flange type Ø 58.00 mm
Ø 63.00 mm
Ø 65.00 mm
Working temperature -40 °C ... +90 °C
Protection level IP65
IP67
Connection types Radial cable
Tangential cable
M23 connector radial
Max. rotational speed 9.000 min-1
Weight 450 g
Electrical
Scanning optical
Resolution max. 2.048 ppr incremental
17 bits singleturn
12 bits multiturn
Power supply 5 V DC
10...30 V DC
Interfaces SSI + 2048 ppr SinCos
BiSS + 2048 ppr SinCos
Functional safety technology
  • Encoders with independent certificate from TÜV.
  • Suitable for applications up to SIL2 according to EN 61800-5-2.
  • Suitable for applications up to PLd according to EN ISO 13849-1.
  • SSI or BiSS interface with incremental SinCos tracks with 2048 ppr.
  • Certified mechanical mounting and electronics.
Flexible
  • Shaft and hollow shaft variants.
  • Cable and connector variants.
  • Different mounting variants available.
Data sheet

Sendix 5863FS2 / 5883FS2

PDF ∼ 1,1 MB | 08.2024
DE
EN
FR
Operation Manual

Sendix 58xxFS2 / 58xxFS3

Multilingual: German, English, French, Italian, Spanish
PDF ∼ 5,9 MB | 03.2021

Safety characteristics

Sistema-Library

Multilingual: German, English, French
ZIP ∼ 6,3 MB | 07.2023

Declaration of conformity

Sendix 5863FS2 / 5883FS2 CE

Multilingual: German, English, French
PDF ∼ 158,6 KB | 06.2020

Device file

BiSS EDS

ZIP ∼ 1,4 KB | 07.2021

Mechanical CAD / STEP

Sendix 5883FSx

ZIP ∼ 52,0 MB | 07.2021

Product Certificates

Encoder UL Canada

PDF ∼ 79,9 KB | 11.2019
EN

Encoder UL USA

PDF ∼ 78,2 KB | 11.2019
EN

Sendix 58xxFS2 (TÜV)

Multilingual: German, English
PDF ∼ 629,5 KB | 05.2020

Salt spray test ManufacturersDeclaration

PDF ∼ 39,6 KB | 05.2023
DE
EN
General information

BISS EDS - Protocol description

PDF ∼ 295,6 KB | 07.2021
EN

Accessories

Screw retention Loctite 243 (5 ml)

Screw retention Loctite 243 (5 ml)

Loctite 243 is a universally usable screw retention. Screws and nuts are secured against loosening due to vibrations and sealed in the same time.
8.0000.4G05.0000
Data sheet
Screw retention Locitite
DE EN FR

EMC shield terminal

EMC shield terminal

For EMC-compliant installation of the encoder cable.
  • Mounting on top hat rail
  • Shield diameter
8.0000.4G06.0312 (03-12 mm)

  • Weight approx. 7.4 g
  • Clamp (spring steel, galvanized)
  • Foot (spring steel)
8.0000.4G06.0312
Data sheet
EMC shield terminal
DE EN FR
Mechanical CAD / STEP
8.0000.4G06.0XXX

Torque stop, flexible

Torque stop, flexible

For hollow shaft encoders
with flange ø 58 mm
Mounting radius 39.5 ... 142.75 mm
Designed for functional safety technology.
For applications with axial and radial play at low dynamics.

Scope of delivery
- Torque support (stainless steel)
- 3 M3x6 screws for mounting on the encoder

Connection to the application (not included in delivery)
- 1 screw

8.0010.4047.00FS
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.4047.00FS
Operation Manual
8.0010.4047.00FS - Accessories torque stop, flexible (FS)

Cylindrical pin (replacement)

Cylindrical pin (replacement)

For hollow shaft encoders
with flange ø 58 mm
Designed for functional safety technology.

suitable for:
Torque brackets 8.0010.4051.00FS
8.0010.4049.0075
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.4049.0075

Stylus for the set key

Stylus for the set key

For easy operation of the set button on the encoder
Material POM (HKS8 orange)
8.0010.4052.0000
Data sheet
Stylus for the set key
DE EN FR

Stator coupling (FS)

Stator coupling (FS)

For hollow shaft encoders
with flange ø 58 mm
Mounting radius 31.5 mm
Designed for functional safety technology by 4-screw principle.

Scope of delivery
- Stator coupling (stainless steel)
- 4 screws M3x6 for mounting to the encoder

Connection to application (not included in delivery)
- 4 screws

8.0010.40B2.00FS
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.40B2.00FS
Operation Manual
Supplement to stator coupling operating instructions (FS)

Cables and connectors

M23 Connector ,

M23 Connector ,

Field-wireable connector

HTL
TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
Female connector 12-pin
8.0000.5012.0000

Data sheet
M23 connector, socket, 12-pin, counting direction cw
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

HTL
TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
Female connector 12-pin PVC Ø 6,7 mm ± 0,3 mm
12 x 0,14 mm2
8.0000.6201.XXXX

Data sheet
M23 cable set, PVC, socket, 12-pin, counting direction cw, end open
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

HTL
TTL / RS422
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
Female connector 12-pin PVC Ø 7,3 mm ± 0,2 mm
6 x 2 x 0,14 mm2
8.0000.6901.XXXX

Data sheet
M23 cable set, PVC, socket, 12-pin, counting direction cw, end open
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

HTL
TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
Female connector 12-pin PVC Ø 7,3 mm ± 0,2 mm
6 x 2 x 0,14 mm2
8.0000.6901.XXXX.0031

Data sheet
M23 cable set, PVC, socket, 12-pin, counting direction cw, end open
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

HTL
TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
Female connector 12-pin

Male connector 12-pin PVC Ø 7,3 mm ± 0,2 mm
6 x 2 x 0,14 mm2
8.0000.6905.XXXX.0032

Data sheet
M23 cable set, PVC, socket, 12-pin, counting direction cw + pin, counting direction ccw
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

HTL
TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
Female connector 12-pin TPE Ø 8,5 mm ± 0,9 mm
5 x 2 x0,14 mm2
8.0000.6E01.XXXX

Data sheet
M23 Cordset, PE-X, female, 12-pin, counting direction cw, end open
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

HTL
TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
Female connector 12-pin PUR Ø 6,7 mm ± 0,3 mm
10 x 0,14 mm2
8.0000.6J01.00XX.0051

Data sheet
M23 cable set, PUR, socket, 12-pin, counting direction cw, end open
DE EN FR
