Encoders Absolute multiturn
Sendix M5863
|
|
Energy Harvesting Technology: Electronic multiturn encoders.

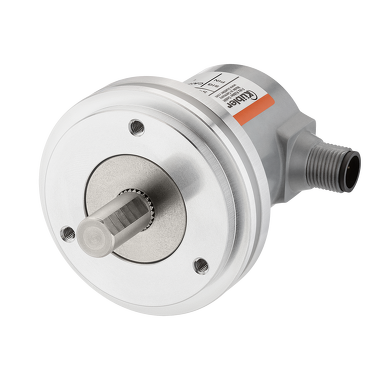

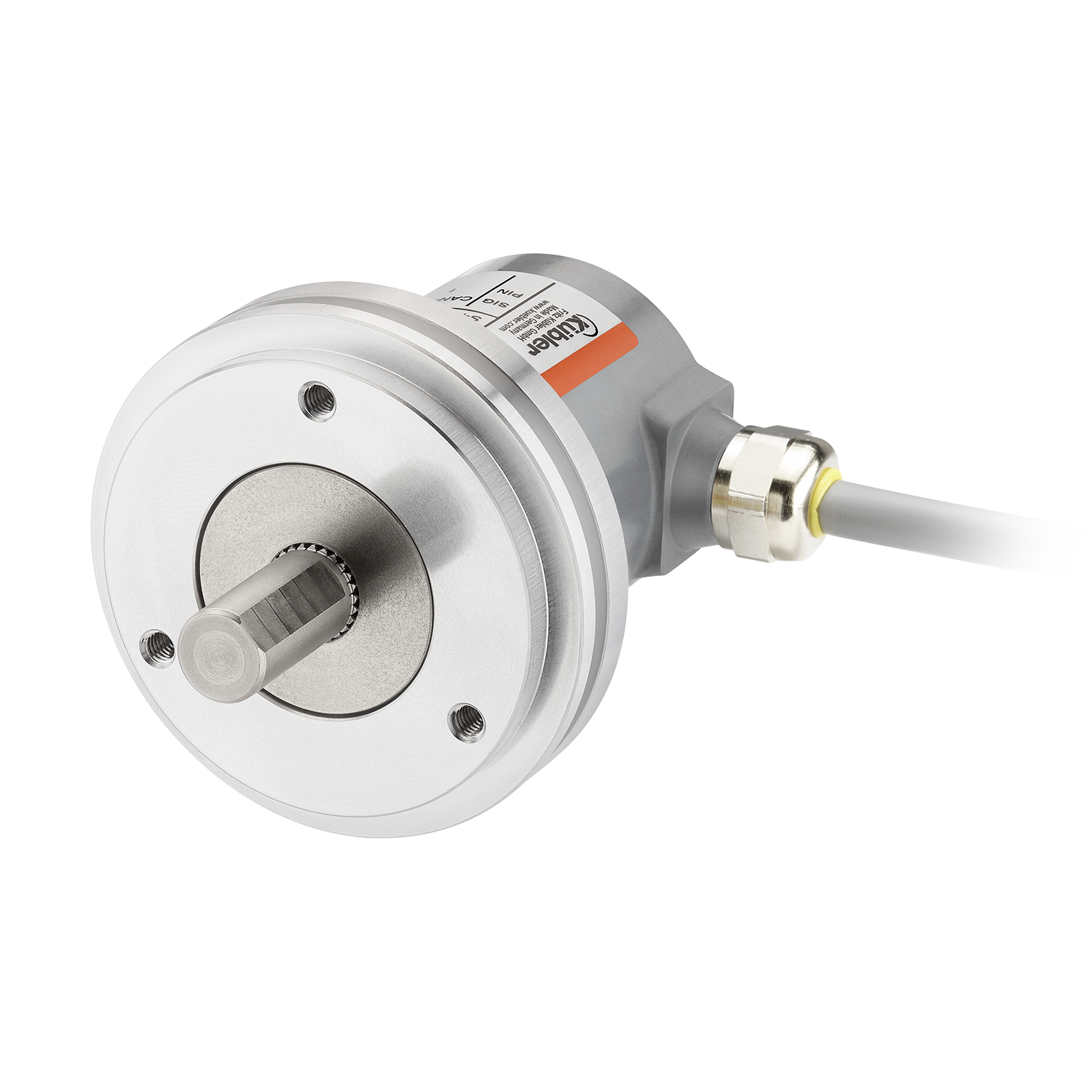

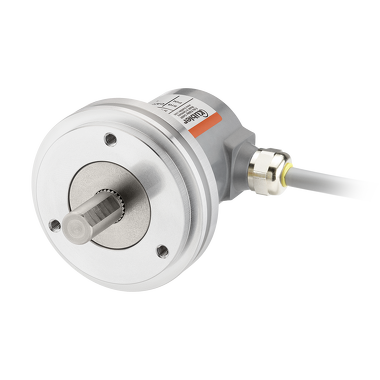

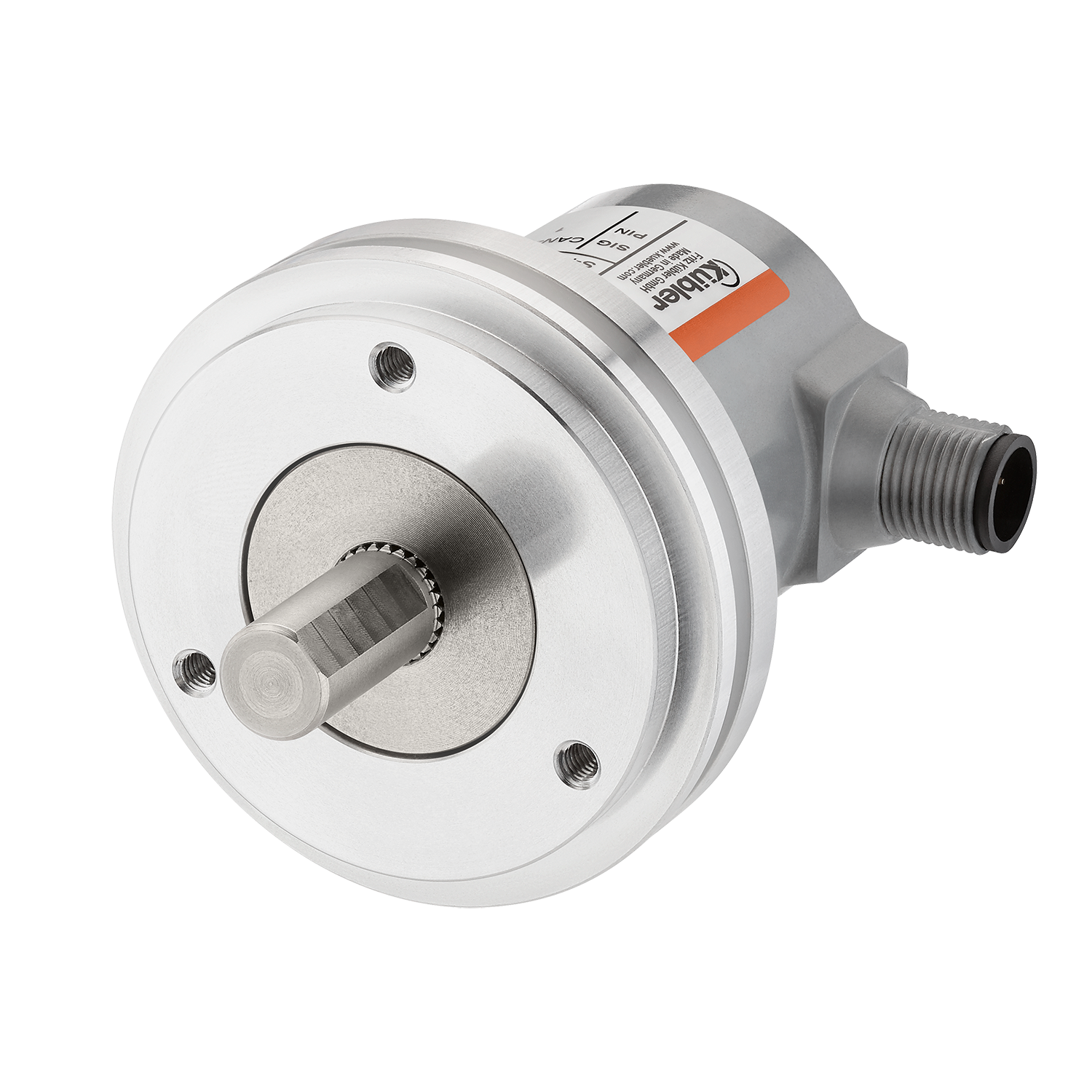

The Sendix M5863 absolute encoder with Energy Harvesting Technology and SSI interface is an electronic multiturn encoder without gears and without battery - in standard format with 58 mm flange. Due to its high robustness and high resolution, it is ideally suited for use in demanding applications.
| Mechanical | |
|---|---|
| Dimension | Ø 58 mm |
| Shaft type |
6 mm shaft, with flat surface 10 mm shaft, with flat surface |
| Flange type |
Synchro flange / Servo flange Clamping flange Ø 58.00 mm |
| Working temperature | -40 °C ... +85 °C |
| Protection level |
IP65 |
| Connection types |
Radial cable M12 connector radial |
| Max. rotational speed |
4.000 min-1 |
| Weight | 280 g |
| Electrical | |
|---|---|
| Scanning | magnetic |
| Resolution max. |
14 bits singleturn 24 bits multiturn |
| Power supply |
10...30 V DC |
| Interfaces |
SSI, binär SSI, gray |
Highest robustness
- Robust bearing construction in safety-Lockplus™ design for particularly high resistance.
- Extra large bearings.
- Mechanically protected shaft seal.
- Wide temperature range from -40°C to +85°C.
- Energy Harvesting Technology without gears and without battery.
- Angular measurement deviation ±0,5°.
- Repeat accuracy ±0.2°.
- Short control cycles, clock frequency at SSI up to 2 MHz.
- Resolution max. 38 bit (14 bit ST + 24 bit MT).
Accessories
Bellows coupling
Bellows couplings are used for the cost-optimized connection of motor and encoder. In addition, a correction of angular errors between drive and encoder is achieved. Compensation for larger axial errors.Bellows coupling (stainless steel).
| 8.0000.1102.0606 |
