Inclinometer
IN71
|
|
Individually parameterizable: Inclinometer for dynamic applications.
The inclinometers of the IN71 series are used to determine 2-axis inclinations in the measuring range of ±85° or 1-axis inclinations up to 360° via a sensor fusion of acceleration and rotation rate measuring cell (gyroscope). Various parameters can be customized for individual requirements (e.g. via the PACTware software). Thanks to their high robustness, the inclinometers are also ideally suited for outdoor use.| Mechanical | |
|---|---|
| Dimension | 62,6 mm x 71,6 mm x 20 mm |
| Connection types |
M12 connector |
| Working temperature | -40 °C ... +85 °C |
| Protection level |
IP68 IP69k |
| Electrical | |
|---|---|
| Measuring range | 0°...360° / -85°...+85° |
| Accuracy | ≤0.03 % / ≤0.06 % |
| Interfaces |
Redundant Analog 0...10 V Redundant Analog 4...20 mA |
| Power supply |
15...30 V DC |
Analog sensor with integrated IO-Link communication
- Configurable interfaces
- Parameterization via IO-Link
- Redundant / counter-rotating signals possible (1-axis)
- Reset to factory setting
- Center point of the measurement and start and end point for 1-dimensional measurement
- Switching the spirit level function on/off
- Settings on the measuring range
- Type of output signals
- Filter settings
- Thanks to sensor fusion of acceleration measuring cell and gyroscope. This also minimizes the effects of vibrations and interfering accelerations are minimized.
- LED display for operating status and FDT/IODD communication and for setting the center point position (spirit level function).
- Temperature range -40°C ... +85°C and protection class IP68 / IP69K.
- Protection against the influence of salt spray and rapid temperature changes.
Accessories
IO-Link Master
For parameterizing device settings via FDT/IODD communication. USB interface for easy connection to a PC and for power supply.| IOL1A.1K1341.ZZ1UU1 |
Cables and connectors

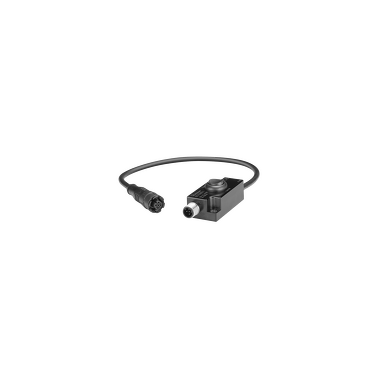

M12 Connector with cable , IO-Link Adapterkabel für IO-Link Master
Preassembled cable set
Male connector 5-pin
3 x 0,34 mm2
↓
Female connector 5-pin PUR Ø 4,3 mm ± 0,2 mm3 x 0,34 mm2
05.00.60H1.H4H2.01M5.S004
