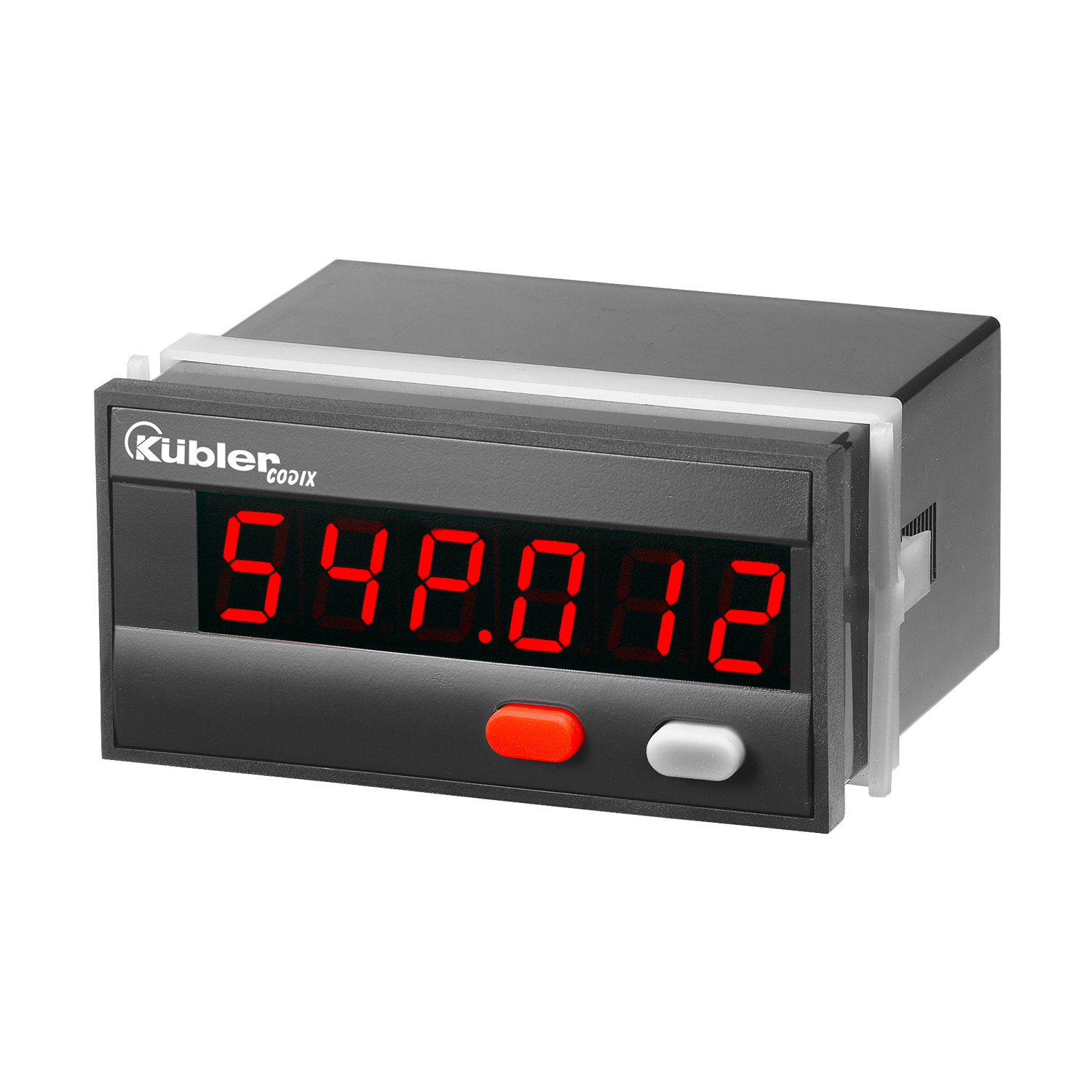

Codix 54P
Codix 54P

Dual-function display electronic

Codix 54P

  • 4 counter input types
  • Fast counter and frequency input
  • Exact and highly accurate frequency measuring method
  • Dimension
    · 96 x 48 mm | 92 x 45 mm
  • Power supply:
      · 100...240 (± 10%) V AC
      · 10...30 V DC
  • Display 6-digit number, LED

Position display with separate tachometer, scalable.

The Codix 54P is a voltage supplied pulse counter / position indicator with 4 counter input types and separate tachometer. With separate input, for fast and slow counting pulses, with 6-digit LED display for NPN, PNP input signals.

Mechanical
Model Dual-function device electronic
Functions Pulse counter
Frequency display
Position displays without limit values
Tachometer without limitvalues
Dual-function display
Dimension 1 96 x 48 mm | 92 x 45 mm
Protection level IP65
Working temperature -20 °C ... +65 °C
Weight 150 g
Reset electronic

(1) Front panel size | Panel cut-out
Electrical
Power supply 100...240 (± 10%) V AC
10...30 V DC
Signal input NPN
PNP
Powerful
  • Fast counter and frequency input, input frequency max. 30 kHz
  • Robust housing - IP65 protection
  • Very bright LED display, 14 mm high, 6 digits
  • Exact and highly accurate frequency measurement method (HRA-High Rate Accuracy System) Frequencies up to 38 Hz are evaluated by a period measurement. Frequencies > 38 Hz are evaluated via a special gate time measurement. Despite a short gate time, a very high accuracy of < 0.1% is achieved. The measurement result is available after max. 50 ms.
  • Short start-up time - Detects incoming pulses already after 16 ms after switching on the power supply => no pulse loss with simultaneous motor start
User-friendly and universal
  • Large keys (can also be operated with gloves)
  • Programming:
    • Simple and uniform programming and operation through plain text programming
    • Access to programming also during operation with safety query
    • Display switching by pressing the right button
  • Individually adjustable scaling Multiplication and division factor (0.0001 to 99.9999) to display the corresponding units in e.g. position in 1/10 mm and speed in rpm/.
  • Separate factors and inputs for frequency and pulse counting
  • 4 different counter input types for the position display: 2-channel input for acquisition of counting direction, differential or addition mode, phase discriminator with single, double, or quadruple evaluation. 1 separate input for speed and speed, display in 1/min or 1/sec
  • AC or DC supply with sensor power supply
  • Inputs: As an alternative to the HTL inputs, devices with a 5 V DC input level are also available for use as a parallel display to the PLC.
Data sheet

Codix 54P

PDF ∼ 960,7 KB | 03.2024
DE
EN
FR
Operation Manual

Codix 54P

Multilingual: German, English, English (USA), French, Italian, Spanish
PDF ∼ 1,6 MB | 01.2022

Programming instruction

Codix 54P

Multilingual: German, English, French, Italian, Spanish
PDF ∼ 220,0 KB | 04.2024

Declaration of conformity

Codix 54x CE

Multilingual: German, English, French
PDF ∼ 103,1 KB | 04.2022

Mechanical CAD / STEP

Codix 54x

∼ 9,6 MB | 06.2018

Product Certificates

UL Canada - Counters and process devices

PDF ∼ 78,6 KB | 01.2019
EN

UL USA - Counters and process devices

PDF ∼ 76,1 KB | 01.2019
EN

Accessories

Mounting frame, 48x96

Mounting frame, 48x96

For the installation of all devices with DIN dimensions 48x96mm. For mounting the devices on a DIN rail.
G.300.005
Data sheet
Mounting frame
DE EN FR

Sealing gasket N.511031

Sealing gasket N.511031

Outer dimension: 96 x 49 [3.78 x 1.929"]
Inner dimension: 92 x 45 [3.622 x 1.772"]
N.511031
Data sheet
Gaskets
DE EN FR
