Codix 907 Codix 907 Codix 907
Codix 907 Codix 907 Codix 907

Preset counter electronic

Codix 907

  • Adding and subtracting
  • With preset indicators
  • Reset function programmable
  • Dimension
    · 48 x 48 mm | 45 x 45 mm
  • Power supply:
      · 115 V AC
      · 230 V AC
      · 11...30 V DC

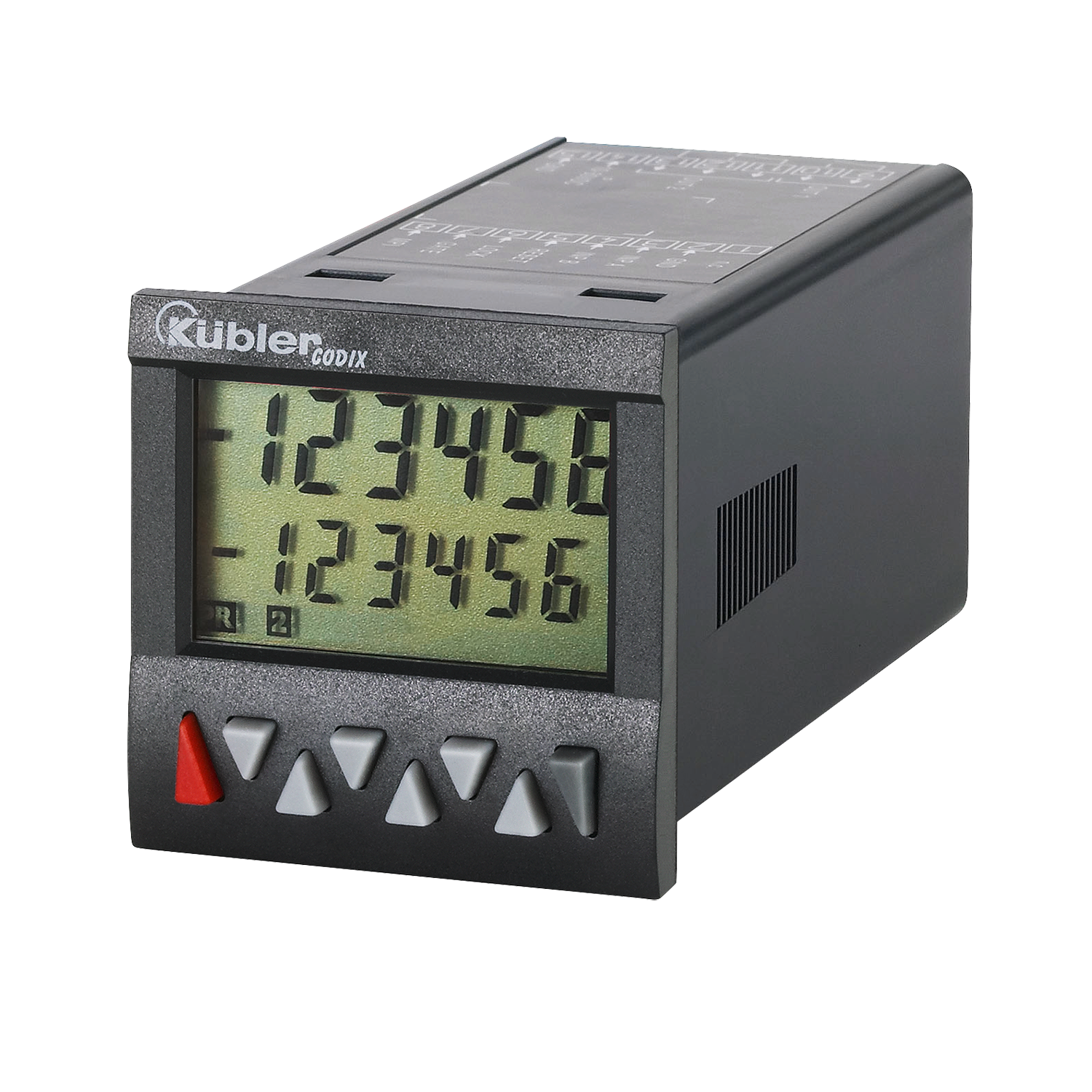

  • Display 6-digit number, LCD

Preset counter – for pulse, time and position with a preset.

The pulse and time preset counters Codix 907 and 908 offer all essential counter functions at an amazing price-performance ratio. Due to their small installation depth and pluggable screw terminals, the meters are easy and convenient to install; the 2-line LCD display can optionally be additionally illuminated. This makes it even easier to read at first glance.

Mechanical
Model Multifunction device electronic
Functions Multifunction devices
Time preset counter
Short-time meter
Position displays with limit values
Dimension 1 48 x 48 mm | 45 x 45 mm
Connection types Screw terminals
Protection level IP65
Working temperature -10 °C ... +50 °C
Weight 250 g
Reset electronic
manual

(1) Front panel size | Panel cut-out
Electrical
Power supply 115 V AC
230 V AC
11...30 V DC
Signal input NPN
PNP
Signal output 1 x Relais
Powerful
  • For pulse, time and position
  • Adding and subtracting
  • Reset automatically when reaching the preset, by key or electrically
  • Codix 907: 1 preset / Codix 908: 2 presets
  • 2 x 6-digit display and preset indicators from -999999 to +999999

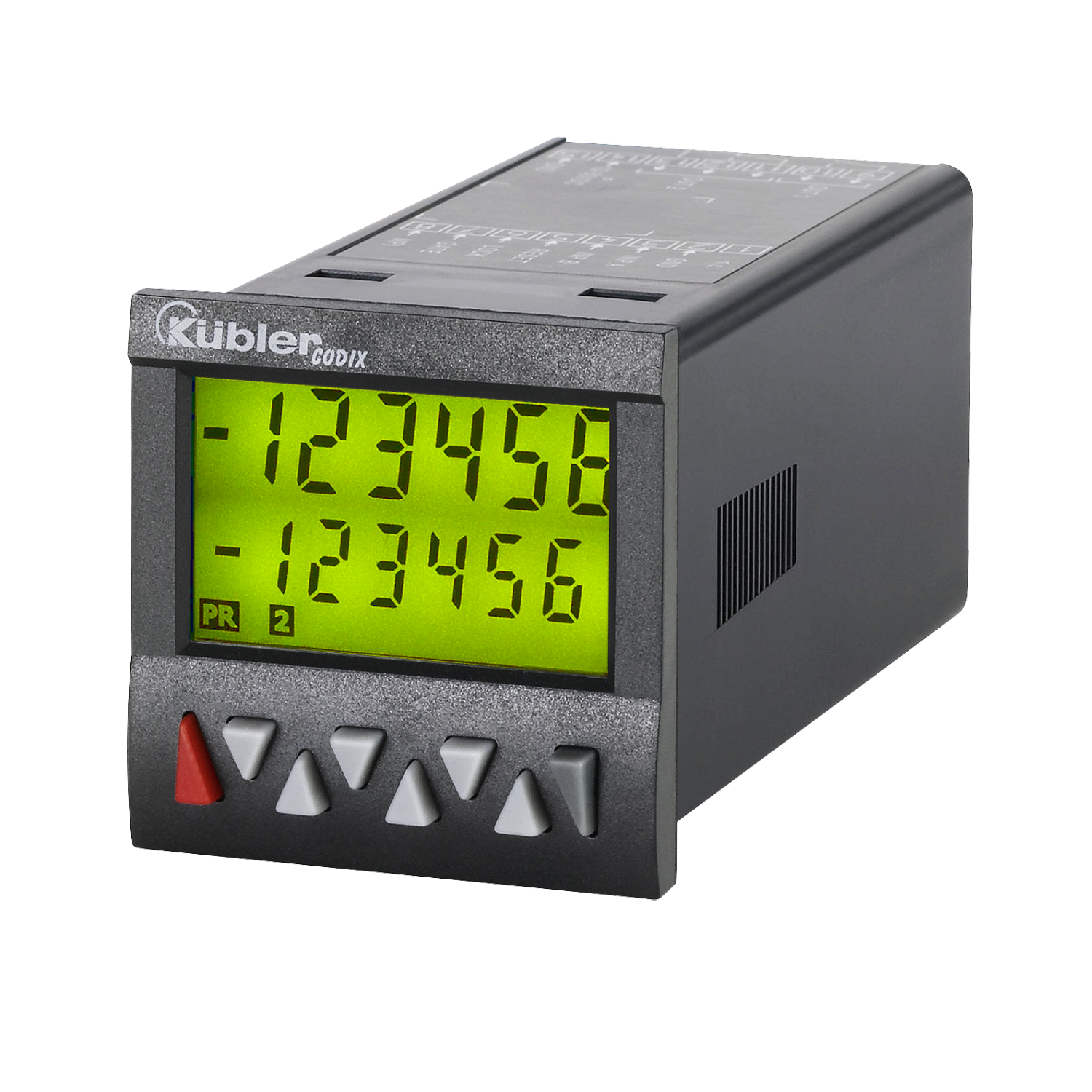

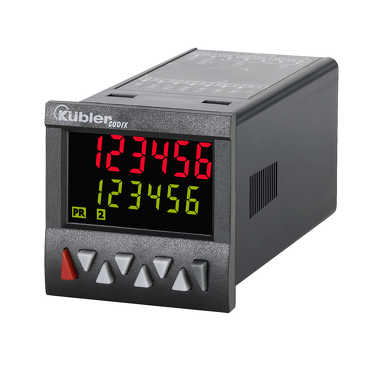

  • Display with or without backlight, 2 colors
Simple
  • Pluggable screw terminals
  • Plain text programming
  • Decade keypad
  • DC or AC power supply
  • Low installation depth
  • High protection (IP65) with integrated front panel seal
  • With preset indicators
Data sheet

Codix 907 / 908

PDF ∼ 584,6 KB | 08.2024
DE
EN
FR
Operation Manual

Codix 907

Multilingual: German, English, English (USA), French, Italian, Spanish
PDF ∼ 1.005,4 KB | 04.2024

Declaration of conformity

Codix 907 / 908 CE

Multilingual: German, English, French
PDF ∼ 102,0 KB | 04.2022

Mechanical CAD / STEP

Codix 907/908

∼ 14,8 MB | 09.2024

Electronic CAD / ePlan

Codix 907

ZIP ∼ 1,7 MB | 03.2021

Accessories

Transparent cover, lockable

Transparent cover, lockable

Transparent cover lockable with adapter frame for meter with installation dimension 45x45mm on cutout 50x50mm.

Seal, 2 mounting screws.
G.008.143
Data sheet
Transparent cover 1
DE EN FR

Transparent cover, key lock

Transparent cover, key lock

Transparent cover lockable with adapter frame for meter with installation dimension 45x45mm on cutout 50x50mm.

Seal, 2 mounting screws.
G.008.153
Data sheet
Transparent cover 1
DE EN FR

Sealing cover K2

Sealing cover K2

Flexible sealing cap for dimension F2, IP65 protection. Suitable for BVa15.13, BVa15.31, BVa15.33 and HVa15.31 within F2B. 2 B counters or 2 HB counters and MVs16.03 in frame F2M and junction box 926.1. 716, 717 901, 907, 908, 923, 924 with adapter frame 45 (T.008.860).
Grau G.008.302
Schwarz G.008.303
Data sheet
Sealing cover
DE EN FR

Mounting frame, 48x48

Mounting frame, 48x48

For the installation of all meters, timers with the DIN dimensions 48x48mm. Cutout 50x50mm. For snap-on mounting on 35mm DIN top hat rail

Meter holder (chrome-plated sheet steel), DIN hat-rail adapter (fiber-reinforced polyamide).
G.300.003
Data sheet
Mounting frame
DE EN FR

Bezel adapter 60

Bezel adapter 60

Push-on frame for front panel cutout diameter 60mm to 45x45mm.
N.510.226
Data sheet
Adapter front bezel (3)
DE EN FR

Bezel adapter 72

Bezel adapter 72

Adapter front frame for 68x68mm to 45x45mm cutout; additional holding frame available. Available in black and gray.
Grau T.008.176
Schwarz T.008.177
Gegenhalter T.009.420
Data sheet
Adapter front bezel (3)
DE EN FR

Bezel adapter 55

Bezel adapter 55

Adapter frame 55 for electric meter with 45x45mm installation space for 50x50mm cutout. Available in anthracite.
T.008.853
Data sheet
Adapter front bezel
DE EN FR

Adapter 45

Adapter 45

Adapter 75x60mm for 50x50mm to 45x45mm cutout for screw mounting. Available in black.
T.008.860
Data sheet
Adapter front bezel (3)
DE EN FR
