Encoders Incremental

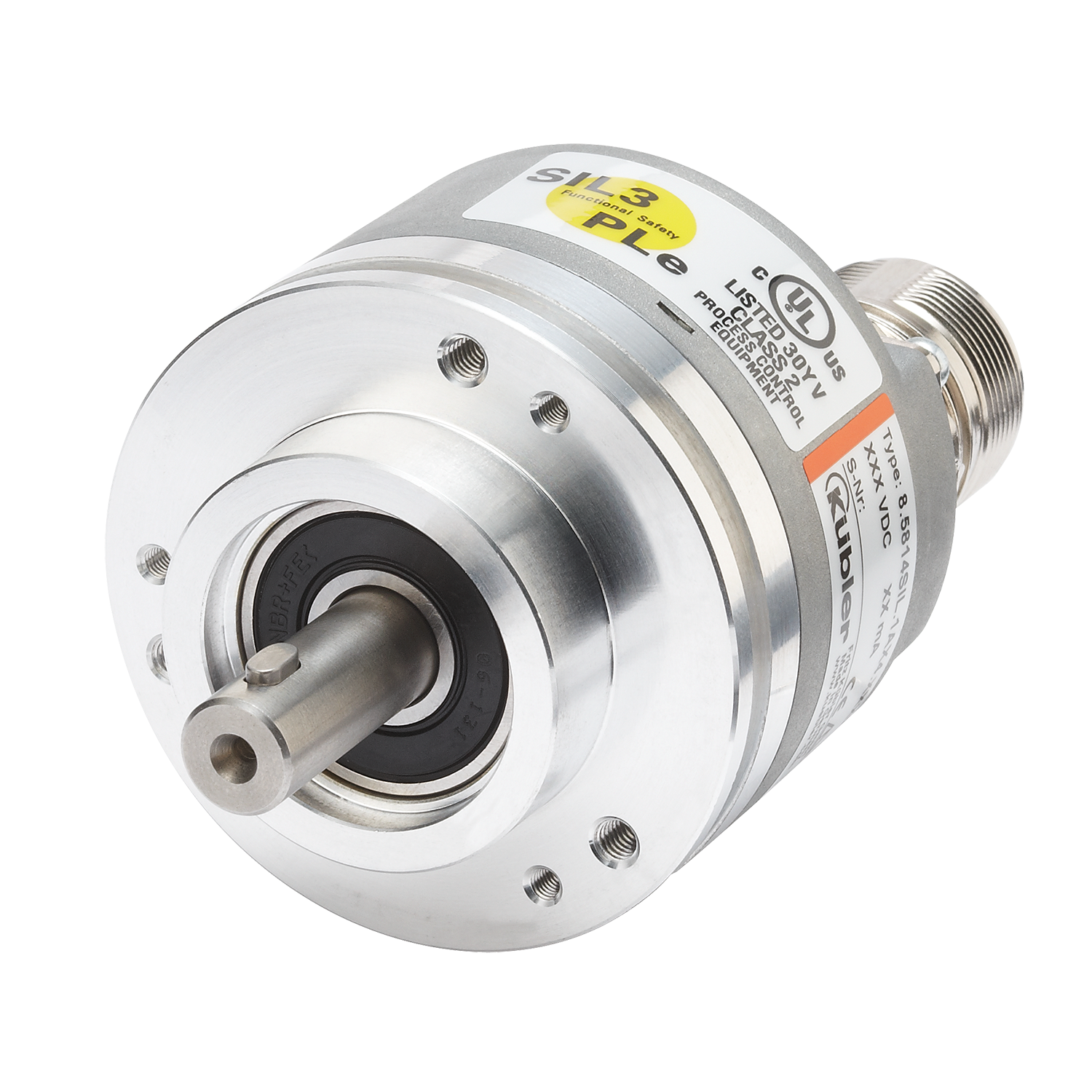

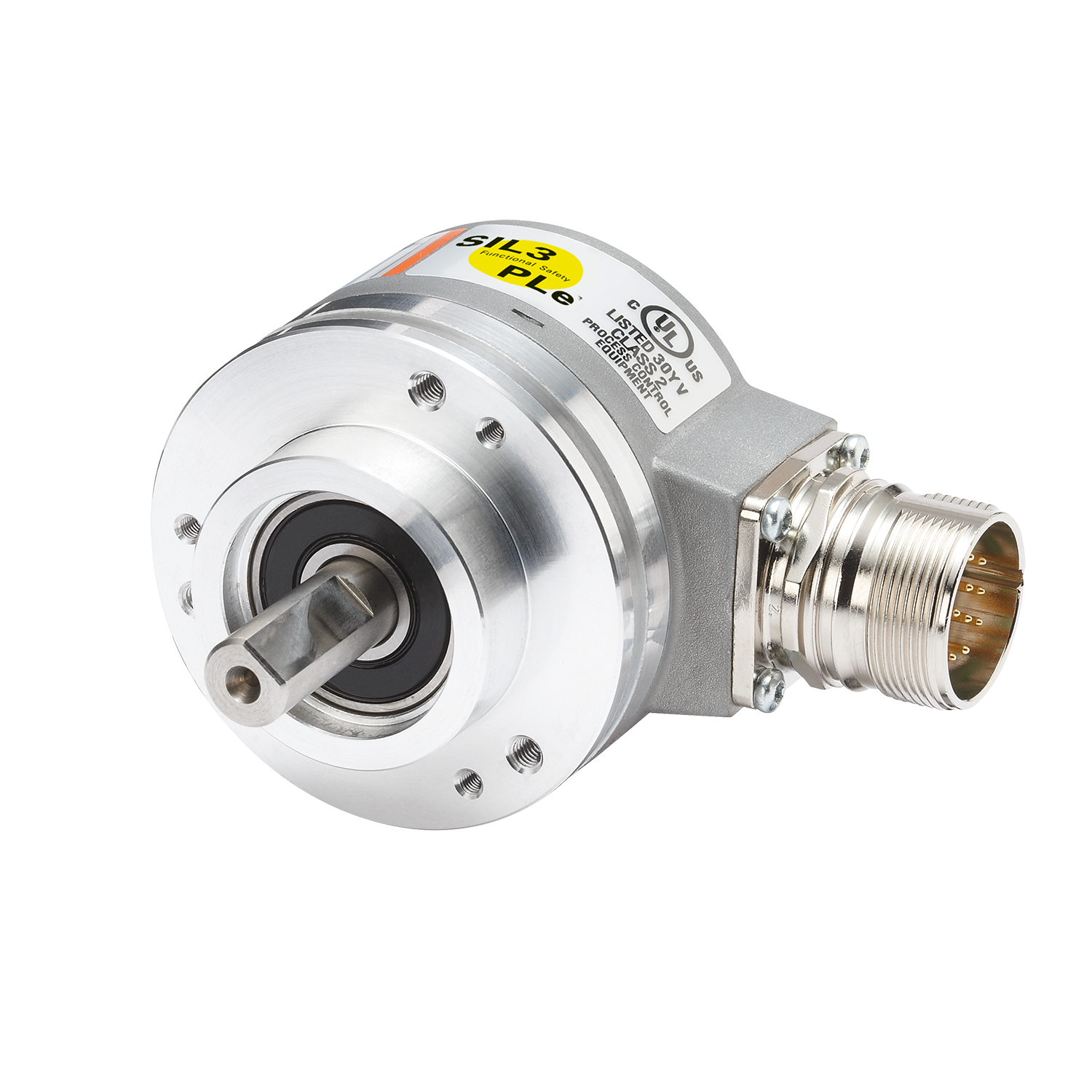

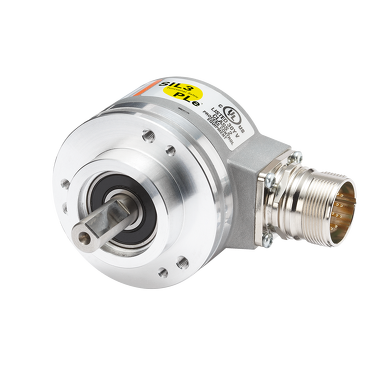

Sendix 5814FS3
|
|
Functional safety: safe speed measuring up to SIL3/PLe.
The incremental encoders Sendix 5814FS3 / 5834FS3 with SinCos interface are designed for use in safety-related applications up to SIL3 in accordance with
EN 61800-5-2 or PLe according to EN ISO 13849-1. For applications in the field of safe drive technology, these encoders ensure reliable operation.
| Mechanical | |
|---|---|
| Dimension | Ø 58 mm |
| Shaft type |
10 mm shaft, with flat surface 10 mm shaft, with feather key |
| Flange type |
Clamping flange Ø 58.00 mm |
| Working temperature | -40 °C ... +90 °C |
| Protection level |
IP65 IP67 |
| Connection types |
Axial cable Radial cable M23 connector axial M23 connector radial M12 connector axial M12 connector radial |
| Max. rotational speed |
12.000 min-1 |
| Weight | 450 g |
| Electrical | |
|---|---|
| Scanning | optical |
| Resolution max. |
2.048 ppr incremental |
| Power supply |
5 V DC 10...30 V DC |
| Interfaces |
SinCos |
| Options | |
|---|---|
| on request |
|
Functional safety technology
- Encoders with independent certificate from TÜV.
- Suitable for applications up to SIL3 according to EN 61800-5-2.
- Suitable for applications up to PLe according to EN ISO 13849-1.
- With incremental SinCos traces.
- Certified mechanical mounting and electronics.
- Shaft and hollow shaft variants
- Cable and connector variants.
- Different mounting variants available.
Accessories
Bellows couplings (FS)
Bellows couplings are used for the low backlash connection of motor and encoder. In addition, a correction of angular errors between drive and encoder is achieved.These bellows couplings (FS) provide a safe connection between the application and Sendix SIL encoders.
The safety-oriented bellows coupling has, in addition to the metallic bellows, internal claws that ensure the driving of the encoder in case of breakage of the bellows connection.
Variants - for shaft diameter d1/d2 in mm
10/10 - 10/12
| 8.0000.15FS.XXXX |
EMC shield terminal
For EMC-compliant installation of the encoder cable.- Mounting on top hat rail
- Shield diameter
8.0000.4G06.0312 (03-12 mm)
- Weight approx. 7.4 g
- Clamp (spring steel, galvanized)
- Foot (spring steel)
| 8.0000.4G06.0312 |
Adapter flange, square, 4 mm
For shaft encoders with clamping flange ø 50 ... 58 mmScope of delivery
- Flange adapter (aluminium)
- 3 screws for mounting on the encoder
Connection to the application (not included in delivery)
- 4 screws
| 58,0 mm x 4 mm | 8.0010.2100.0000 |
| 63,5 mm x 3 mm | 8.0010.2120.0000 |
| 70,0 mm x 10 mm | 8.0010.2600.0000 |
| 80,0 mm x 4 mm | 8.0010.2800.0000 |
Flange, Ø 115mm Euroflange
For shaft encoders with flange ø 50 ... 58 mmScope of delivery
- Flange adapter (aluminium)
- 3 screws for fastening to the encoder
Connection to the application (not included in delivery)
- 6 screws
| Drehgeber 580x/5000 | 8.0010.2160.0000 |
Flange, Ø 58mm
For shaft encoders with flange ø 50 ... 58 mmAdapter for converting a clamping flange into a synchro flange.
Scope of delivery
- Flange adapter (aluminium)
- 3 screws for mounting on the encoder
Connection to the application (not included in delivery)
- 3 screws
| 8.0010.2180.0000 |
Flange, Ø 65mm
For shaft encoders with flange ø 50 ... 58 mmWith this flange adapter, Kübler encoders of size 58 mm can replace third-party encoders of size 65 mm.
Scope of delivery
- Flange adapter (aluminium)
- 3 screws for mounting on the encoder
Connection to the application (not included in delivery)
- 3 screws
| 8.0010.2230.0000 |
Flange, Ø 90mm
For shaft encoders with flange ø 50 ... 58 mmAdapter for converting a clamping flange into a synchro flange. Mechanically compatible with encoder type 9000.
Scope of delivery
- Flange adapter (aluminium)
- 3 screws for fastening to the encoder
Connection to the application (not included in delivery)
- 6 screws
| 8.0010.2270.0000 |
Angular flange
For shaft encoders with flange ø 50 ... 58 mmScope of delivery
- Angle flange (aluminium)
- 3 screws for fastening to the encoder.
Connection to the application (not included in delivery)
- 2 screws
| 8.0010.2300.0000 |
