Encoders Incremental

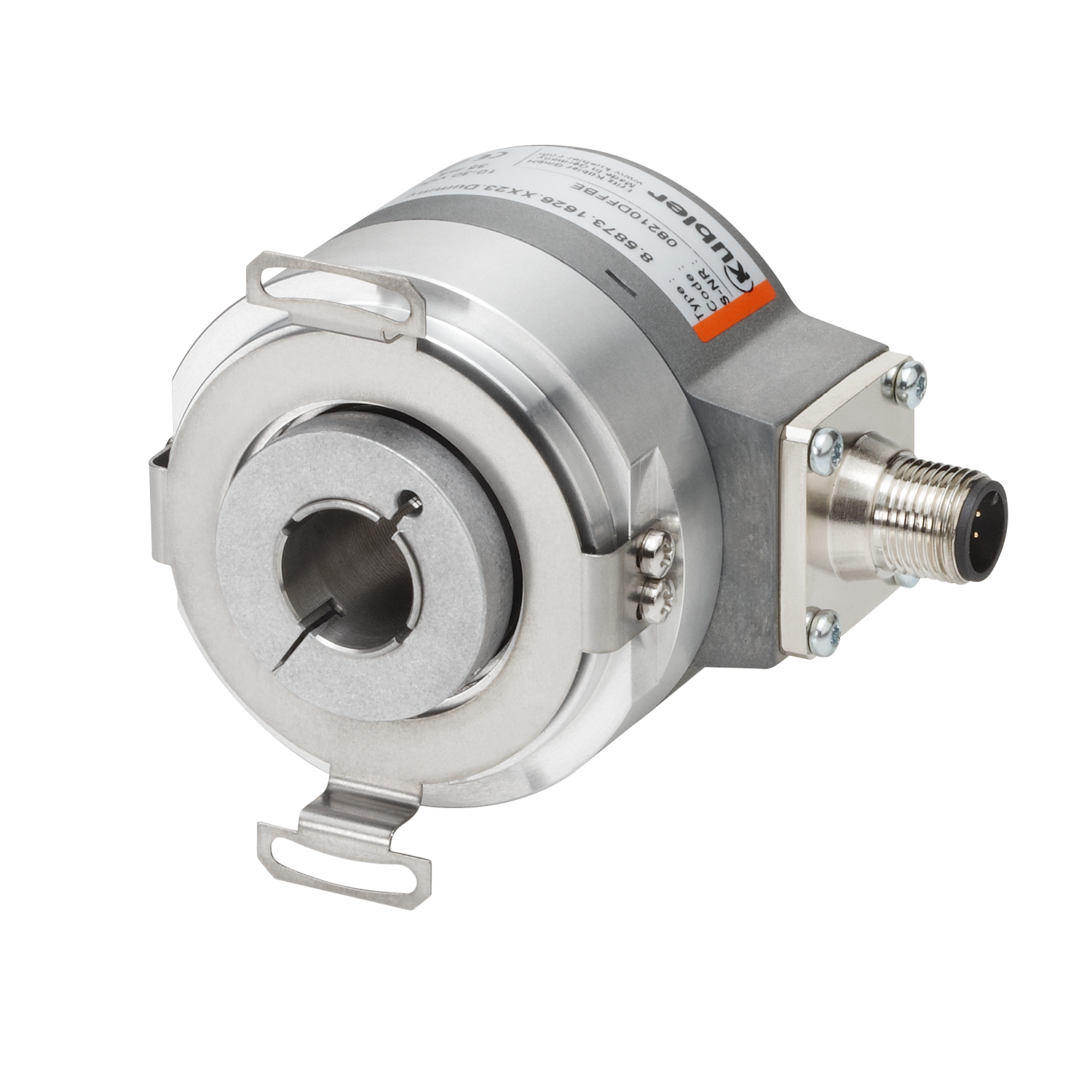

Sendix 5834
|
|
Highly interpolatable – ideal for drive technology.
The incremental encoders Sendix 5814 / 5834 with SinCos interface are preferably used in drive technology.
Due to their very high signal quality, they are ideally suited for further interpolation.
| Mechanical | |
|---|---|
| Dimension | Ø 58 mm |
| Shaft type |
10 mm hollow shaft, through 12 mm hollow shaft, through 14 mm hollow shaft, through 15 mm hollow shaft, through 3/8 " hollow shaft, through 1/2 " hollow shaft, through |
| Flange type |
Ø 57.20 mm Ø 58.00 mm Ø 63.00 mm |
| Working temperature | -40 °C ... +90 °C |
| Protection level |
IP65 |
| Connection types |
Radial cable Tangential cable M12 connector radial |
| Max. rotational speed |
12.000 min-1 |
| Weight | 450 g |
| Electrical | |
|---|---|
| Scanning | optical |
| Resolution max. |
2.048 ppr incremental |
| Power supply |
5 V DC 10...30 V DC |
| Interfaces |
SinCos |
| Options | |
|---|---|
| on request |
|
- With incremental SinCos traces.
- Very high signal quality.
- Suitable for extreme applications.
- Shaft and hollow shaft variants.
- Cable and connector variants.
- Different mounting variants available.
Accessories
Stator coupling
For hollow shaft encoders
with flange ø 50 ... 58 mm
Mounting radius 32.5 mm
For lateral mounting on the encoder flange.
For applications with axial and radial play at high dynamics.
Scope of delivery
- Stator coupling (stainless steel)
- 4 screws for mounting on the encoder
Connection to the application (not included in delivery)
- 3 screws
| 8.0010.1602.0000 |
Fastening arm, medium (flexible)
For hollow shaft encoderswith flange ø 50 ... 58 mm
Mounting radius 32.5 ... 45.75 mm
For applications with axial and radial play with constant rotary movements.
Scope of delivery
- Torque support (stainless steel)
- 3 screws for mounting on the encoder
Connection to the application (not included in delivery)
- 1 screw
| 8.0010.40E0.0000 |
Stator coupling
For hollow shaft encoders
with flange ø 50 ... 58 mm
Mounting radius 32.5 mm
For lateral mounting on the encoder flange.
For applications with axial and radial play at high dynamics.
Scope of delivery
- Stator coupling (stainless steel)
- 4 screws for mounting on the encoder
Connection to the application (not included in delivery)
- 3 screws
| 8.0010.40L0.0000 |
Fastening arm, short (flexible)
For hollow shaft encoderswith flange ø 50 ... 58 mm
Mounting radius 32.25 mm
For applications with axial and radial play at low dynamics.
Scope of delivery
- Torque support (stainless steel)
- 3 screws for mounting on the encoder
Connection to the application (not included in delivery)
- 1 screw
| 8.0010.40M0.0000 |
Spring tether element
For hollow shaft encoderswith flange ø 50 ... 58 mm
For applications with low radial and axial play and low dynamics.
Scope of delivery
- Wire spring element
- 1 screw for mounting on the encoder.
Connection to the application (not included in delivery)
- 1 screw
| 8.0010.40W0.0000 |
Stator coupling, double-winged
For hollow shaft encoders
with flange ø 50 ... 58 mm
Mounting radius 31.5 mm
For lateral mounting on the encoder flange. For applications with high accuracy requirements.
Scope of delivery
- Stator coupling (stainless steel)
- 4 screws for mounting on the encoder
Connection to the application (not included in delivery)
- 2 screws
| 8.0010.4D00.0000 |
Spring element, short
For hollow shaft encoderswith flange ø 36 ... 58 mm
Mounting radius 16 ... 27 mm
For applications with limited axial play at low dynamics and limited installation space.
Scope of delivery
- Spring element (plastic)
- 1 screw for mounting on the encoder
Connection to the application (not included in delivery)
- Parallel pin 8.0010.4700.0000
| 8.0010.4H00.0000 |
Spring element, long
For hollow shaft encoderswith flange ø 36 ... 58 mm
Mounting radius 30.7 ... 36.7 mm
For applications with high axial play, at low dynamics.
Scope of delivery
- Spring element (plastic)
- 1 screw for mounting on the encoder
Connection to the application (not included in delivery)
- Parallel pin 8.0010.4700.0000
| 8.0010.4I00.0000 |
Fastening arm, long, (flexible)
For hollow shaft encoderswith flange ø 50 ... 58 mm
Mounting radius 36.5 ... 85 mm
For applications with axial and radial play at low dynamics.
Scope of delivery
- Torque support (stainless steel)
- 3 screws for mounting on the encoder
Connection to the application (not included in delivery)
- 1 screw
| 8.0010.4R00.0000 |
