Encoders Absolute singleturn

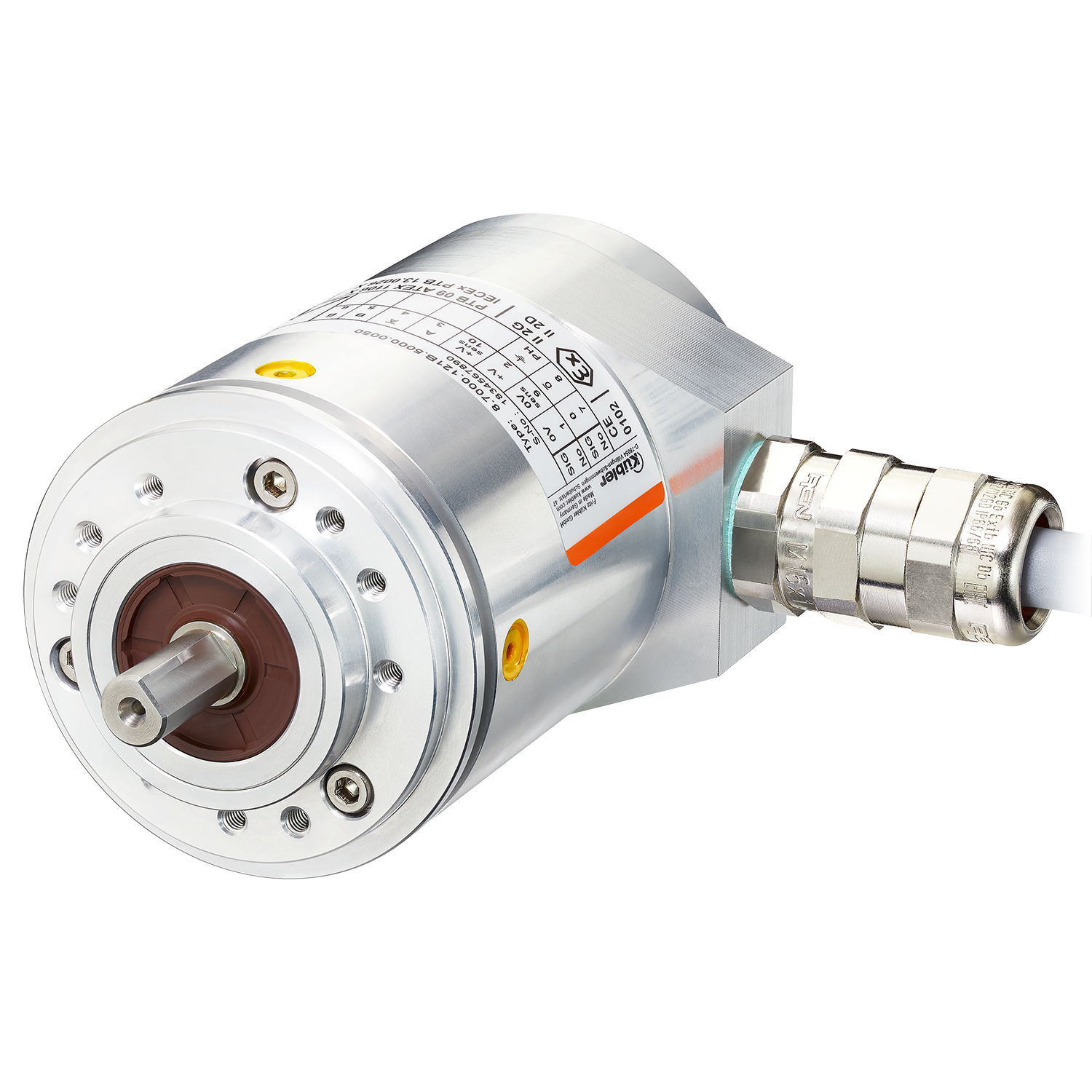

Sendix 7058
|
|
Explosion protection and field bus communication: Encoders with ATEX / IECEx approval.
The absolute singleturn Sendix 7058 / 7078 encoders with CANopen interface and optical sensors offer explosion protection in a compact 70 mm housing made of seawater-resistant aluminum. These shock- and vibration-resistant encoders operate flexibly with a resolution of up to 16 bits and are available with axial and radial cable outlets.
| Mechanical | |
|---|---|
| Dimension | Ø 70 mm |
| Shaft type |
10 mm shaft, with flat surface 12 mm shaft, with keyway |
| Flange type |
Ø 70.00 mm |
| Working temperature | -40 °C ... +60 °C |
| Protection level |
IP67 |
| Connection types |
Axial cable Radial cable |
| Max. rotational speed |
6.000 min-1 |
| Weight | 1500 g |
| Electrical | |
|---|---|
| Scanning | optical |
| Resolution max. |
16 bits singleturn |
| Power supply |
10...30 V DC |
| Interfaces |
CANopen |
Compact and safe
- Installation in limited installation space possible.
- Small installation depth, diameter 70 mm.
- Compact cable outlet axial or radial.
- Can be used in maritime applications - housing and flange made of seawater-resistant aluminum.
- Remains leak-free even in rough everyday use and offers high protection against field failures (IP67 protection).
- Type "Flameproof enclosure".
- ATEX with EU type examination certificate.
- IECEx with Certificate of Conformity (CoC).
Application exemples
- Break counting for service
- Zeitzählung
- Hour meter
- Car/truck counting
Accessories
Flange, Ø 115mm Euroflange
For shaft encoders with flange ø 70 mmScope of delivery
- Flange adapter (aluminium)
- 3 screws for fastening to the encoder
Connection to application (not included in delivery)
- 6 screws
| Drehgeber 70xx | 8.0010.2170.0000 |
