Encoders Absolute multiturn
Sendix M3663R
|
|
Energy Harvesting Technology: Electronic multiturn encoders – extremely robust!

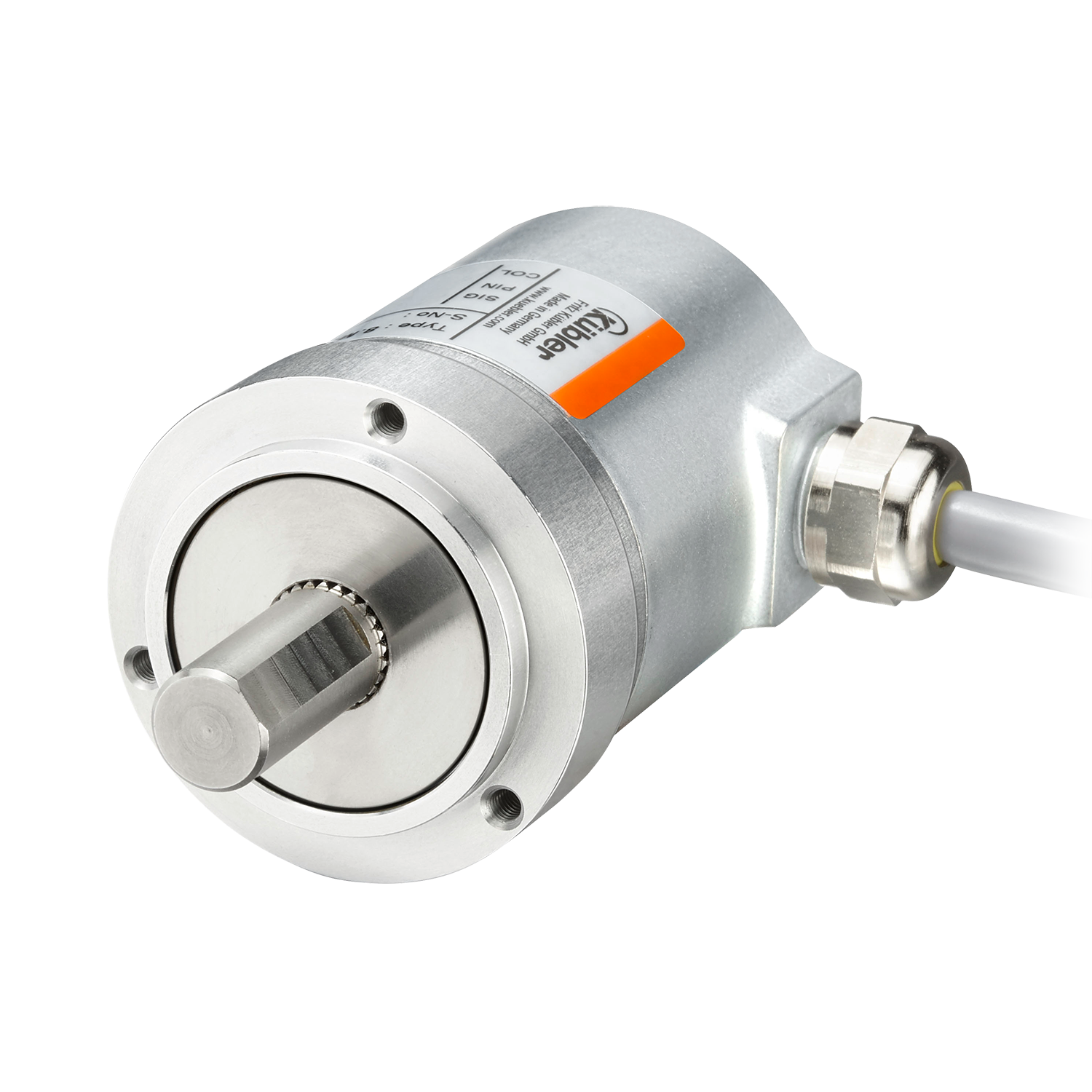

The absolute encoder Multiturn Sendix M3663R with SSI interface and magnetic sensor technology is based on Energy Harvesting Technology and is equipped without gears and without battery. Special features include an extremely robust design, very high protection, and high bearing load. A stainless steel version is available for maximum robustness and seawater resistance. This encoder provides a superior and durable performance in the harshest environments.
| Mechanical | |
|---|---|
| Dimension | Ø 36 mm |
| Shaft type |
6 mm shaft, with flat surface 8 mm shaft, with flat surface 10 mm shaft, with flat surface 1/4 " shaft, with flat surface |
| Flange type |
Clamping flange Ø 42.00 mm |
| Working temperature | -40 °C ... +85 °C |
| Protection level |
IP66 IP67 IP69k |
| Connection types |

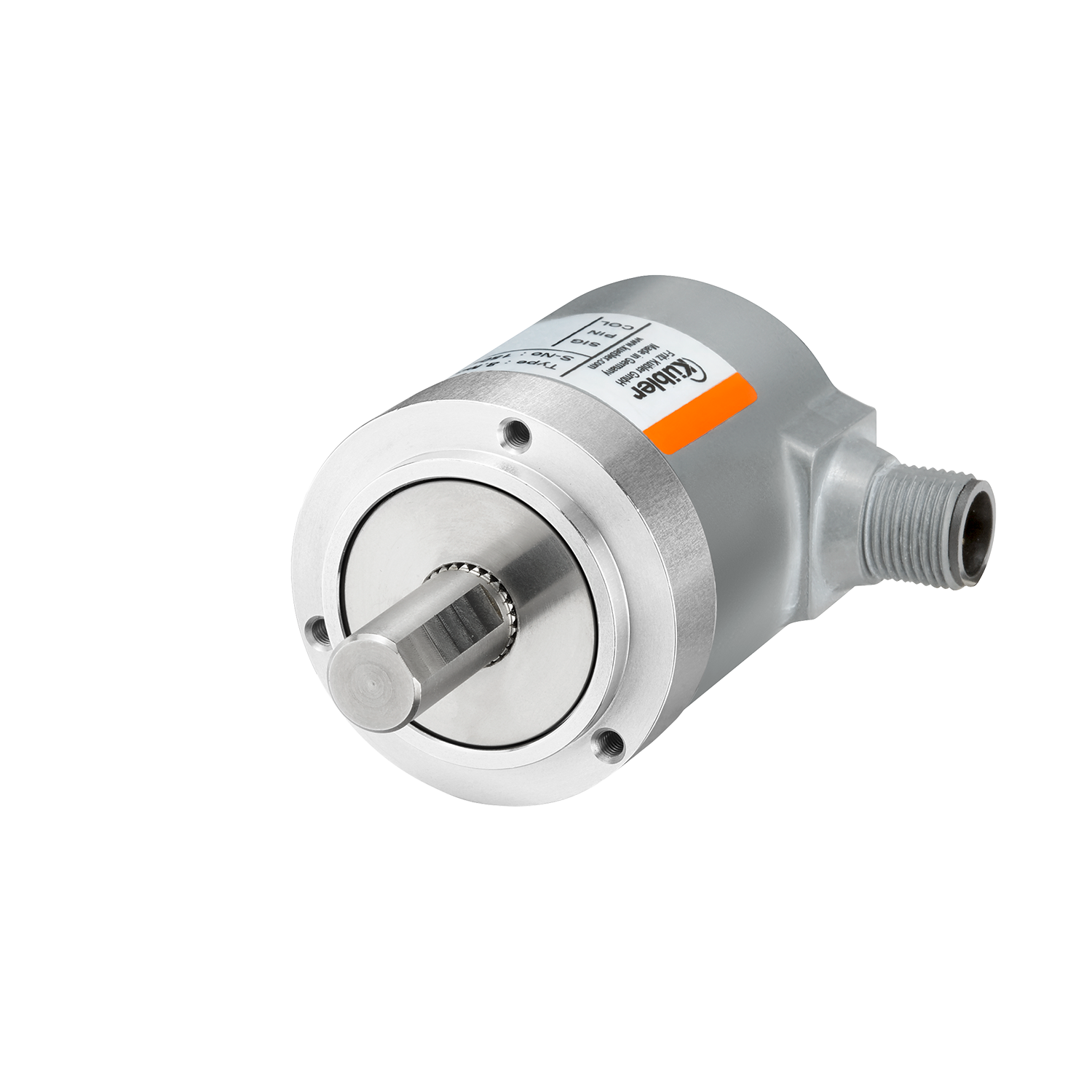

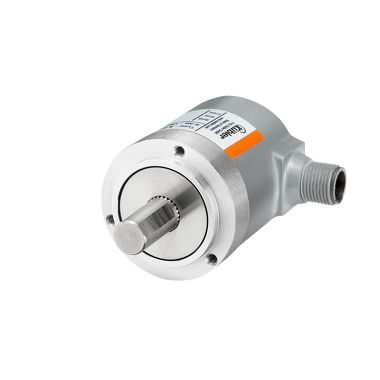

Radial cable M12 connector radial |
| Max. rotational speed |
4.000 min-1 |
| Weight | 250 g |
| Electrical | |
|---|---|
| Scanning | magnetic |
| Resolution max. |
14 bits singleturn 24 bits multiturn |
| Power supply |
10...30 V DC |
| Interfaces |
SSI, binär SSI, gray |
Highest robustness
- Robust bearing construction in safety-Lockplus™ design for particularly high resistance.
- Extra large bearings.
- Mechanically protected shaft seal.
- High IP67 and IP69k protection in one device.
- Wide temperature range from -40°C to +85°C.
- Energy Harvesting Technology without gears and without battery.
- Angular measurement deviation ±0,5°.
- Repeat accuracy ±0.2°.
- Short control cycles, clock frequency at SSI up to 2 MHz.
- Resolution max. 38 bit (14 bit ST + 24 bit MT).
Accessories
Bellows coupling
Bellows couplings are used for the cost-optimized connection of motor and encoder. In addition, a correction of angular errors between drive and encoder is achieved. Compensation for larger axial errors.Bellows coupling (stainless steel).
| 8.0000.1102.0606 |
