Encoders Absolute singleturn

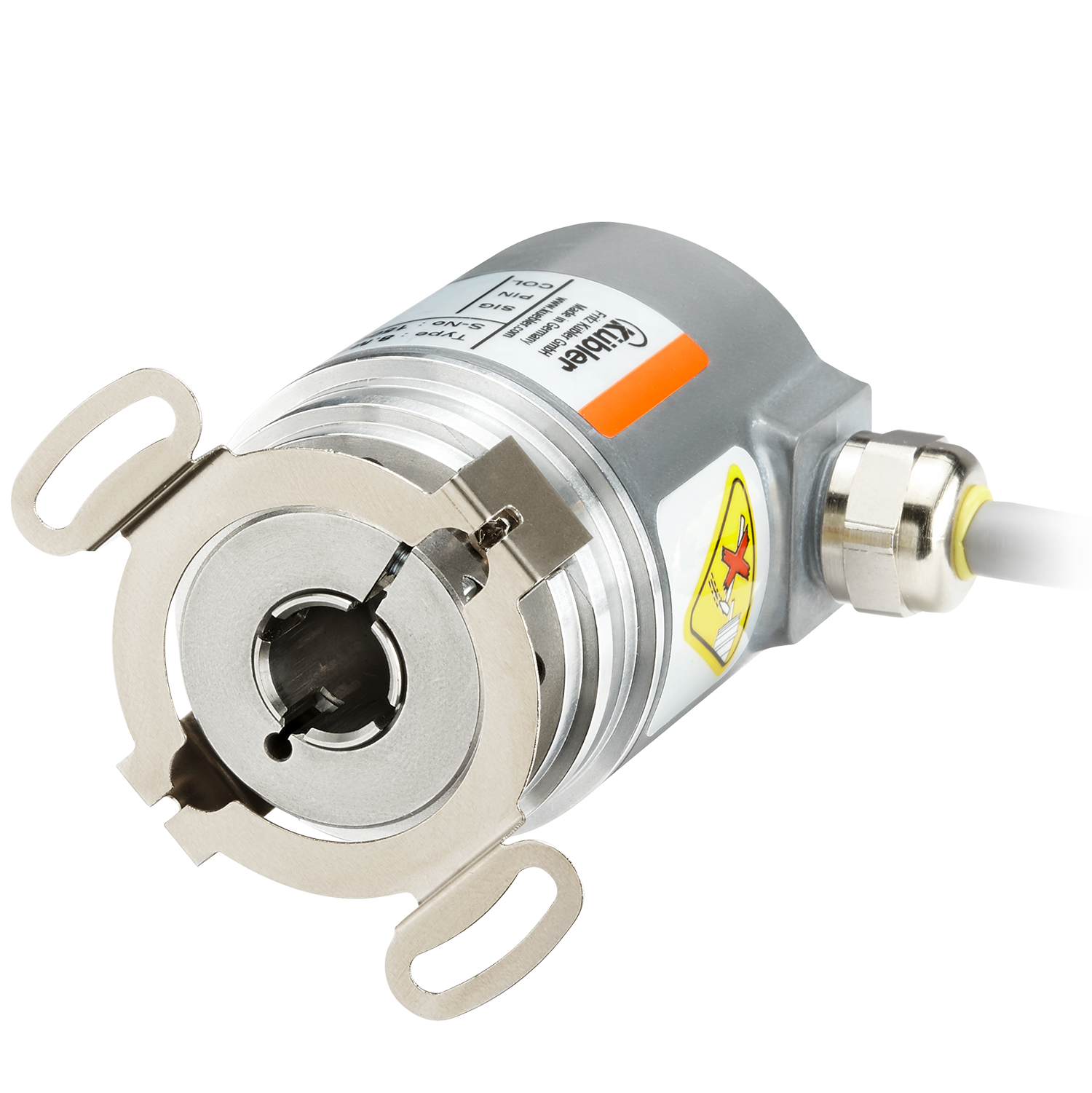

Sendix M3671A

  • Resistant
  • Wear-free
  • Magnetic – robust
  • Dimension Ø 36 mm
  • Max 10 mm hollow shaft, blind hole
  • Max 1/4" hollow shaft, blind hole
Analog 0–10 V

Magnetic singleturn encoder with analog interface.

The Sendix M3651A and Sendix M3671A singleturn encoders with analog interface and magnetic sensor technology are particularly flexible in use due to their diverse interfaces and measuring ranges.
A green LED as reference point and a red LED as error indicator simplify both installation and error diagnosis.

Mechanical
Dimension Ø 36 mm
Shaft type 6 mm hollow shaft, blind hole
8 mm hollow shaft, blind hole
10 mm hollow shaft, blind hole
1/4 " hollow shaft, blind hole
Flange type Spring element, long
Stator coupling

Ø 36.00 mm
Working temperature -40 °C ... +85 °C
Protection level IP65
IP67
Connection types Axial cable
Radial cable
M12 connector axial
M12 connector radial
Max. rotational speed 6.000 min-1
Weight 210 g
Electrical
Scanning magnetic
Power supply 10...30 V DC
15...30 V DC
Interfaces Analog 0...5 V
Analog 0...10 V
Analog 4–20 mA
Reliable and insensitive
  • Sturdy bearing construction in Safety-Lock™ design for resistance against vibration and installation errors.
  • Reduced number of components ensures magnetic insensitivity.
  • IP67 protection and wide temperature range -40 °C ... +85 °C.

Application oriented
  • Current output 4 ... 20 mA.
  • Voltage output 0 ... 10 V or 0 ... 5 V.
  • Different measuring ranges.
  • Set input for easy start-up.
Data sheet

Sendix M3651A / M3671A

PDF ∼ 639,1 KB | 07.2024
DE
EN
FR
Operation Manual

Operating manual for encoders with ATEX 2/22

Multilingual: German, English, French, Italian, Spanish
PDF ∼ 3,6 MB | 05.2023

Operation manual for encoders

Multilingual: German, English, French
PDF ∼ 2,9 MB | 09.2022

Manual

Encoder with analogue interface

PDF ∼ 946,1 KB | 11.2021
DE
EN
Safety characteristics

Sistema-Library

Multilingual: German, English, French
ZIP ∼ 6,3 MB | 07.2023

Declaration of conformity

Sendix M3651A / M3651AR / M3671A / M5851A CE

PDF ∼ 67,2 KB | 10.2021
DE
EN
Mechanical CAD / STEP

M367XA

ZIP ∼ 15,2 MB | 10.2021

Electronic CAD / ePlan

M3651A(R) / M3671A

ZIP ∼ 9,2 MB | 09.2022

Product Certificates

Encoder UL Canada

PDF ∼ 79,9 KB | 11.2019
EN

Encoder UL USA

PDF ∼ 78,2 KB | 11.2019
EN

Sendix M36xx / M58xx - E1

PDF ∼ 153,6 KB | 01.2022
DE

Salt spray test ManufacturersDeclaration

PDF ∼ 39,6 KB | 05.2023
DE
EN

Accessories

Torque pin, long with fastening thread

Torque pin, long with fastening thread

For hollow shaft encoders
with flange ø 36 ... 58 mm
With mounting thread.

Suitable for:
- Spring element short (8.0010.4H00.0000)
- Spring element long (8.0010.4I00.0000)
8.0010.4700.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR

Stator coupling, double-winged

Stator coupling, double-winged

For hollow shaft encoders
with flange ø 36 ... 37 mm
Mounting radius 23 mm
For front mounting on the encoder flange. For applications with axial and radial play at high dynamics.

Scope of delivery
- Stator coupling (stainless steel)
- 2 screws for mounting on the encoder

Connection to the application (not included in delivery)
- 2 screws

8.0010.4C00.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.4C00.0000

Spring element, short

Spring element, short

For hollow shaft encoders
with flange ø 36 ... 58 mm
Mounting radius 16 ... 27 mm
For applications with limited axial play at low dynamics and limited installation space.

Scope of delivery
- Spring element (plastic)
- 1 screw for mounting on the encoder

Connection to the application (not included in delivery)
- Parallel pin 8.0010.4700.0000
8.0010.4H00.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.4H00.0000

Spring element, long

Spring element, long

For hollow shaft encoders
with flange ø 36 ... 58 mm
Mounting radius 30.7 ... 36.7 mm
For applications with high axial play, at low dynamics.

Scope of delivery
- Spring element (plastic)
- 1 screw for mounting on the encoder

Connection to the application (not included in delivery)
- Parallel pin 8.0010.4700.0000
8.0010.4I00.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.4I00.0000

Cables and connectors

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin PUR Ø 4,7 mm ± 0,2 mm
4 x 0,34 mm2
05.00.6021.E211.XXXM

Data sheet
M12 cordset, PUR, socket, V4A, 5-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
IO-Link
Power supply
Female connector 4-pin PUR Ø 4,7 mm ± mm
4x0,34 mm2
05.00.6061.6211.XXXM

Data sheet
M12 cordset, PUR, socket, 4-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
IO-Link
Power supply
Male connector 4-pin PUR Ø 4,7 mm ± 0,2 mm
4x0,34 mm2
05.00.6061.6311.xxxM

Data sheet
M12 cordset, PUR, socket, angled, 4-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
IO-Link
Power supply
Female connector 4-pin

Male connector 4-pin PUR Ø 4,7 mm ± 0,2 mm
4 x 0,34 mm2
05.00.6061.6462.XXXM

Data sheet
M12 cordset, PUR, socket, 4-pin, A-coded + pin
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
IO-Link
Power supply
Female connector 4-pin PUR Ø 4,7 mm ± 0,2 mm
4 x 0,34 mm2
05.00.6061.D211.XXXM

Data sheet
M12 cordset, PUR, socket, V4A, 4-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin PVC Ø 5,5 mm ± 0,2 mm
5 x 0,25 mm2
05.00.6081.2211.XXXM

Data sheet
M12 cordset, PVC, socket, 5-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin PVC Ø 4,7 mm ± 0,2 mm
3 x 2 x 0,25 mm2
05.00.6091.A211.XXXM

Data sheet
M12 cordset, PVC, socket, 5-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin PVC Ø 4,7 mm ± 0,2 mm
3 x 2 x 0,25 mm2
05.00.6091.A311.XXXM

Data sheet
M12 cordset, PVC, female, angled, 5-pin, A-coded, end open, CANopen
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Female connector 5-pin

Male connector 5-pin PVC Ø 4,7 mm ± 0,2 mm
3 x 2 x 0,25 mm2
05.00.6091.A4A2.XXXM

Data sheet
M12 cable set, PVC, socket, 5-pin, A-coded
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Female connector 5-pin

Male connector 5-pin PVC Ø 4,7 mm ± 0,2 mm
3 x 2 x 0,25 mm2
05.00.6091.A5A3.XXXM

Data sheet
M12 cordset, PVC, female, angled, 5-pin, A-coded, male, angled, CANopen
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
SAE J1939
Modbus
Female connector 5-pin

Male connector 5-pin Ø 5,6 mm ± 0,2 mm
5 x 0,34 mm2
05.00.60F1.A2A4.0xxM

Data sheet
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin
05.B-8151-0/9

Data sheet
M12 socket, 5-pin
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin
05.B-8251-0/9

Data sheet
M12 socket, angled, 5-pin, A-coded
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Analog ±10 V
IO-Link
Power supply
Female connector 4-pin
05.B8141-0

Data sheet
M12 socket, 4-pin, A-coded
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Analog ±10 V
IO-Link
Power supply
Female connector 4-pin
05.B8241-0

Data sheet
M12 socket, angled, 4-pin, A-coded
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin
8.0000.5116.0000

Data sheet
M12 socket, 5-pin, A-coded
DE EN FR

M12 Connector , for the Ex-area

M12 Connector , for the Ex-area

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin
8.0000.5116.0000.Ex

Data sheet
M12 socket, Ex 2/22, 5-pin, A-coded
DE EN FR

M12 Connector ,  Stainless steel V4A

M12 Connector , Stainless steel V4A

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin
8.0000.5116.0000.V4A

Data sheet
M12 socket, stainless steel V4A, 5-pin, A-coded
DE EN FR
