Draw-wire encoders
A41
|
|
Draw-wire mechanism with encoder.

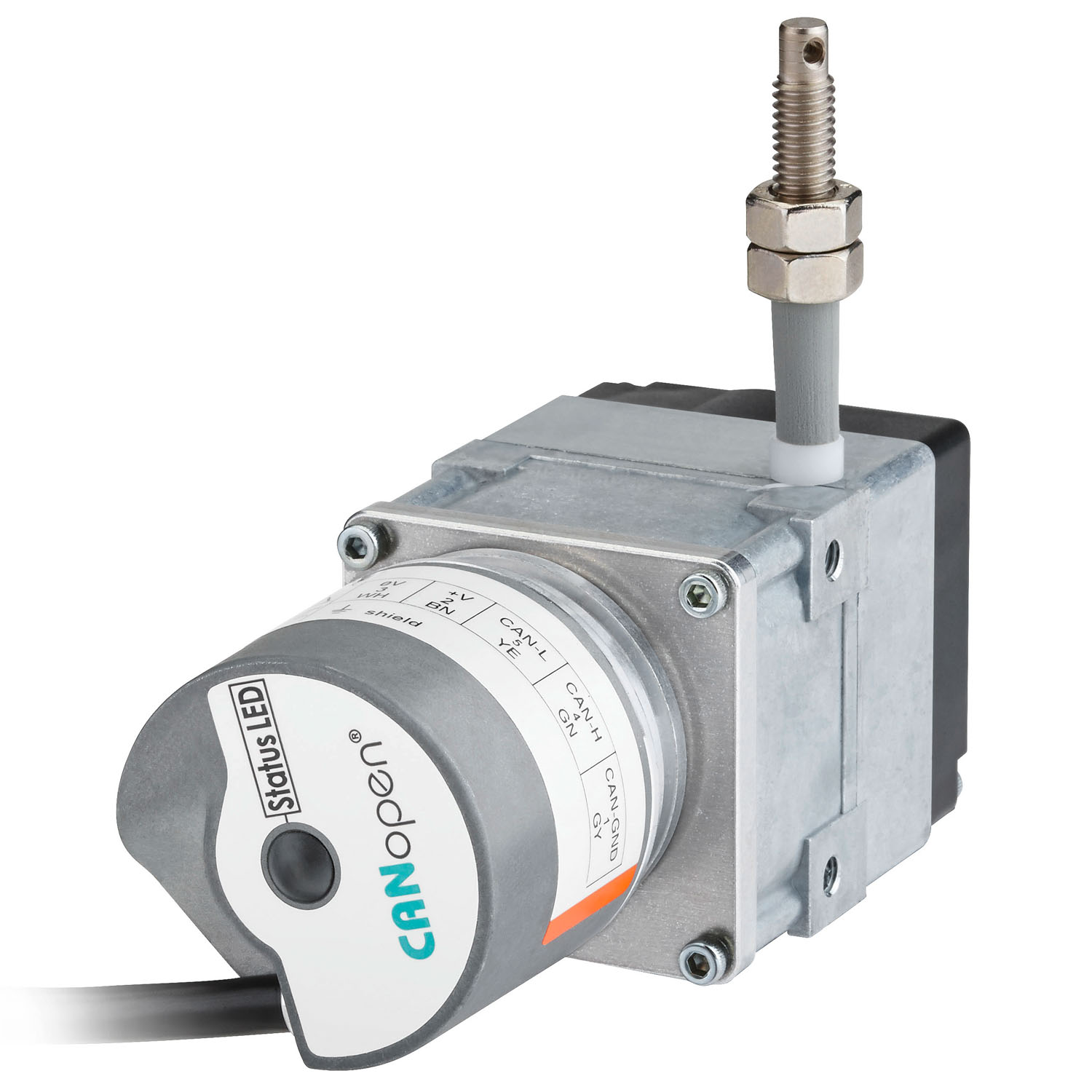

The draw-wire mechanics A41 with absolute encoder excels with its compact construction.These draw-wire mechanics can be equipped with multiturn encoders of the F366x and M366x series. The maximum measuring length is 2 meters.
| Mechanical | |
|---|---|
| Measuring system | Draw-wire encoders |
| Measuring length |
2 m |
| Speed |
1 m/s |
| Dimension | 50 mm x 50 mm x 77 mm |
| Connection types |
M12 connector axial |
| Working temperature | -10 °C ... +80 °C |
| Protection level |
IP65 |
| Weight | 200 g |
| Electrical | |
|---|---|
| max. linearity |
±0,35 % |
| Interfaces |
Analog 0...10 V Analog 4–20 mA CANopen SAE J1939 SSI, binär BiSS IO-Link |
| Power supply |
10...30 V DC 15...30 V DC |
Compact and simple
- Measuring length up to 2000 mm.
- Scalable analog output with limit switch function.
- For applications with low traverse speeds.
- Easy mounting.
- Robust zinc die-cast housing.
Accessories
Extension cable Paraleine
With extension cables, the actual measuring range can be used without any loss of resolution. We offer numerous extension cables in our portfolio for this purpose.| 2 m | 8.0000.7000.0032 |
Extension cable steel
With extension cables, the actual measuring range can be used without any loss of resolution. We offer numerous extension cables in our portfolio for this purpose.| 2 m | 8.0000.7000.0033 |
| 5 m | 8.0000.7000.0034 |
| 10 m | 8.0000.7000.0035 |
Guide pulley
With guide pulleys, linear movements can also be directed around obstacles. This not only increases their flexibility but can also compensate for installation tolerances. Idler pulleys can also act to clean off dirt and break ice.Technical data:
- Installation angle (anodized aluminum)
- Guide pulley (plastic POM)
- Ball bearing (Type 696-2R5)
- 2 x countersunk screws for side fixing
- 2 x Allen screws for fixing on a flat surface
| 8.0000.7000.0045 |
