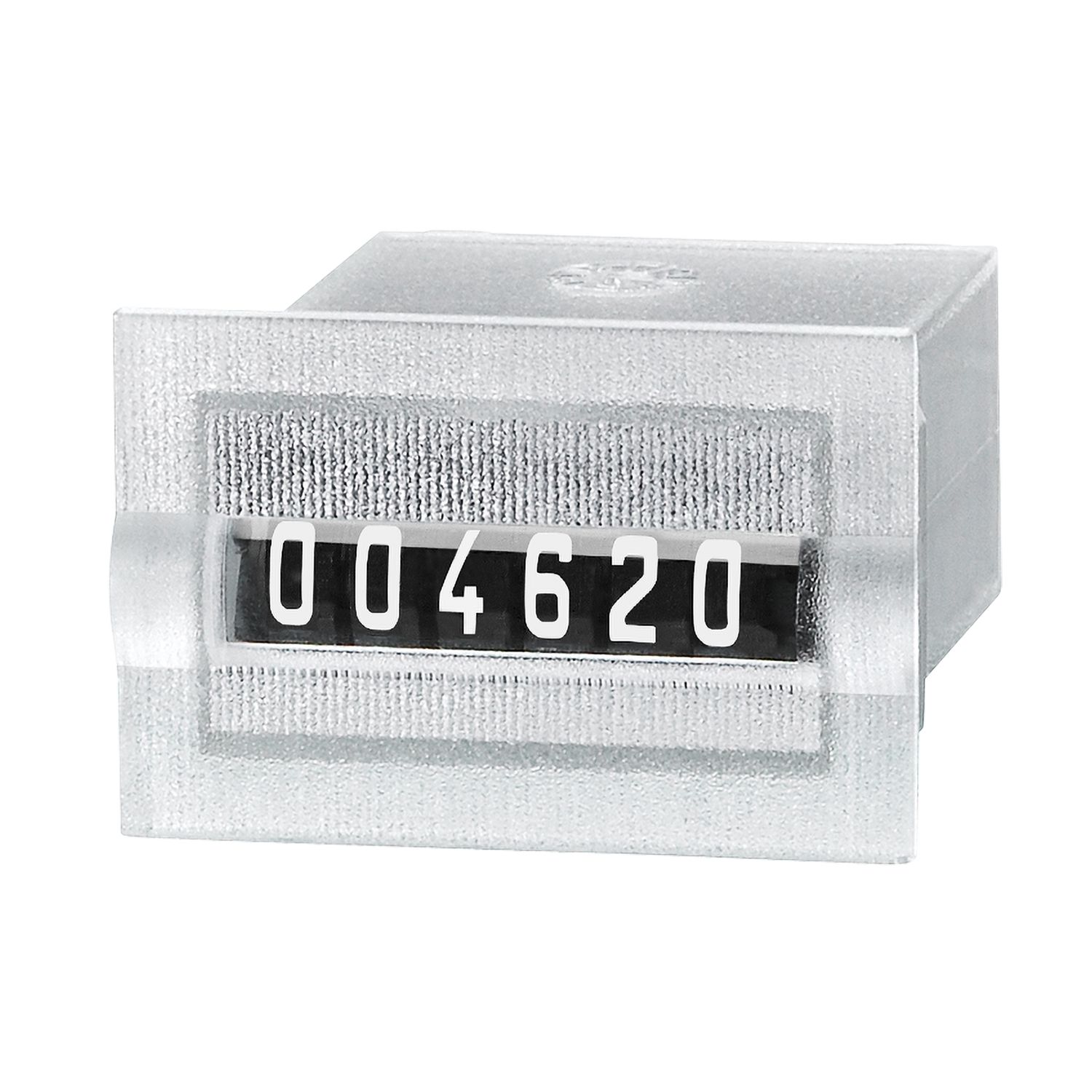

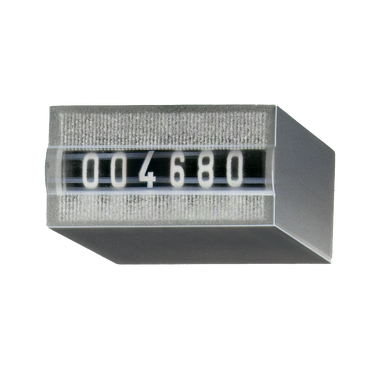

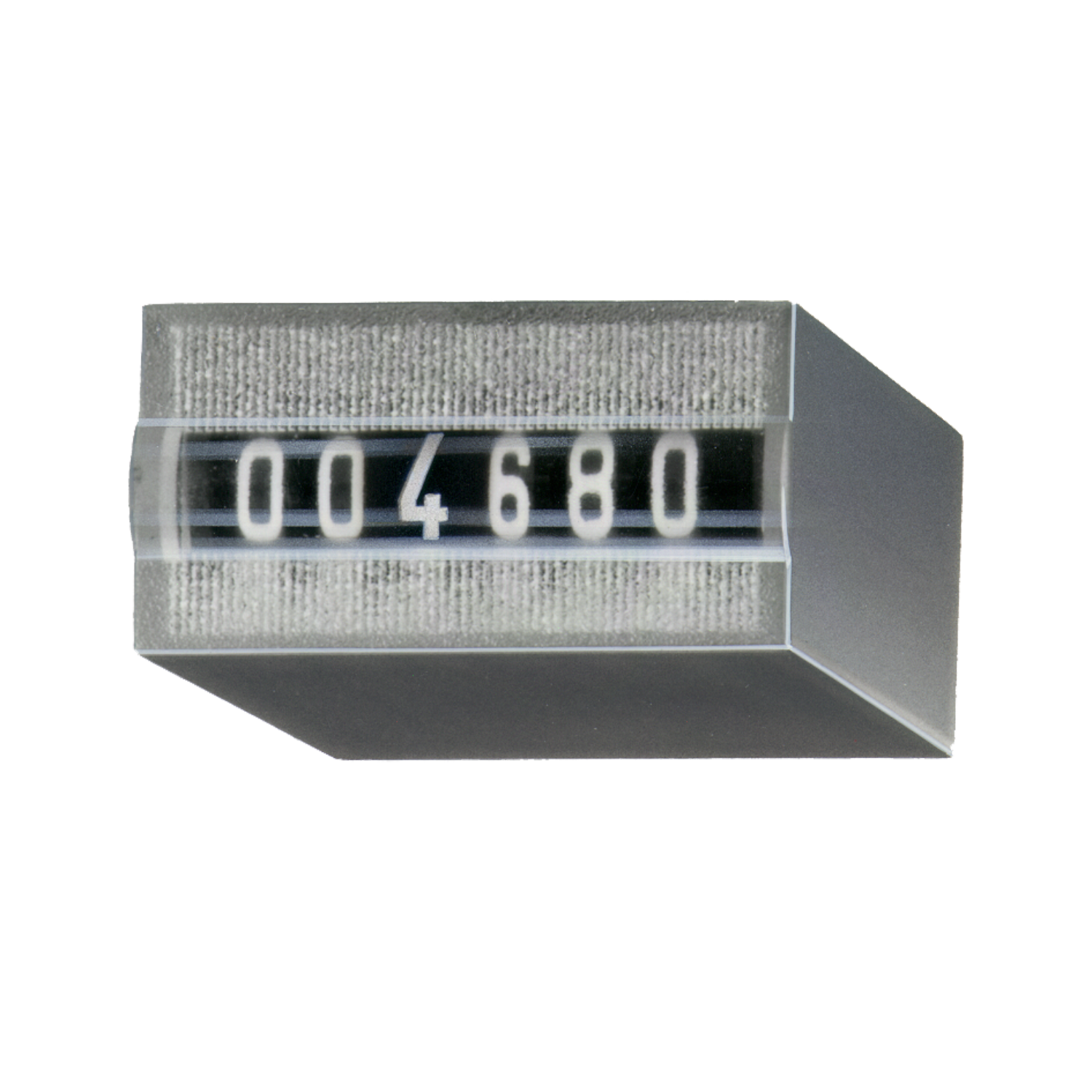

Pulse counter electromechanical

K46

  • High shock resistance
  • High protection, IP65
  • Retains value in the event of power failure
  • Dimension
    · 25 x 13,8 mm
    · 25,2 x 31 mm
    · 30 x 20 mm | 27 x 14 mm
  • Power supply:
      · 3 V DC
      · 4,5 V DC
      · 5 V DC
      · 6 V DC
      · 12 V DC
      · 24 V DC
  • Display 6-digit number, mech. roller counter

Micro pulse counter, 6-digit.

K46 micro totaling counters are characterized by a very high shock resistance. As built-in and print counters, they can be used in various application areas. The non-resettable counters are extremely tamper-proof due to the encapsulated housing.

Mechanical
Model electromechanical
Dimension 1 25 x 13,8 mm
25,2 x 31 mm
30 x 20 mm | 27 x 14 mm
Protection level IP65
Working temperature -30 °C ... +85 °C
Weight 14 g

(1) Front panel size | Panel cut-out
Electrical
Power supply 3 V DC
4,5 V DC
5 V DC
6 V DC
12 V DC
24 V DC
Properties
  • 6-digit micro totalizer.
  • Inexpensive.
  • Low power consumption; suitable for battery operation.
  • Small size, large optical digits.
  • Various reading options.

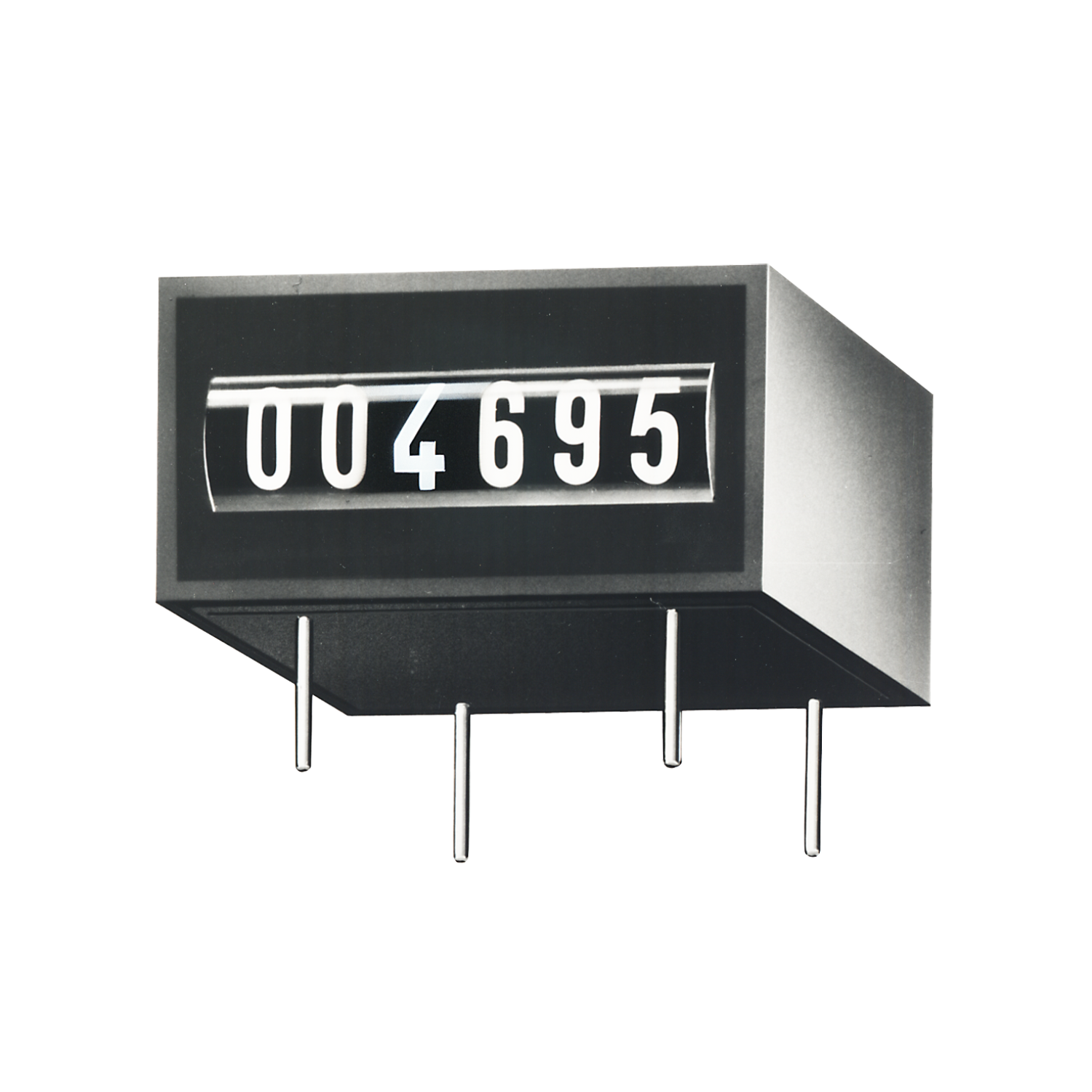

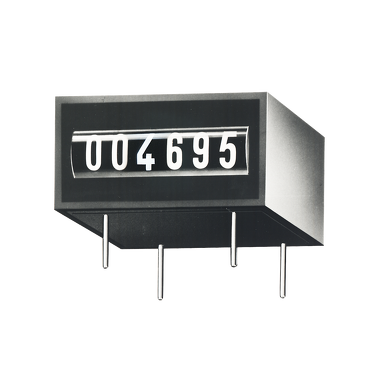

  • Built-in counters with snap-in springs or print counters for circuit board mounting.

Benefits
  • Machine solderable and washable.
  • High shock resistance.
  • Long service life.
  • IP65 protection.
  • Retains value in the event of power failure.

Applications
General quantity counting, alarm systems, coin-operated machines, power meters, vending and gambling machines, photocopying machines, medical technology, washing plants
Data sheet

K46 / K47

PDF ∼ 614,5 KB | 08.2024
DE
EN
FR
Declaration of conformity

K46 / K47 CE

Multilingual: German, English, French
PDF ∼ 170,8 KB | 02.2023

Notice

Safety instructions for electromechanical meters

Multilingual: German, English, French, Italian, Spanish
PDF ∼ 147,7 KB | 04.2015
