Pulse counter electromechanical
K66
|
|

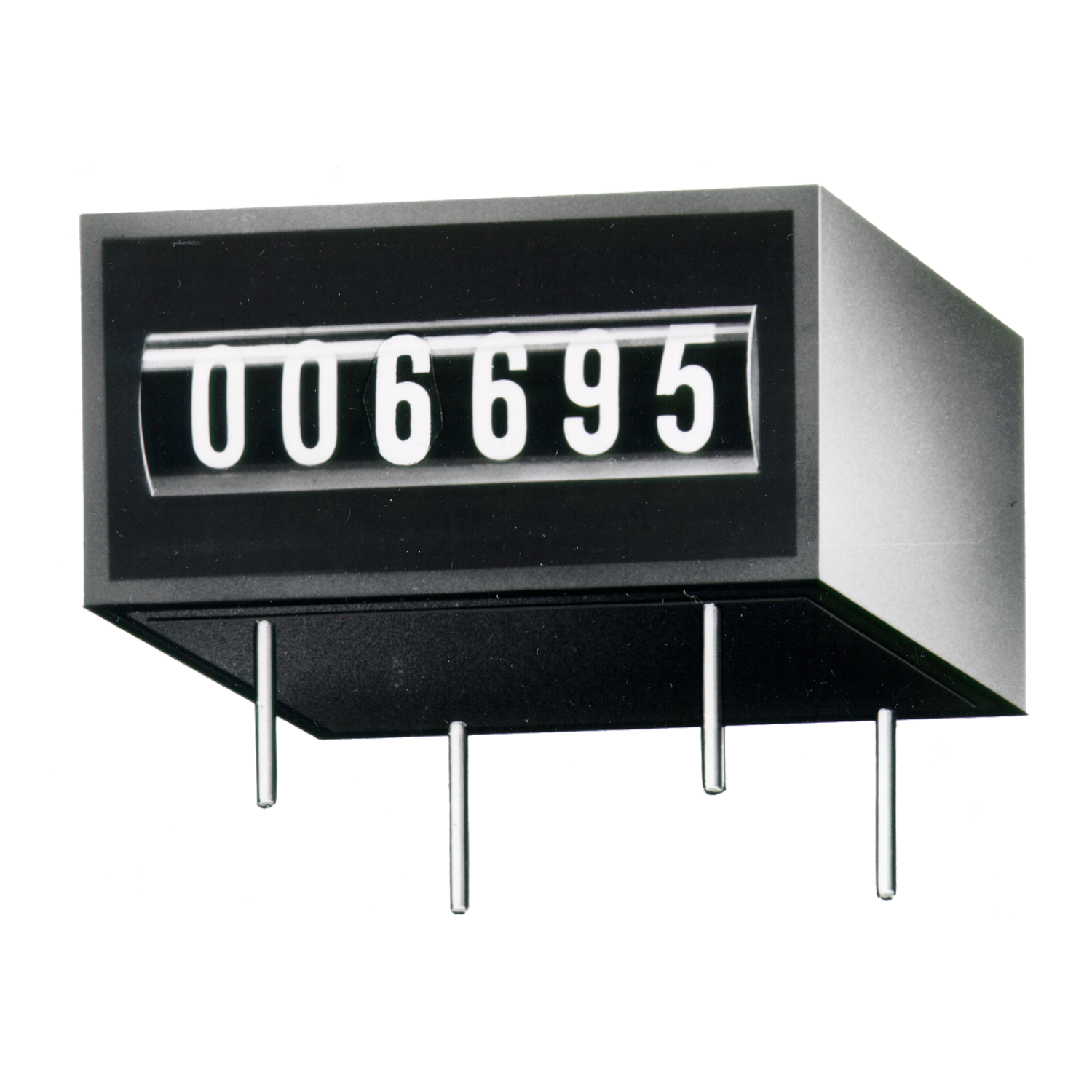

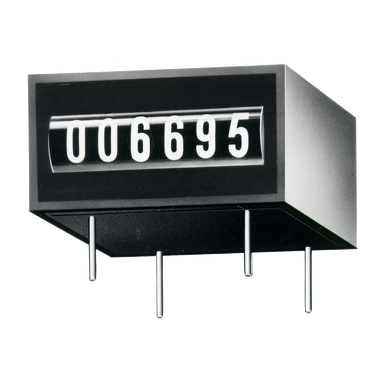

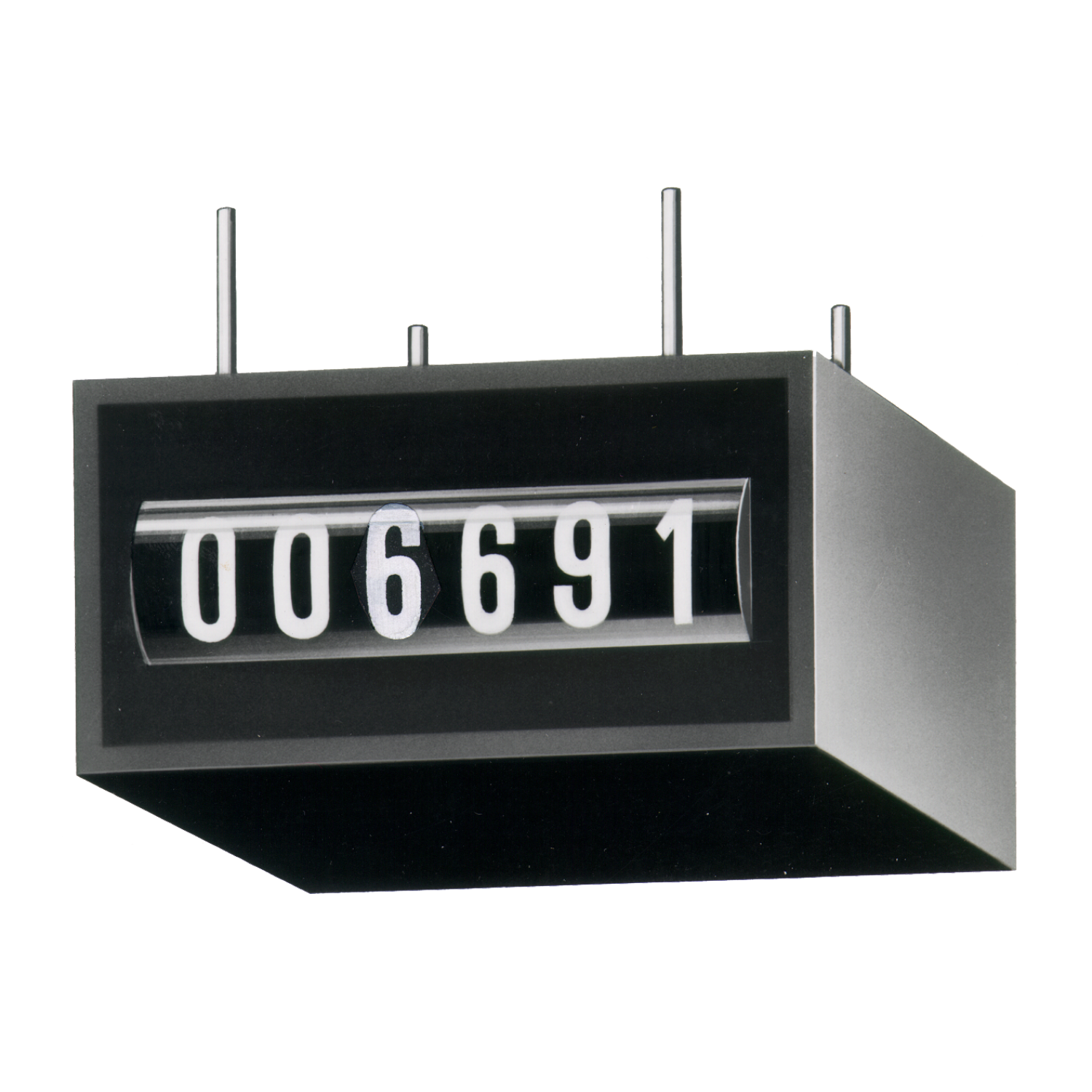

Micro pulse counter, 6-digit, resistant to magnetism.
The micro totalizer K 66 (6-digit) have a very high shock resistance and cannot be magnetically influenced by the patented ACR counting system. As built-in and print meters, it can be used in various application areas where a high level of protection against manipulation is required.| Mechanical | |
|---|---|
| Model | electromechanical |
| Dimension 1 |
25 x 13,8 mm 25,2 x 31 mm 30 x 20 mm | 27 x 14 mm |
| Protection level |
IP65 |
| Working temperature | -10°C °C ... +60°C °C |
| Weight | 11 g |
(1) Front panel size | Panel cut-out
| Electrical | |
|---|---|
| Power supply |
3 V DC 4,5 V DC 5 V DC 6 V DC 12 V DC 24 V DC |
Properties
Benefits
Applications
General quantity counting, photocopying machines, electricity meters, goods and gambling machines, coin-operated machines, washing machines, alarm systems, medical technology, heat quantity measurement
- Not magnetically influenced, because moving parts are made of plastic or non-ferrous metal (patented system)
- Highest shock resistance, as a counter-rotating movement is required, ACR system (Air Coil Reverse patented)
- Low power consumption; suitable for battery operation
- Very compact design, large digits
- Various reading options
Benefits
- Machine solderable and washable
- High IP65 protection
- Long service life
- Retains value in the event of power failure
Applications
General quantity counting, photocopying machines, electricity meters, goods and gambling machines, coin-operated machines, washing machines, alarm systems, medical technology, heat quantity measurement
| Product Certificates | ||
|---|---|---|
|
K66 / K67 - Report PDF ∼ 243,2 KB | 10.2014 |
