Encoders, bearingless encoders and motor feedback systems
Rotative speed measurement and position detection. Optical or magnetic. Incremental or absoluteThis view contains new products
Encoders found: 174

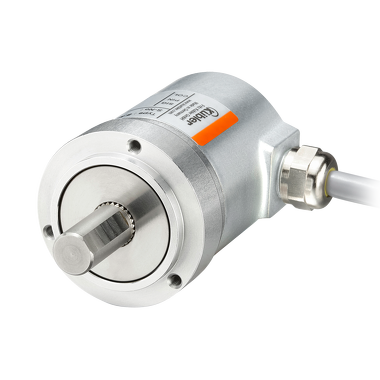

Sendix M3661R
Energy Harvesting Technology: Electronic multiturn encoders – extremely robust!
- Standalone operation in emergency
- Particularly resistant
- Magnetic – robust
- Dimension
Ø 36 mm
- Shaft type
-
Max 10 mm shaft, with flat surface
Max 1/4" shaft, with flat surface

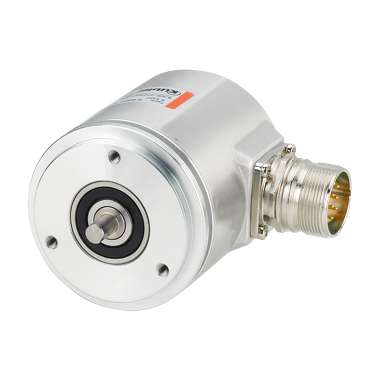

5803
High temperature up to max. 110°C
- Heat resistant
- High speed
- Reliable
- Dimension
Ø 58 mm
- Resolution
-
5.000 ppr incremental
- Shaft type
-
Max 10 mm shaft, with flat surface
Max 3/8" shaft, with flat surface

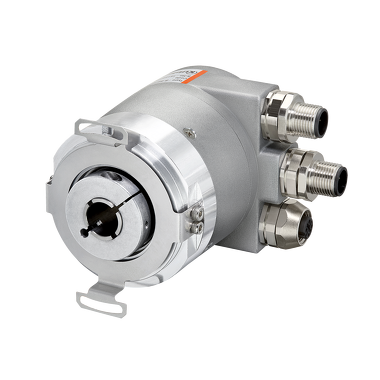

Sendix 5878
For field bus communication: Encoders with PROFIBUS DP interface.
- Particularly resistant
- Reliable
- Latest encoder profile
- Dimension
Ø 58 mm
- Resolution
-
16 bits singleturn
- Shaft type
-
Max 1/2" hollow shaft, blind hole
Max 15 mm hollow shaft, blind hole
Sendix M5861
Energy Harvesting Technology: Electronic multiturn encoders.
- With 58 mm flange
- Particularly resistant
- Magnetic – robust
- Dimension
Ø 58 mm
- Resolution
-
16 bits multiturn
- Shaft type
-
Max 10 mm shaft, with flat surface
Sendix 7168
Field bus communication in mining: Encoders with M2 mining approval.
- Pressure-resistant enclosure
- Suitable aboveground/underground
- Latest encoder profile
- Dimension
Ø 70 mm
- Resolution
-
16 bits singleturn
12 bits multiturn
- Shaft type
-
Max 10 mm shaft, with flat surface
Max 12 mm shaft, with keyway
Sendix 7068
Explosion protection and field bus communication: Encoders with ATEX / IECEx approval.
- Pressure-resistant enclosure
- Particularly resistant
- Latest encoder profile
- Dimension
Ø 70 mm
- Resolution
-
16 bits singleturn
12 bits multiturn
- Shaft type
-
Max 10 mm shaft, with flat surface
Max 12 mm shaft, with keyway
Sendix M5868
Energy Harvesting Technology: Electronic multiturn encoders.
- With 58 mm flange
- Particularly resistant
- Magnetic – robust
- Dimension
Ø 58 mm
- Resolution
-
14 bits singleturn
29 bits multiturn
- Shaft type
-
Max 10 mm shaft, with flat surface
5804
Sine output with reference signal – for drive technology.
- Reliable
- Resistant
- High speed
- Dimension
Ø 58 mm
- Resolution
-
5.000 ppr incremental
- Shaft type
-
Max 10 mm shaft, with flat surface
Sendix 7063
Explosion protection: Encoders with ATEX / IECEx approval.
- Pressure-resistant enclosure
- Also for maritime areas
- Particularly resistant
- Dimension
Ø 70 mm
- Resolution
-
17 bits singleturn
12 bits multiturn
- Shaft type
-
Max 10 mm shaft, with flat surface
Max 12 mm shaft, with keyway
Sendix 5853FS3
Safe position acquisition up to SIL3/PLe.
- For safe drive technology
- Certified solution
- Reliable
- Dimension
Ø 58 mm
- Resolution
-
2.048 ppr incremental
17 bits singleturn
- Shaft type
-
Max 10 mm shaft, with flat surface
Max 10 mm shaft, with feather key
Sendix M3683
Energy Harvesting Technology: Electronic multiturn encoders.
- Resistant
- Wear-free
- Magnetic – robust
- Dimension
Ø 36 mm
- Resolution
-
14 bits singleturn
24 bits multiturn
- Shaft type
-
Max 10 mm hollow shaft, blind hole
Max 1/4" hollow shaft, blind hole
Sendix 5873FS2
Safe position acquisition up to SIL2/PLd.
- For safe drive technology
- Certified solution
- Reliable
- Dimension
Ø 58 mm
- Resolution
-
2.048 ppr incremental
17 bits singleturn
- Shaft type
-
Max 14 mm hollow shaft, through
Sendix M3663
Energy Harvesting Technology: Electronic multiturn encoders.
- Resistant
- Wear-free
- Magnetic – robust
- Dimension
Ø 36 mm
- Resolution
-
14 bits singleturn
24 bits multiturn
- Shaft type
-
Max 10 mm shaft, with flat surface
Max 1/4" shaft, with flat surface
2430
Ideal for the tightest installation spaces: Magnetic miniature encoders.
- Magnetic – robust
- Ideal for small devices
- Robust bearing structure
- Dimension
Ø 24 mm
- Resolution
-
256 ppr incremental
- Shaft type
-
Max 6 mm shaft, round
Max 5 mm shaft, with flat surface
Sendix 5814FS2
Functional safety: safe speed measuring up to SIL2//PLd.
- For safe drive technology
- Certified solution
- Reliable
- Dimension
Ø 58 mm
- Resolution
-
2.048 ppr incremental
- Shaft type
-
Max 10 mm shaft, with flat surface
Max 10 mm shaft, with feather key
