Encoders, bearingless encoders and motor feedback systems
Rotative speed measurement and position detection. Optical or magnetic. Incremental or absoluteThis view contains new products
Encoders found: 174

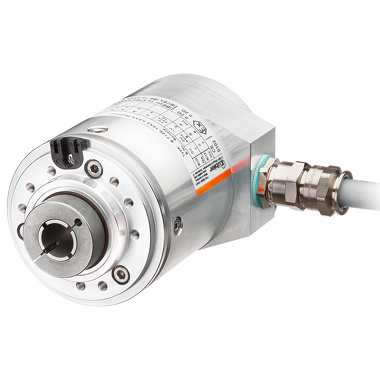

Sendix 7120
Safe for mining: Encoders with M2 mining approval.
- Pressure-resistant enclosure
- Suitable aboveground/underground
- Particularly resistant
- Dimension
Ø 70 mm
- Resolution
-
5.000 ppr incremental
- Shaft type
-
Max 14 mm hollow shaft, blind hole
Sendix 7100
Safe for mining: Encoders with M2 mining approval.
- Pressure-resistant enclosure
- Suitable aboveground/underground
- Particularly resistant
- Dimension
Ø 70 mm
- Resolution
-
5.000 ppr incremental
- Shaft type
-
Max 10 mm shaft, with flat surface
Max 12 mm shaft, with keyway

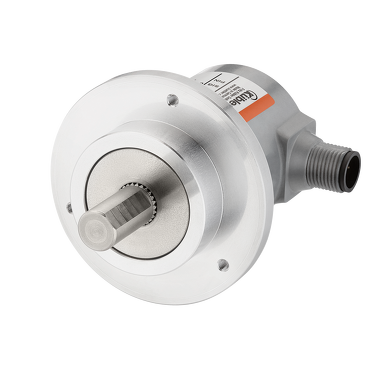

Sendix 5814
Highly interpolatable – ideal for drive technology.
- Very high signal quality
- Suitable as motor feedback
- Reliable
- Dimension
Ø 58 mm
- Resolution
-
2.048 ppr incremental
- Shaft type
-
Max 10 mm shaft, with flat surface
Sendix 7073
Explosion protection: Encoders with ATEX / IECEx approval.
- Pressure-resistant enclosure
- Also for maritime areas
- Particularly resistant
- Dimension
Ø 70 mm
- Resolution
-
17 bits singleturn
- Shaft type
-
Max 14 mm hollow shaft, blind hole
Sendix 7163
Safe for mining: Encoders with M2 mining approval.
- Suitable aboveground/underground
- Pressure-resistant enclosure
- Particularly resistant
- Dimension
Ø 70 mm
- Resolution
-
17 bits singleturn
12 bits multiturn
- Shaft type
-
Max 10 mm shaft, with flat surface
Max 12 mm shaft, with keyway
Sendix 7168
Field bus communication in mining: Encoders with M2 mining approval.
- Pressure-resistant enclosure
- Suitable aboveground/underground
- Latest encoder profile
- Dimension
Ø 70 mm
- Resolution
-
16 bits singleturn
12 bits multiturn
- Shaft type
-
Max 10 mm shaft, with flat surface
Max 12 mm shaft, with keyway
Sendix 7158
Field bus communication in mining: Encoders with M2 mining approval.
- Pressure-resistant enclosure
- Suitable aboveground/underground
- Latest encoder profile
- Dimension
Ø 70 mm
- Resolution
-
16 bits singleturn
- Shaft type
-
Max 10 mm shaft, with flat surface
Max 12 mm shaft, with keyway

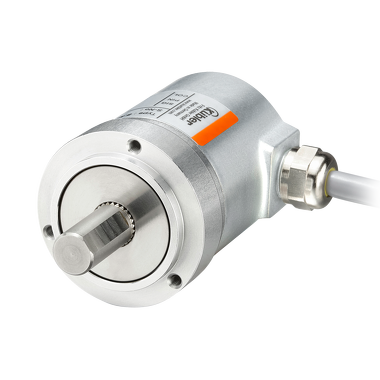

Sendix M3668R
Energy Harvesting Technology: Electronic multiturn encoders – extremely robust!
- Standalone operation in emergency
- Particularly resistant
- Magnetic – robust
- Dimension
Ø 36 mm
- Shaft type
-
Max 10 mm shaft, with flat surface
Max 1/4" shaft, with flat surface
Sendix 7188
Field bus communication in mining: Encoders with M2 mining approval.
- Pressure-resistant enclosure
- Suitable aboveground/underground
- Latest encoder profile
- Dimension
Ø 70 mm
- Resolution
-
16 bits singleturn
12 bits multiturn
- Shaft type
-
Max 14 mm hollow shaft, blind hole
Sendix 7188
Field bus communication in mining: Encoders with M2 mining approval.
- Pressure-resistant enclosure
- Suitable aboveground/underground
- Latest encoder profile
- Dimension
Ø 70 mm
- Resolution
-
16 bits singleturn
12 bits multiturn
- Shaft type
-
Max 14 mm hollow shaft, blind hole
Sendix 7183
Safe for mining: Encoders with M2 mining approval.
- Pressure-resistant enclosure
- Suitable aboveground/underground
- Particularly resistant
- Dimension
Ø 70 mm
- Resolution
-
17 bits singleturn
12 bits multiturn
- Shaft type
-
Max 14 mm hollow shaft, blind hole
Sendix 7178
Field bus communication in mining: Encoders with M2 mining approval.
- Pressure-resistant enclosure
- Suitable aboveground/underground
- Latest encoder profile
- Dimension
Ø 70 mm
- Resolution
-
16 bits singleturn
- Shaft type
-
Max 14 mm hollow shaft, blind hole
Sendix 7178
Field bus communication in mining: Encoders with M2 mining approval.
- Pressure-resistant enclosure
- Suitable aboveground/underground
- Latest encoder profile
- Dimension
Ø 70 mm
- Resolution
-
16 bits singleturn
- Shaft type
-
Max 12 mm hollow shaft, blind hole
Sendix 7173
Safe for mining: Encoders with M2 mining approval.
- Pressure-resistant enclosure
- Suitable aboveground/underground
- Particularly resistant
- Dimension
Ø 70 mm
- Resolution
-
17 bits singleturn
- Shaft type
-
Max 14 mm hollow shaft, blind hole
Sendix 7078
Explosion protection and field bus communication: Encoders with ATEX / IECEx approval.
- Pressure-resistant enclosure
- Particularly resistant
- Latest encoder profile
- Dimension
Ø 70 mm
- Resolution
-
16 bits singleturn
- Shaft type
-
Max 14 mm hollow shaft, blind hole
