Draw-wire encoders

A50

  • Encoder freely selectable
  • Precise measuring
  • High dynamics
  • Simple mounting
  • Encoder freely selectable
  • Max. measuring length 1,25 m
  • Speed 10 m/s
  • max. linearity ±0,02 %
Analog 0–10 V
CANopen
Push-pull
TTL / RS422
SAE J1939
SSI, binary
BiSS
IO-Link

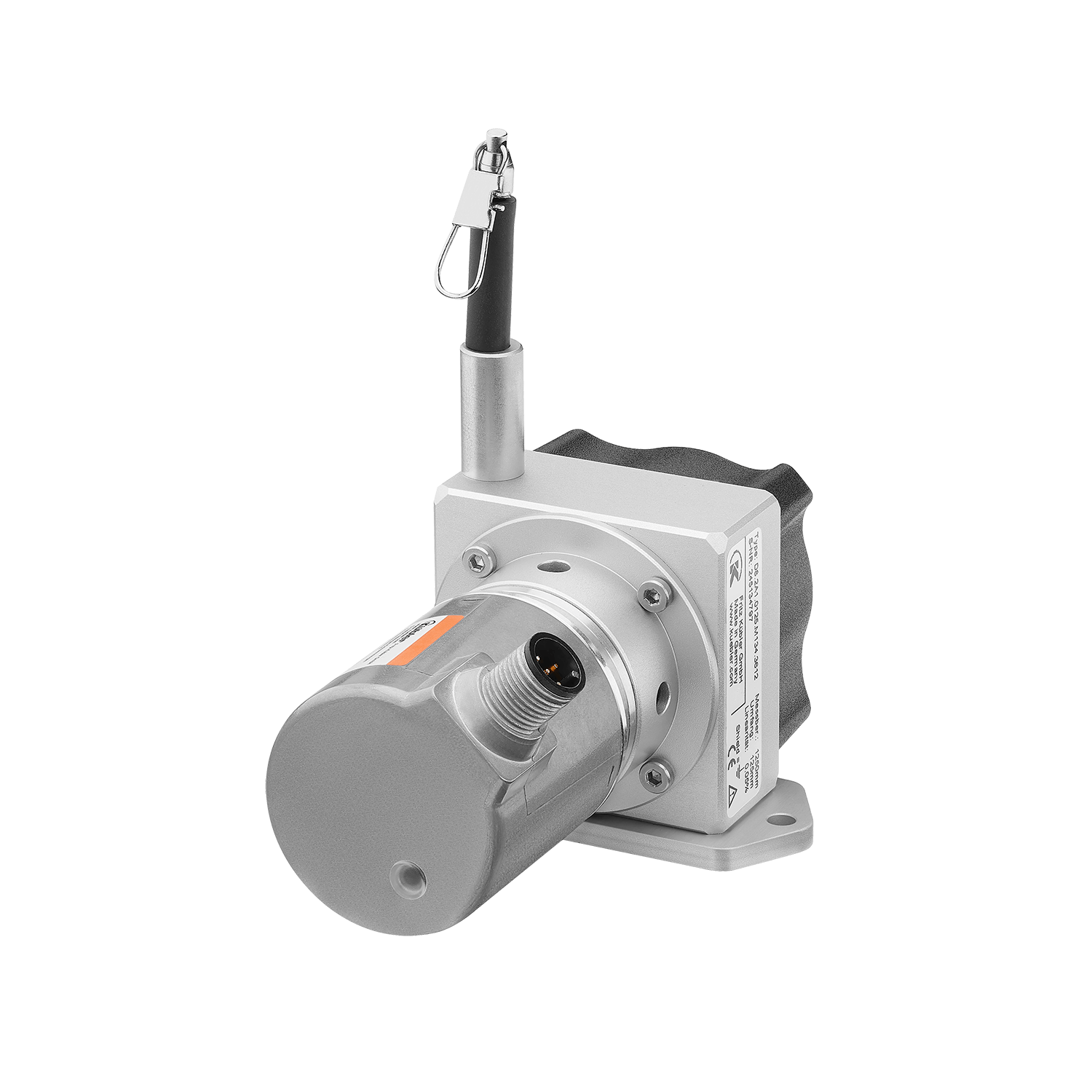

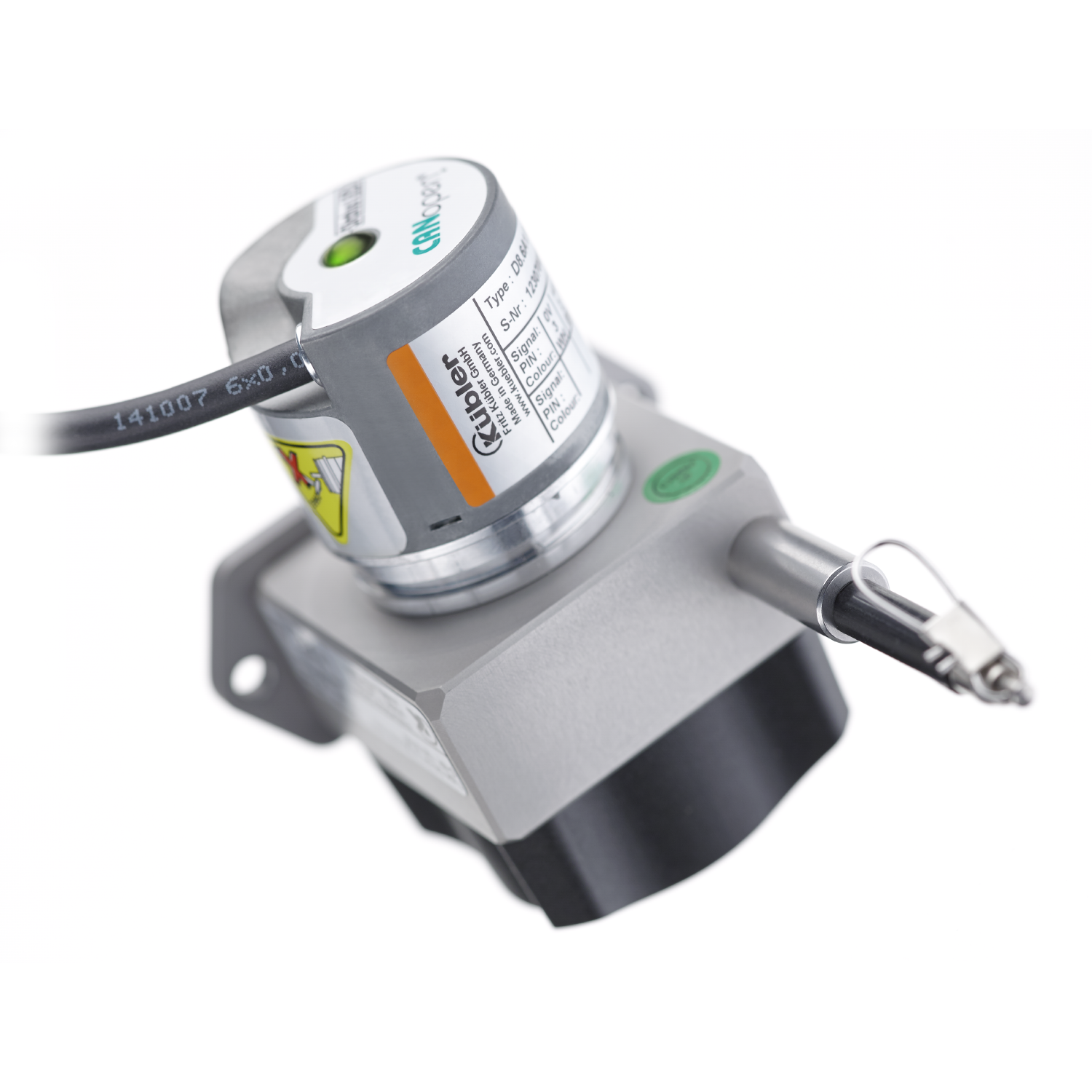

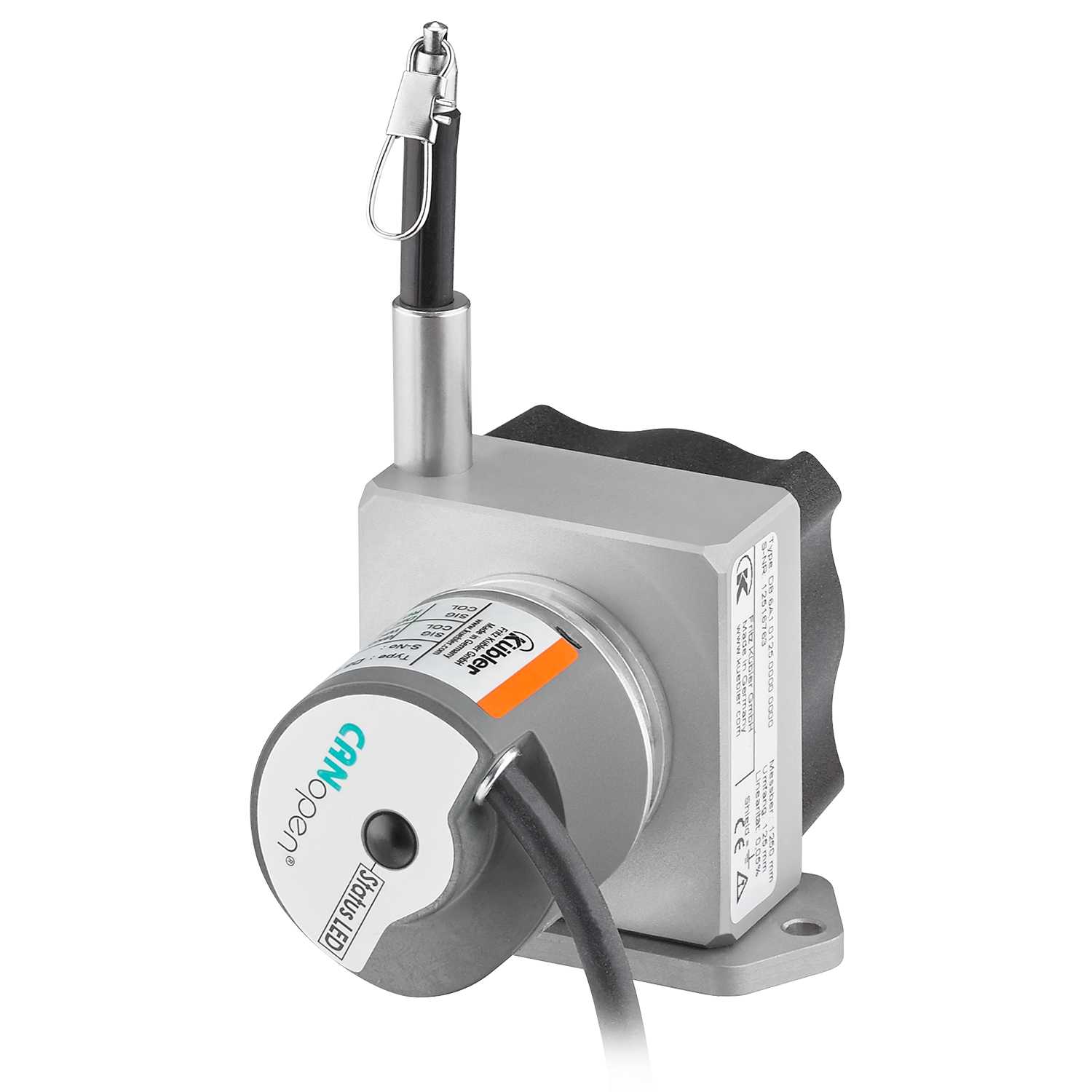

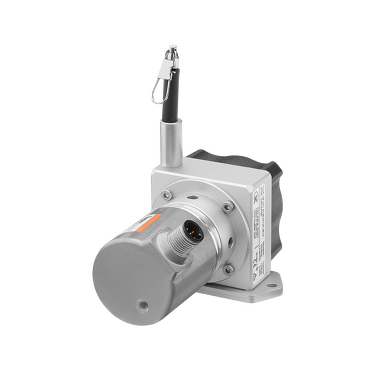

Draw-wire encoder - the compact one for the highest requirements.

The draw-wire mechanics A50 boast both a compact design and high dynamics.
The draw-wire mechanics may be equipped with encoders with an analog, incremental or absolute output. The maximum measuring length is 1.25 m.

Mechanical
Measuring system Draw-wire encoders
Measuring length 0.25 m
0.5 m
1,25 m
Speed 10 m/s
Dimension 50 mm x 50 mm x 99 mm
Working temperature -20 °C ... +85 °C
Protection level IP65
Weight 330 g
Electrical
max. linearity ±0,02 %
Interfaces Analog 0...10 V
Analog 4–20 mA
CANopen
Gegentakt
TTL / RS422
SAE J1939
Potentiometer output
SSI, binär
BiSS
IO-Link
Power supply 12...30 V DC
Robust
  • The titanium-anodized aluminum housing and the stainless steel wires allow for using the mechanics even in harsh conditions.
  • Wear-free wire exit thanks to special plain bearing guide.

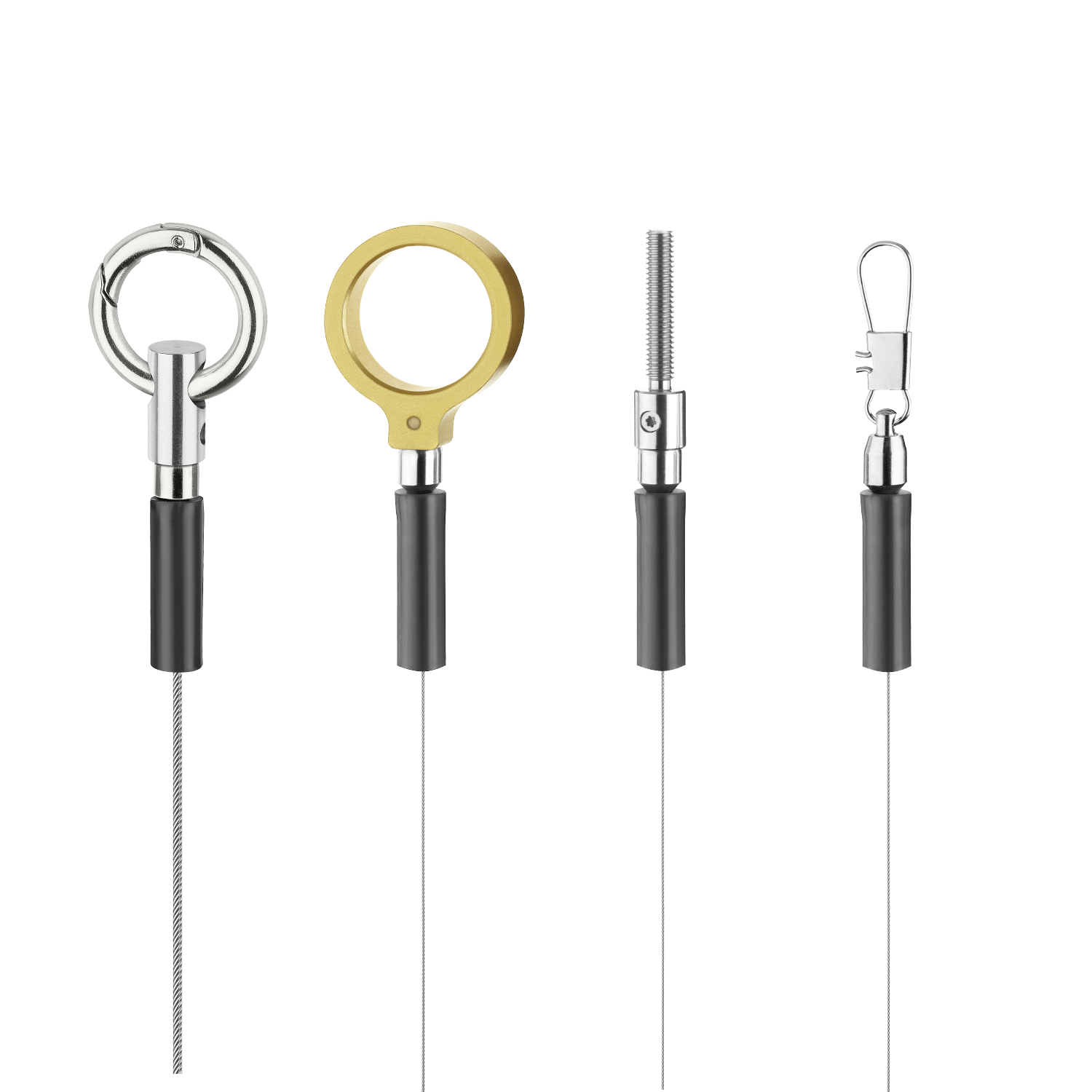

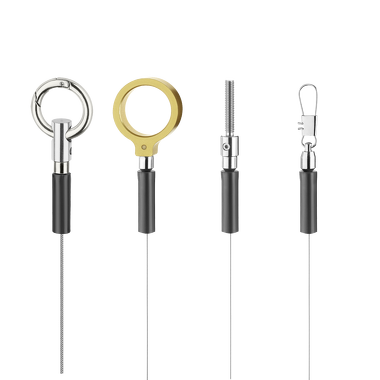

  • Various wire types and wire fastenings.
Versatile
  • High traverse speed, up to 10 m/s.
  • High acceleration, up to 300 m/s².

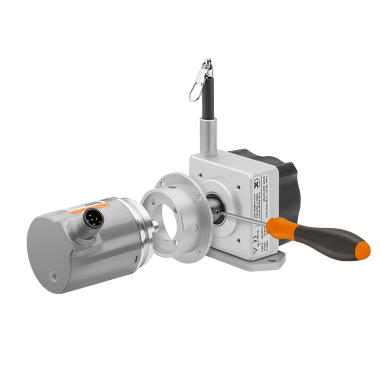

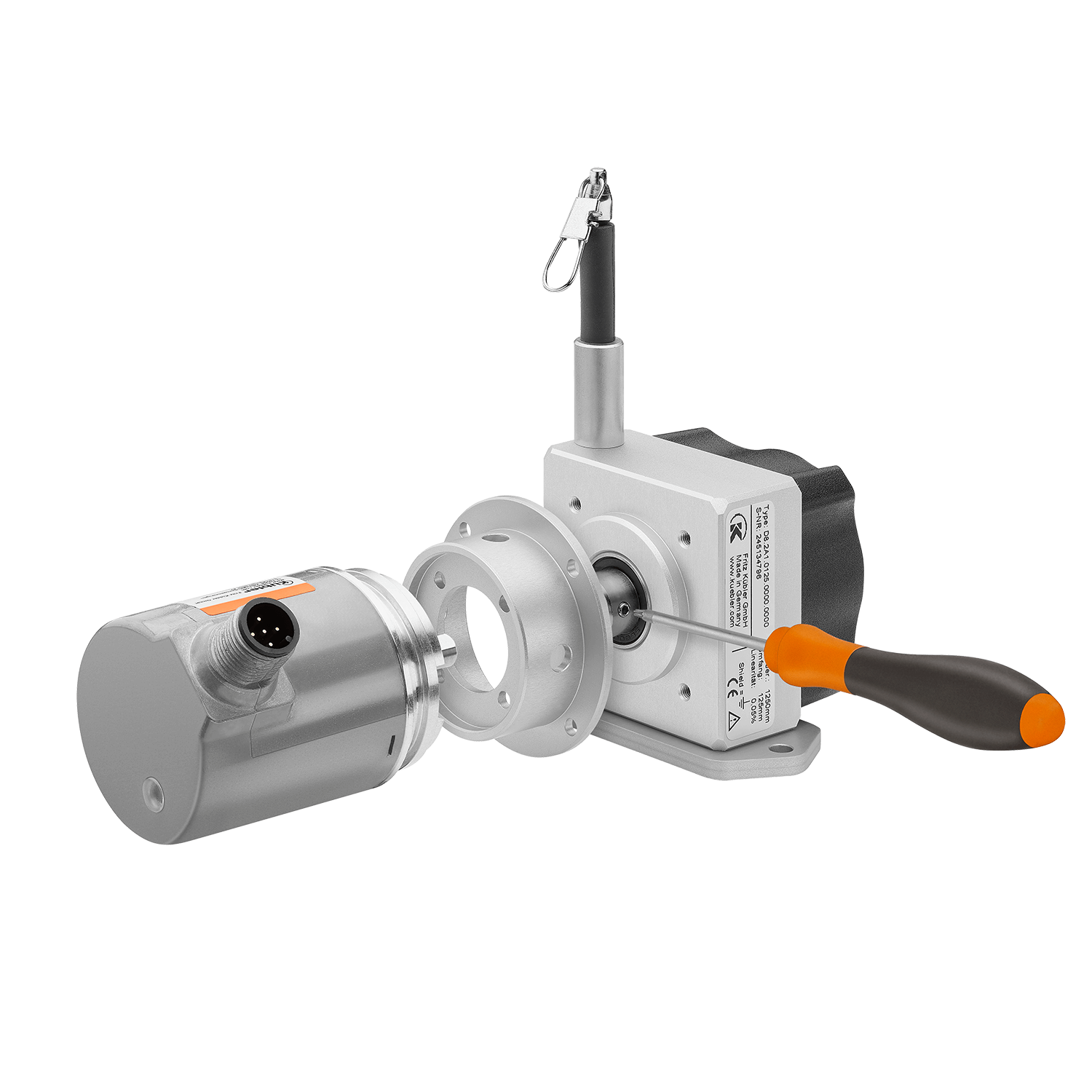

  • Quick fastening by means of 2 screws.
  • Various connection possibilities available.
  • Scalable analog output with limit switch function.
Data sheet

A50

PDF ∼ 1,0 MB | 08.2024
DE
EN
FR
Installation manual

Safety Advice for Draw-wire encoders

Multilingual: German, English, French, Italian
PDF ∼ 160,6 KB | 05.2017

Manual

A50 / B80 / C120 / D135

PDF ∼ 890,5 KB | 05.2024
DE
EN
FR
Safety characteristics

A50 MTTFd

Multilingual: German, English
PDF ∼ 153,2 KB | 06.2019

A50 MTTFd

Multilingual: German, English
PDF ∼ 186,2 KB | 06.2019

Declaration of conformity

A50 / B80 / C120 / D135 CE

Multilingual: German, English, French
PDF ∼ 351,9 KB | 04.2016

Device file

Sendix M36x8 ST CANopen

ZIP ∼ 21,7 KB | 03.2017

Sendix M36x8 MT CANopen

ZIP ∼ 13,8 KB | 05.2021

Sendix F36x8 CANopen

ZIP ∼ 1,2 MB | 12.2022

Sendix M58x8 MT CANopen

ZIP ∼ 678,9 KB | 12.2022

Mechanical CAD / STEP

A50

ZIP ∼ 3,4 MB | 01.2015

Brochures

Solutions for Mobile Automation

PDF ∼ 6,8 MB | 05.2024
DE
EN
FR
Flyer

Portfolio overview Draw-wire encoders

Multilingual: German, English
PDF ∼ 221,1 KB | 11.2019

Accessories

Guide pulley

Guide pulley

With guide pulleys, linear movements can also be directed around obstacles. This not only increases their flexibility but can also compensate for installation tolerances. Idler pulleys can also act to clean off dirt and break ice.

Technical data:
  • Installation angle (anodized aluminum)
  • Guide pulley (plastic POM)
  • Ball bearing (Type 696-2R5)
Scope of delivery:
  • 2 x countersunk screws for side fixing
  • 2 x Allen screws for fixing on a flat surface
8.0000.7000.0045
Mechanical CAD / STEP
8.0000.7000.0045

Extension cable steel

Extension cable steel

With extension cables, the actual measuring range can be used without any loss of resolution. We offer numerous extension cables in our portfolio for this purpose.
5 m 8.0000.7000.0048
0,5 m 8.0000.7000.0051
1 m 8.0000.7000.0052
6,5 m 8.0000.7000.0053
3 m 8.0000.7000.0055

Cables and connectors

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin PVC Ø 5,5 mm ± 0,2 mm
5 x 0,25 mm2
05.00.6081.2211.XXXM

Data sheet
M12 cordset, PVC, socket, 5-pin, A-coded, open end
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin
05.B-8151-0/9

Data sheet
M12 socket, 5-pin
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin
05.B-8251-0/9

Data sheet
M12 socket, angled, 5-pin, A-coded
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin
8.0000.5116.0000

Data sheet
M12 socket, 5-pin, A-coded
DE EN FR

Cable 5 x 0,14 mm<sup>2</sup>  ,

Cable 5 x 0,14 mm2 ,

Unassembled by the meter

PVC Ø 4,7 mm ± 0,2 mm
5 x 0,14 mm2
8.0000.6300.XXXX
Data sheet
Cable, 5-core, PVC
DE EN FR

Cable 5 x 0,75 mm<sup>2</sup>  ,

Cable 5 x 0,75 mm2 ,

Unassembled by the meter

TPE Ø 7,5 mm ± 0,3 mm
5 x 0,75 mm2
8.0000.6600.XXXX
Data sheet
Cable, 5-core, PE-X
DE EN FR
