Draw-wire encoders

C60

  • Different housing types
  • Redundant sensors
  • Thick V4A measuring cable up to 1.0 mm
  • High protection up to IP69k
  • Different housing types
  • Redundant sensors
  • Max. measuring length 4 m
  • Speed 3 m/s
  • max. linearity ±0,1 %
Analog 0–10 V
CANopen

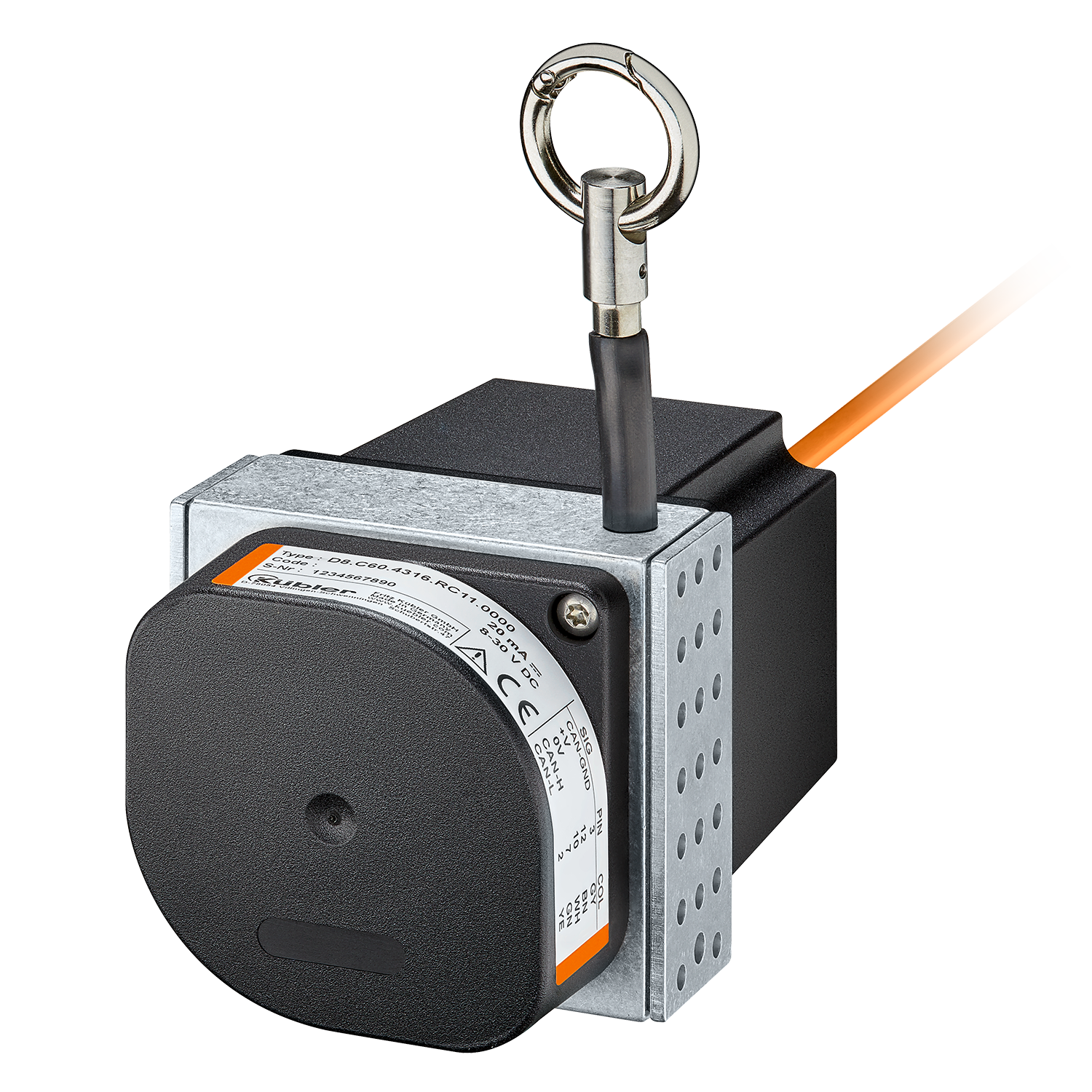

Draw wire encoder - suitable for the harshest environments.

With its extremely robust design, the high protection class IP69k and the wide temperature range up to -40 °C ... +85 °C the draw-wire encoders C60 are specially developed for outdoor applications.
Their flexibility and adaptability reflects in the wide range of housing and wire types, the long measuring range and the various interfaces. The possibility of redundancy must be particularly pointed out.

Mechanical
Measuring system Draw-wire encoders
Measuring length 1 m
1,5 m
2 m
2,5 m
3 m
3,5 m
4 m
Speed 3 m/s
Dimension 60 mm x 60 mm x 107 mm
Connection types Axial cable
M23 connector axial
Working temperature -40 °C ... +85 °C
Weight 420 g
Electrical
max. linearity ±0,1 %
Interfaces Analog 0...10 V
Analog 4–20 mA
CANopen
Potentiometer output
Power supply 12...30 V DC
Robust
  • Protection level up to IP69k and wide temperature range up to -40 °C ... +85 °C.
  • The titanium-anodized aluminum housing and the stainless steel wires allow using the mechanics even in harsh conditions.
  • Wire diameter (stainless steel, V4A) up to ø 1 mm - ideal for outdoor applications.
Versatile
  • Measuring length up to 4 m.
  • Redundant outputs (mA, V, R, CANopen).

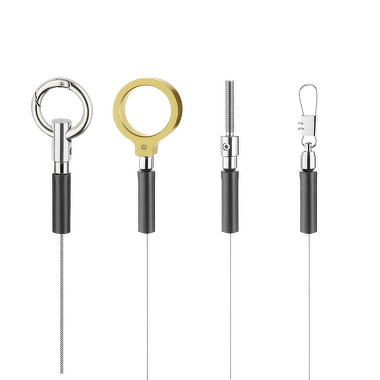

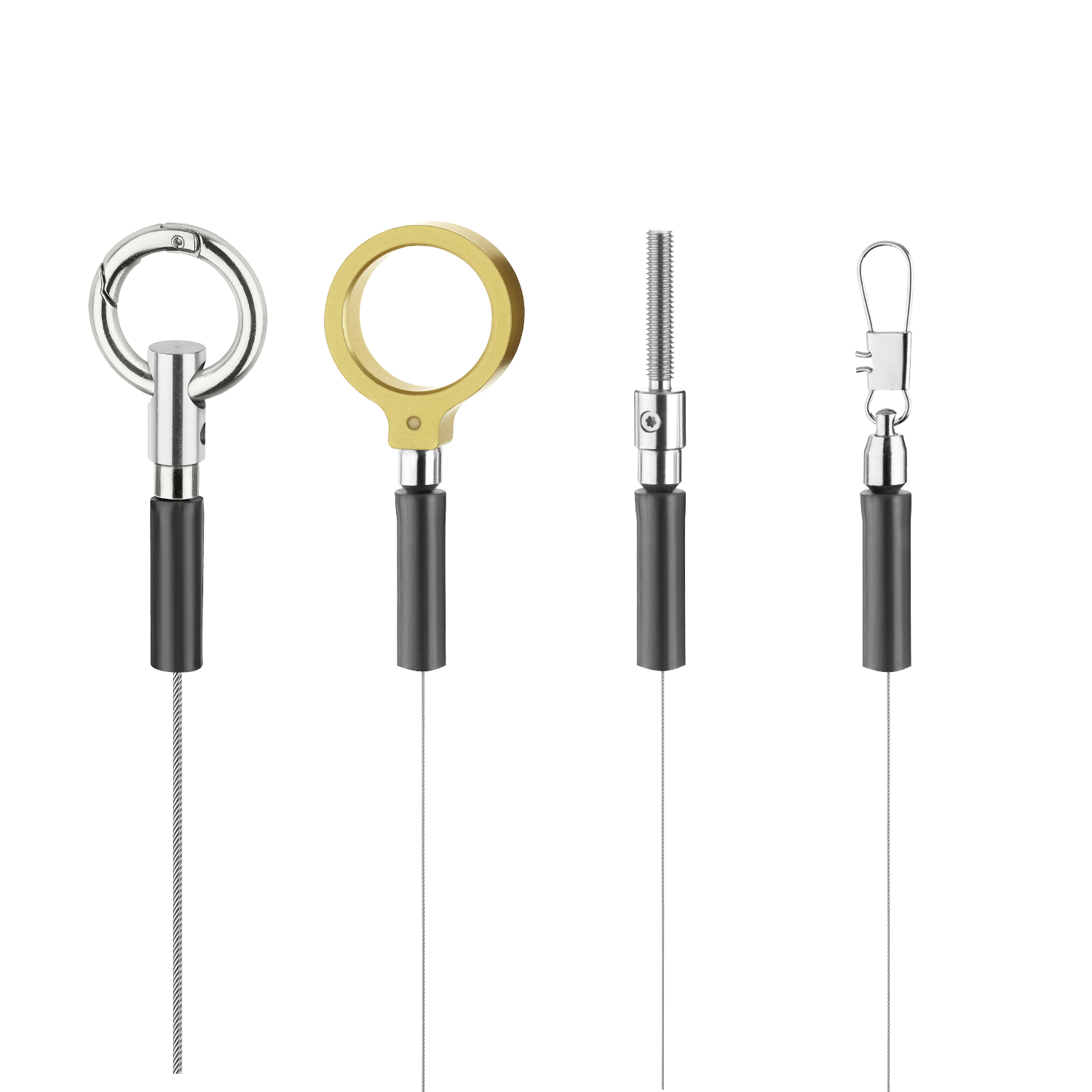

  • The right measuring wire and the right wire fastening for every application.
  • Linearity up to ±0.1 % of the measuring range.
  • Various constructions: open, closed housing or housing with perforated sheet steel cover.
Data sheet

C60

PDF ∼ 819,6 KB | 08.2024
DE
EN
FR
Installation manual

Safety Advice for Draw-wire encoders

Multilingual: German, English, French, Italian
PDF ∼ 160,6 KB | 05.2017

Manual

C60 / D120 - CANopen

PDF ∼ 389,3 KB | 05.2018
DE
EN
FR

C60 - analog

PDF ∼ 133,5 KB | 05.2018
DE
EN
Safety characteristics

C60 MTTFd

Multilingual: German, English
PDF ∼ 244,3 KB | 06.2019

Declaration of conformity

C60 / D120 CE

Multilingual: German, English, French
PDF ∼ 347,9 KB | 07.2018

Device file

C60 / D120

ZIP ∼ 2,6 KB | 04.2019

Mechanical CAD / STEP

C60

ZIP ∼ 1,8 MB | 05.2018

Brochures

Solutions for Mobile Automation

PDF ∼ 6,8 MB | 05.2024
DE
EN
FR
Flyer

Portfolio overview Draw-wire encoders

Multilingual: German, English
PDF ∼ 221,1 KB | 11.2019

Accessories

Guide pulley

Guide pulley

With guide pulleys, linear movements can also be directed around obstacles. This not only increases their flexibility but can also compensate for installation tolerances. Idler pulleys can also act to clean off dirt and break ice.

Technical data:
  • Installation angle (anodized aluminum)
  • Guide pulley (plastic POM)
  • Ball bearing (Type 696-2R5)
Scope of delivery:
  • 2 x countersunk screws for side fixing
  • 2 x Allen screws for fixing on a flat surface
8.0000.7000.0045
Mechanical CAD / STEP
8.0000.7000.0045

Cables and connectors

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
HTL
TTL / RS422
SinCos
Open Collector
SSI
BiSS
Female connector 8-pin PVC Ø 6,7 mm ± 0,2 mm
8 x 0,25 mm2
05.00.6041.8211.XXXM

Data sheet
M12 cordset, PVC, socket, 8-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
HTL
TTL / RS422
SinCos
Open Collector
SSI
BiSS
Female connector 8-pin PUR Ø 6,3 mm ± 0,2 mm
8 x 0,25 mm2
05.00.6051.8211.XXXM

Data sheet
M12 cordset, PUR, socket, 8-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
IO-Link
Power supply
Female connector 4-pin PUR Ø 4,7 mm ± mm
4x0,34 mm2
05.00.6061.6211.XXXM

Data sheet
M12 cordset, PUR, socket, 4-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin PVC Ø 5,5 mm ± 0,2 mm
5 x 0,25 mm2
05.00.6081.2211.XXXM

Data sheet
M12 cordset, PVC, socket, 5-pin, A-coded, open end
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin
05.B-8151-0/9

Data sheet
M12 socket, 5-pin
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin
05.B-8251-0/9

Data sheet
M12 socket, angled, 5-pin, A-coded
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Analog ±10 V
IO-Link
Power supply
Female connector 4-pin
05.B8141-0

Data sheet
M12 socket, 4-pin, A-coded
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Analog ±10 V
IO-Link
Power supply
Female connector 4-pin
05.B8241-0

Data sheet
M12 socket, angled, 4-pin, A-coded
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Analog ±10 V
HTL
TTL / RS422
SinCos
Open Collector
SSI
BiSS
Female connector 8-pin
05.CMB 8181-0

Data sheet
M12 socket, 8-pin, A-coded
DE EN FR
